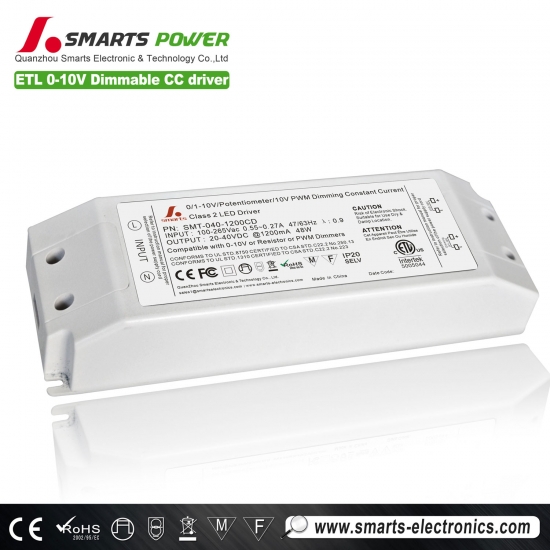

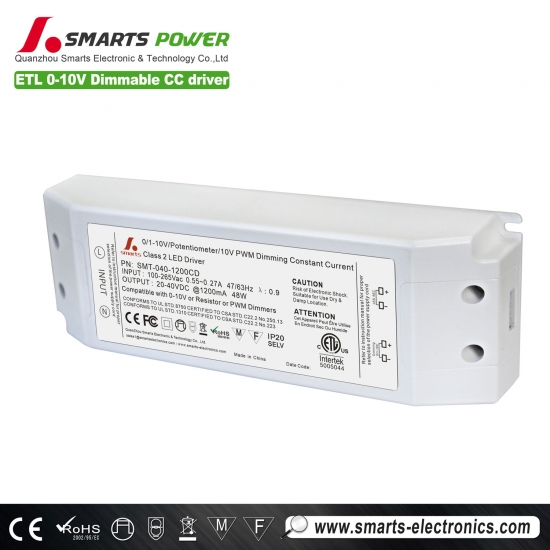

1200mA 48W 0-10V/PWM dimmable Constant Current LED driver
|
Model |
SMT-065-0700CD |
SMT-050-0900CD |
SMT-040-1050CD |
SMT-040-1200CD |
||
|
Output |
DC Current |
700mA |
900mA |
1050mA |
1200mA |
|
|
Current Accuracy |
±3% |
|||||
|
Voltage Range |
35-65V |
20-50V |
15-40V |
20-40V |
||
|
Rated power |
45W |
45W |
42W |
48W |
||
|
Input |
Voltage Range |
100～265VAC |
||||
|
Frequency Range |
47～63HZ |
|||||
|
PF(Typ.） |
PF>0.9 5 |
|||||
|
Full Load Efficiency（Typ） |
>86% |
>87% |
>87% |
>86% |
||
|
AC Current (Typ.） |
0.24A |
0.26A |
0.23A |
0.25A |
||
|
Leakage current |
﹤0.7mA/110-220VAC |
|||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||
|
Over voltage |
≦280VAC |
|||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|||||
|
Environme |
Working TEMP. |
-40～+50℃ |
||||
|
Working Humidity |
20～95%RH,non-condensing |
|||||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
|||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. IP40 |
||||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
|||||
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
|||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
|||||
|
Others |
Weight |
0.55Kg |
||||
|
Size |
180*60*34mm（L*W*H） |
|||||
|
packing |
Carton size: 355*215*215mm, Carton: 20pcs /CTN |
|||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110v~220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||||
 |
 |
 |
 |
Product parameters
|
Model
|
Input voltage(vAC) |
Working Frequency (Hz) |
Output voltage (vDC) |
Output Current (mA) |
Output
power |
Working Temp. |
IP rate |
| SMT-050-0900CD | 100-265vAC | 47~63Hz | 20-50V | 0-900mA | 45W | -40~50°C | IP67 |
| SMT-040-1050CD | 100-265vAC | 47~63Hz | 15-40V | 0-1050mA | 42W | -40~50°C | IP67 |
| SMT-040-1200CD | 100-265vAC | 47~63Hz | 20-40V | 0-1200mA | 48W | -40~50°C | IP67 |
Features
- Constant current design with high accuracy.
- International wide input voltage.
- Wattage: 15w-200w
- 8Hrs and 100% full load burn-in test.
- High reliability designing solution
- Cooling by free air convection
- Suitable for LED lighting and moving sign applications
- High efficiency,save energy ,protected environment
- High stability and low ripple, increase light efficiency and decrease light attenuation
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant current
- Passed high ,low temperature testing.
- Integrity protection,over loading, over voltage over current
Specifications
- dimming type: 0-10v/PWM dimmable
- wire requirements:18AWG*20CM (waterproof type)
- 3 years warranty
- (We promise to replace new ones to you if there is any defective happen during the warranty period)
Environment
- Working Temperature : -40 ~ +50°C
- Working Humidity : 20 ~ 95% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 5G 15min./1cycle, period for 72min. each along X, Y, Z axes
Safety
- Safety Standards : EN61347-1 EN61347-2-13. IP40
- Withstand Voltage : I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC
- Isolation Resistance : I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH
- EMC Emission : Compliance to EN55015,EN61000-3-2 (>50%Load)
- EMC Immunity : Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level
Application
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
Packaging & Shipping
| Packing | |||||||
| N.W./pcs | G.W/ctn | Qty/ctn | Carton Size(mm) | ||||
| 1200mA 48W 0-10V/PWM dimmable Constant Current LED driver | |||||||
| 900g/pcs | 11kg/ctn | 10pcs | 324*298*188mm | ||||
