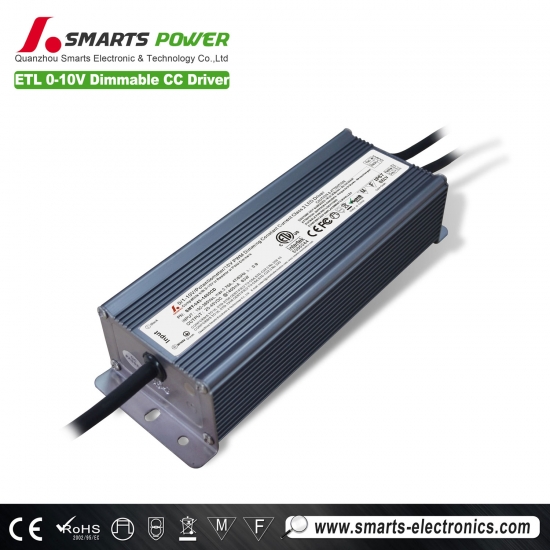

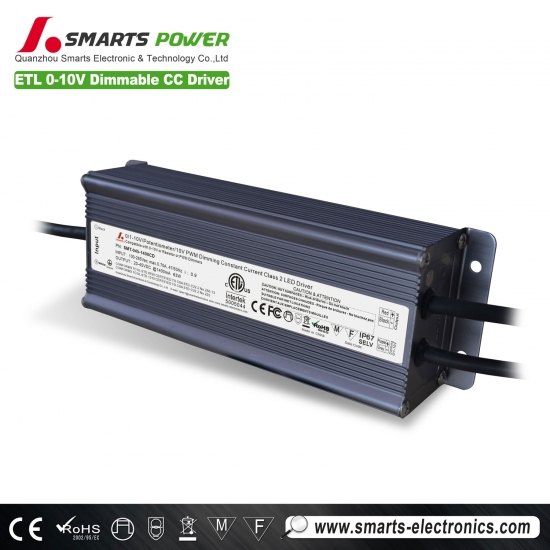

1400mA 63W 0-10V/PWM dimmable Constant Current LED driver
Product Description
|
Model |
Input voltage(vAC) |
Working Frequency (Hz) |
Output voltage
(vDC) |
Output Current |
power (Watt) |
Working.
Temp |
Protection grade |
|
SMT-040-1400CD |
100-265V |
47~63Hz |
15-40V |
1400mA |
56W |
-40~50°C |
IP67 |
Features
- Input range :100-265VAC
- Built-in PFC function
- Efficiency > 84% / PF>0.9
- Protections:Short circuit/over Voltage
- Fully isolated aluminum housing
- Easy installation
- Cooling by free air convection
- Work with leading edge and trailing edge TRIAC dimmers
- Strong compatibility, flicker-free dimming
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
- 3 years warranty
- Lifespan:(MTBF)50,000 hours
Protection
- Short Circuit: Hiccup mode, recovers automatically after fault condition
- Over voltage: <270VAC 0r =270VAC
Environment parameter
- Working temperature: -40~+60℃
- Working humidity:20~90%RH,non-condensing
- Storage TEM.,Humidity: -40~+80℃,10~95%RH
- TEMP.coefficient: ±0.03%/℃(0~50℃)
- Vibration: 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety &EMC
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
- EMC EMISSION: Compliance toEN55015,EN61000-3-2 (> or=50%load)
- EMC IMMUNITY : Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)
Applications
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
Packaging & Shipping
| 1400mA 63W 0-10V/PWM dimmable Constant Current LED driver | |||
| Net weight (g) | Gross Weight/ctn | Qty/ctn | Carton size(mm) |
| 1100 g | 13.2kg | 10pcs | 324*298*176mm |
