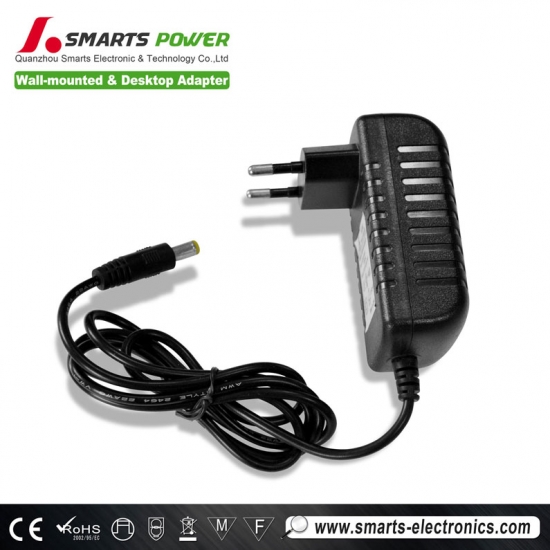

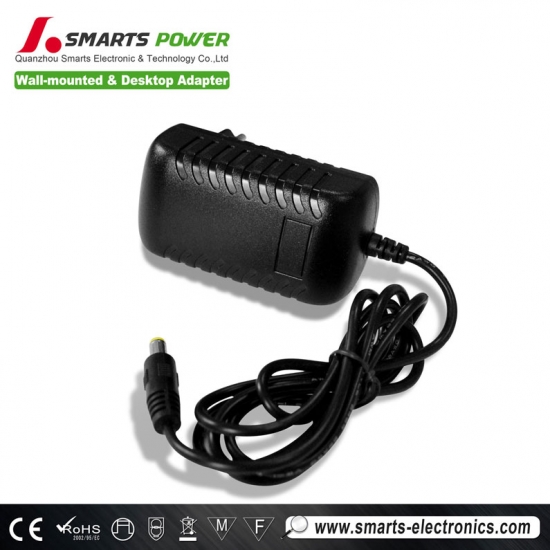

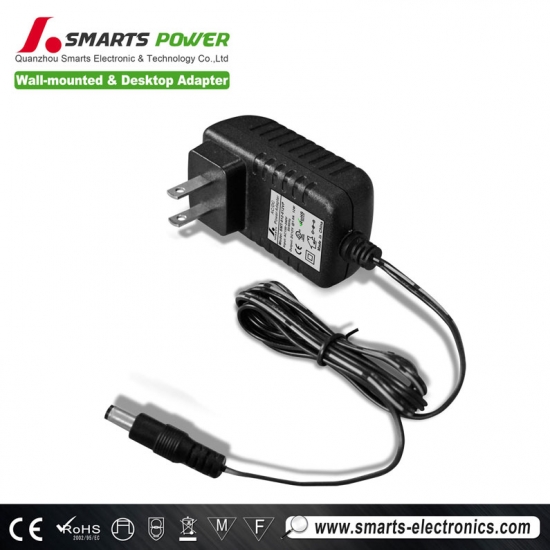

Specifications of 12vdc power supply:
- Modle: SMT-012-009VP
- Input:100~240vAC / 47-63HZ
- Output :12V @0.75A 9W
- Energy transfer: AC-DC
- RippleI & Noise (max.) : 150mVp-p
- Voltage Tolerance : ±5%
- Line Regulation : ±1%
- Load Regulation : ±2%
- Case material: Plastic housing
- Waterproof rate: IP20
- DC connector:5.5*2.1*10mm
- CE, ROHS approval
- DC cord:1.2m
- standard cord with male plug
- 18 months warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features:
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
- Brand electrotronic components.
- ROHS material.
Environment:
- Working temp: -30~+50℃ (Refer to output load derating curve)
- Working humidity: 20~99% RH non-condensing(Waterproof)
- Storage temp. humidity: -40~+80℃,10~99%RH
Safety:
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
-
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Parameter:
ITEM NO Input Voltage(vAC) Frequency range(Hz) Output voltage(vAC) output Current(A) output Power(W) Working Temp('C) SMT-012-009VP 100-240vAC 47-63Hz 12V 0.75A 9W -20-50'C SMT-024-009VP 100-240vAC 47-63Hz 24V 0.375A 9W -20-50'C
