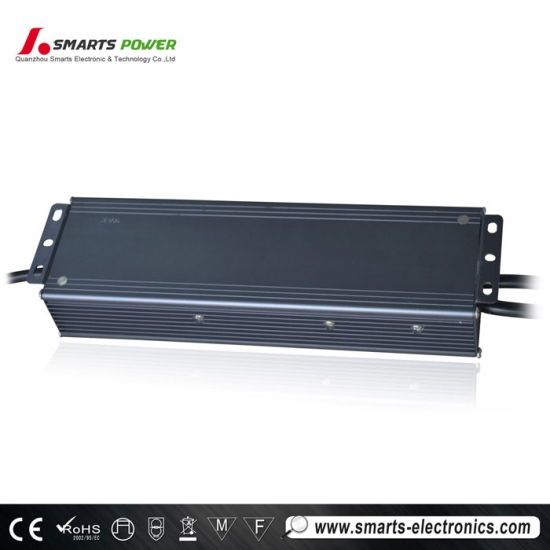

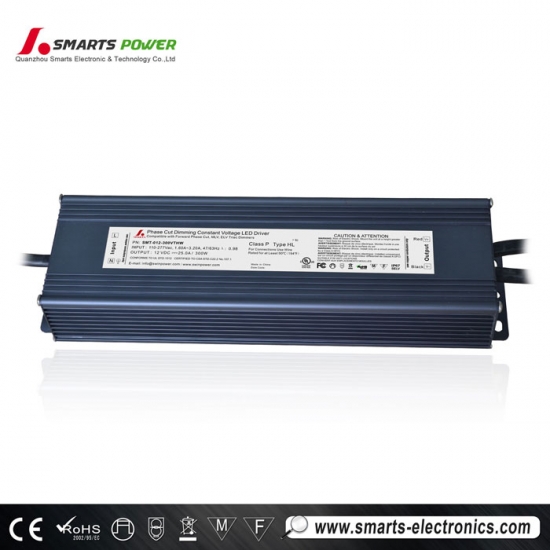

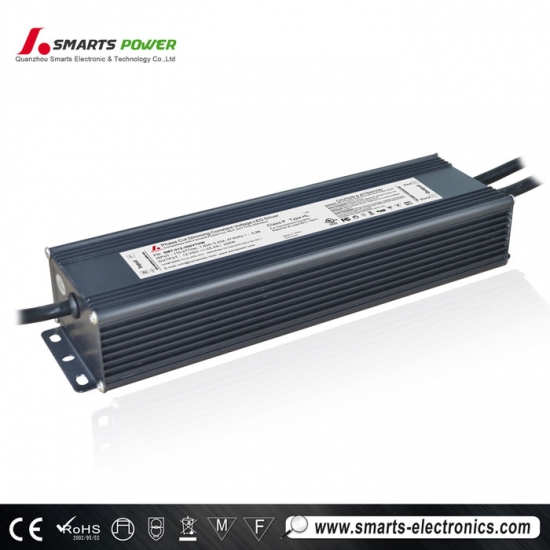

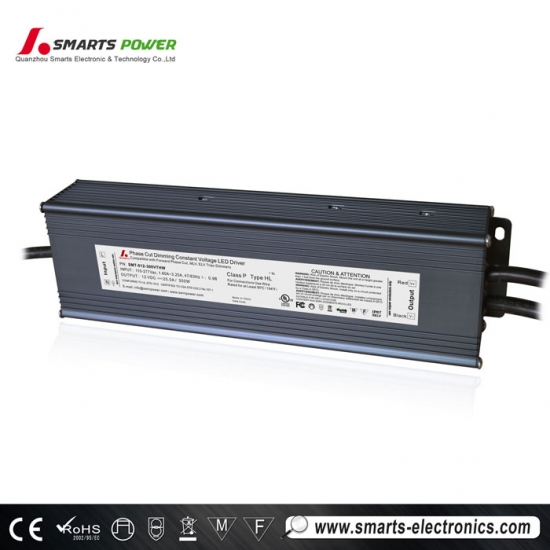

12V 300 Watt Triac Dimmable LED Drivers UL cUL certification
|
Smarts Electronics’s line of driver led dimmable provides the smoothest, most stable, and most efficient power and dimming capability in our line of power supplies. Advanced technology reads the signal from a TRIAC dimmer switch for smooth dimming. led driver 12v are sophisticated power supplies available in dry and wet/dry location models to fit most installations.
These 300 watt led drivers are the perfect choice for LED panels, LED Strips, LED Cove Lighting and various commercial and residential LED applications. |
Specifications for 300 watt led driver
|
Model |
SMT-012-300VTHW |
SMT-024-300VTHW |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Tolerance |
±0.5V |
|||
|
Voltage Regulation |
±0.5% |
|||
|
Voltage Tolerance |
±0.5V |
|||
|
Load Regulation |
±2% |
±1% |
||
|
Rated current |
25.0A |
12.5A |
||
|
Rated power |
300W |
|||
|
Input |
Voltage Range |
100-277VAC |
||
|
Frequency Range |
47～63HZ |
|||
|
Power Factor（Typ.）@ full load |
0.98@120VAC 0.97@277VAC |
0.98@120VAC 0.97@277VAC |
||
|
THD（Typ.）@ full load |
<20% |
|||
|
Inrush Current （Typ.） |
20A, 50%, 1.4ms |
|||
|
Full Load Efficiency（Typ.） |
>83% |
>83% |
||
|
AC Current（Typ.） |
3.4A@110VAC |
|||
|
Leakage current |
<0.50mA |
|||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
||
|
Over load |
≤120% constant current limiting, auto-recovery |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|||
|
Over Current |
≤1.4*I out |
|||
|
Environment |
Working TEMP. |
-40～+60℃ |
||
|
Working Humidity |
20～90%RH,non-condensing |
|||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||
|
Vibration |
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
UL8750 |
||
|
Withstand voltage |
I/P-O/P: 3.00KVAC |
|||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
Compliance to FCC Part 15 B |
|||
|
EMC IMMUNITY |
EN61000-4-2,3,4,5,6,11（Surge 4KV） |
|||
|
Others |
Weight |
1.75Kg |
||
|
Size |
276*78*47mm (L*W*H) |
|||
|
packaging |
10PCS/CTN385*335*200mm 20PCS/CTN |
|||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V & 277VAC input , rated load and 25℃of ambient temperature. 2..Tolerance:includes set us tolerance,line regulation and load regulation. |
|||
|
Label |
100-277Vac
180-265Vac SAA\C-TICK
|
|||
 |
 |
 |
 |

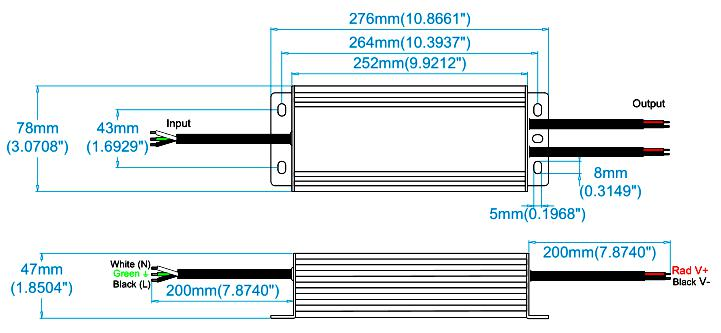

Mechanical Specification for 300 watt led driver
※Input: 3 * 18AWG Black and White to be connected to AC L and N ,Green wire go ground,
※Output: Red is（DIM+）,Black is（DIM-）/ 2 * UL 14AWG power cord
Dimming Operation for led driver 12v
※Output PWM of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a
triac dimmer.
※Compatible with Leading edge or Reverse phase, trailing edge triac dimmers, Magnetic low voltage dimmers,
Electric low voltage Dimmers..
※Please try to use dimmers with power at least 1.5 times as the output power of the driver.

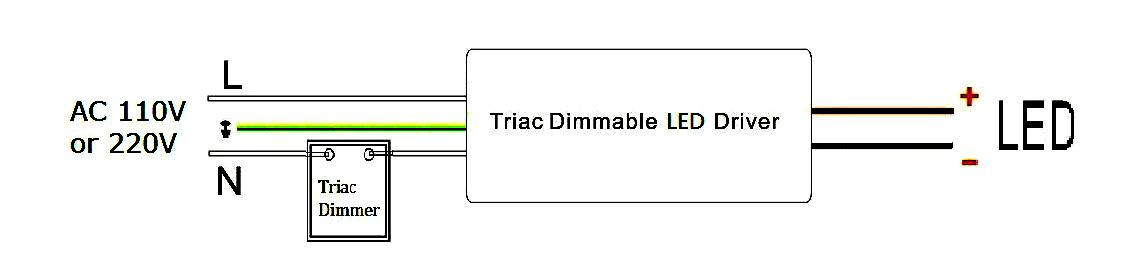

Connecting Diagram for driver led dimmable
