waterproof 12 volt led strip power supply 12v

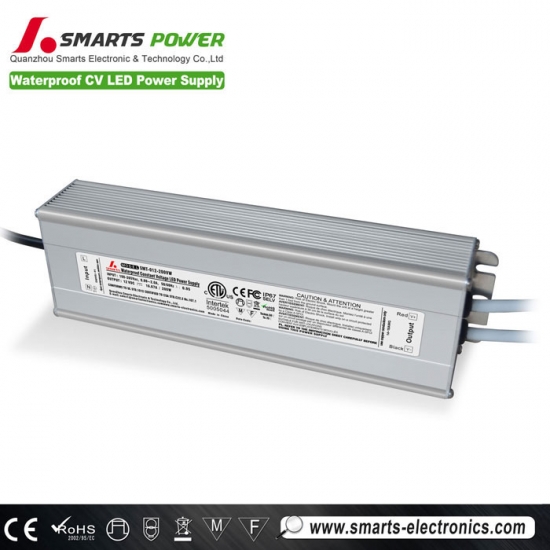

120VAC/230VAC to 12VDC Low Voltage 200W waterproof led power supply for use with 12VDC Linear LED Lighting, LED Strips, and Custom LED Panels.
Smarts waterproof led power supply 12v is a top-quality, trusted manufacturer of power supplies. Our led strip power supply is one of the most versatile, sealed, outdoor-rated power supplies on the market.
| SPECIFICAION | |||||
| MODEL | SMT-012-200VW | SMT-024-200VW | SMT-036-200VW | ||
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | |
| RATED CURRENT | 16.67A | 8.33A | 5.55A | ||
| CURRENT RANGE | 0~16.67A | 0~8.33A | 0~5.55A | ||
| RATED POWER | 200W | 200W | 150W | ||
| RIPPLE&NOISE(max) | 150mV | 150mV | 150mV | ||
| VOLTAGE TOLERANCE | ±0.5V | ±0.5V | ±0.5V | ||
| SETUP RISE TIME | 80ms/110VAC, 220VAC | ||||
| HOLD UP TIME(Typ.) | 60ms/110VAC, 220VAC | ||||
| INPUT | VOLTAGE RANGE | 90~265VAC | |||
| FREQUENCY RANGE | 50~60Hz | ||||
| POWER FACTOR(Typ.) | >0.95@110VAC ; >0.98@220VAC |
|
|||
| EFFICIENCY(Typ.) | ﹥91% |
|
|||
| AC CURRENT(Typ.) | 2.10A@110VAC; 1.01A@220VAC |
|
|||
| INRUSH CURRENT (Typ.) | COLD START 50A/110VAC, 220VAC | ||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | |||
| Overload | overload protected@145-160% above peak rating | ||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | ||||
| ENVIRONMENT | WORKING TEMP. | -30~+55℃ (Refer to output load derating curve) | |||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | ||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | ||||
| SAFETY&EMC | SAFETY STANDARDS | CE ETL Mark(EMC,LVD),IP67 | |||
| WITHSTAND VOLTAGE | I/P-O/P:3.0KVAC IP-GND:3.0KVAC | ||||
| EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
| EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
| NOTE | 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature. | ||||
| 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel | |||||
| 3.Tolerance:includes set up tolerance,line regulation and load regulation. | |||||

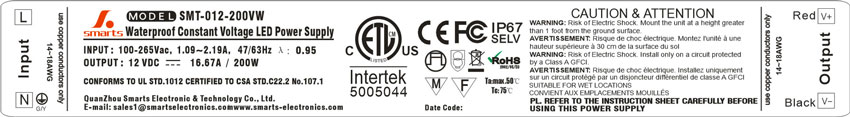

| Label |
 |
||||
 |
 |
 |
 |
Quick Specs for 12 volt led power supply
Output DC Votage 12V
Rated Current 16.67 A
Rated Power 200 W
Input Voltage Range 100-265VAC
Non-Dimmable (100-265VAC Input)
Best Power Supply for led strip
Metal Housing
ETL Listed
3 Year Warranty
Packing and shipping for Smarts LED Power Supply
- MOQ: 1 pcs
- Payment: T/T, Western Union, Paypal, Trade Assurance.
- Delivery: 7 working days for sample order,12 working days for 500pcs.
- FOB , EXW and CIF all are available.
- Shipping freight are quoted under your requests.
- Loading port: Xiamen
- Discounts are offered based on large quantities.
