120 277v 24v high power 120w ac dc led power supply mr16
Smarts 12v 24v 120w triac dimmable ac dc led power supply is UL/cUL, FCC listed, suit for dry or damp or wet environment installations, it can do flicker-free by connecting with Dialight High Bay 4000K which can be smoothly dimmed down to 1%.
Specification
model
SMT-012-120VTH (1.0 version)
SMT-012-120VTHV2 (2.0 version)
SMT-024-120VTH (1.0 version)
SMT-024-120VTHV2 (2.0 version)
Output
DC Voltage
12V
24V
Rated Current
10A
5A
Rated Power
120W
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±2%
±1%
±1%
Input
Voltage Range
100-277VAC
Frequency Range
47-63HZ
Power Factor(Typ.)@ full load
0.99@120VAC 0.96@277VAC
0.98@120VAC 0.96@277VAC
THD(Typ.)@ full load
<20%
Efficiency(Typ.)@ full load
82%
82%
AC Current(Max.)
1.7A@100VAC
Inrush Current (Typ.)
20A, 50%, 1.6ms
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90% RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:3.75KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
1.3Kg
Size
1.0 version: 220*93*41mm (L*W*H); 2.0 version: 220*94.5*40mm (L*W*H)
packing
329*279*176mm , 10PCS/ctn
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |

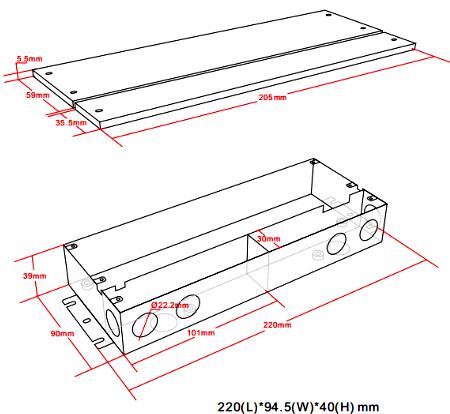

Mechanical Specification

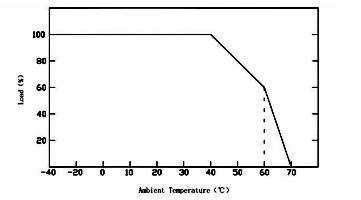

Derating Curve

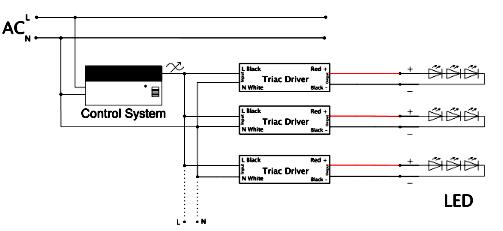

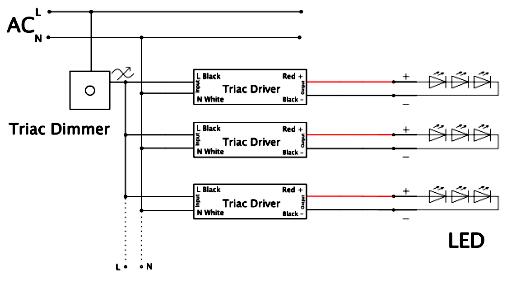

Application
The SMT-024-120VTHV2 120v to 24v led driver is UL/CUL certification for use in Canada and USA and covered by 7 year manufacturer limited warranty. It can drive LED Drivers are fully dimmable with Dialight High Bay Neutral White achive no flicking.
