Non-dimmable LED Driver

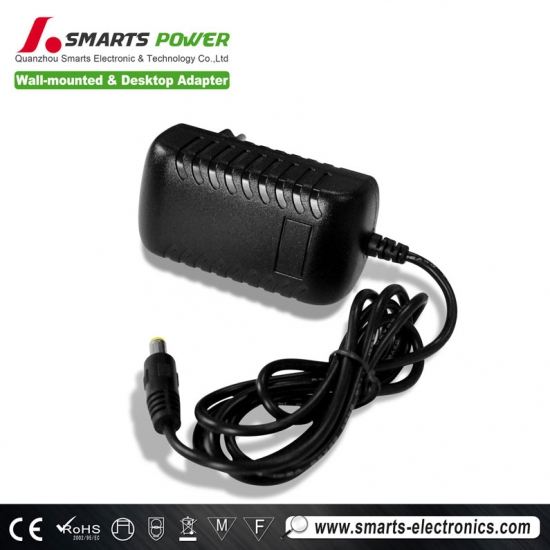

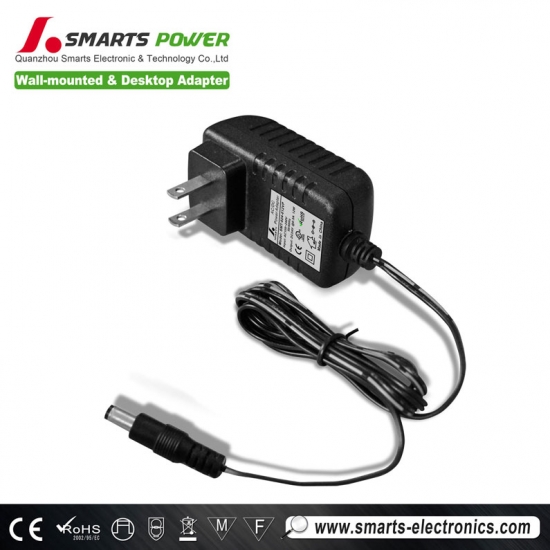

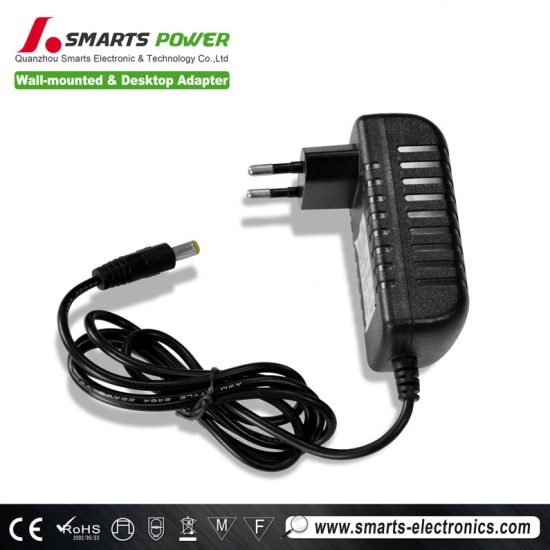

110v-240vac 24v dc 12w us eu uk plug adapter/adaptor

us eu uk plug adapter/adaptor; 24v 12w power adapter
  • item no.:

    SMT-024-012VP
  • lead time:

    about 7 working days
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • market price:

    $3
inquiry now
product details

110v-240vac 24v dc 12w us eu uk plug adapter/adaptor


Product parameters:

Model No.

Input (Vac)

output (Vdc)

Current (Amp)

power (Watt)

   Tol.

    R&N

    Effi.

SMT-012-012VP

100-240V

12Vdc

1Amp

12W

±4%

100mV

>82%

SMT-024-012VP

100-240V

24Vdc

0.5Amp

12W

±4%

100mV

>82%

  • wall-mount type AC/DC switching power supply
  •  Low standby power consumption
  • Approval CE,ROHS,
  • 18 months warranty

General Specification

  • AC input voltage range ............. 100~240VAC / 0.5A
  • AC inrush current (max.) ...........Cold start, <40A at 230VAC
  • Overload protection................... Hiccup mode, auto-recovery
  • Over voltage protection .............110~140% rated output voltage
  • Hold up time...............................16ms at full load
  • Withstand voltage...................... I/P-O/P: 4242VDC, 1minute
  • Working temperature..................0~40°C @ 100% load, 50°C @ 70% load
  • EMC standards.......................... EN55022-B, EN61000-3-2,3, EN61347-1
  • Length of output cable................180cm of SPT-1,18AWG x2C
  • Standard DC plug....................... P2J: 2.1x5.5x10mm / C+, barrel type

PROTECTION:

  • Short Circuit Protection

   If short circuit occurs,all the output should be protected. After the fault, the adapter automatically recovers.

  • Over Shoot

    The Output over shoot at turn-on shall not exceed 10% of normal voltage value with or without the load connected.

  • Start-up time

    The start-up time is less than 2 second.



ENVIRONMENTAL CONDITIONS:

  • Temperature

    Operating temperature:  0℃  to  +40℃

    Storage temperature :  -20℃ to  +60℃

  • Humidity

Relative humidity:≤95%

  • Operating Ambient Altitude

     Altitude:0-3000m

  • Operating at the lower temperature

      At -0℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery  at the room  temperature.

  • Operating at the high temperature

    At +40℃,with the rated voltage 100-240Vac charged to the primary and unloaded and full Load on the secondary 8 hours, no abnormality in electric and mechanical characteristic, after 2 hours recovery  at the room  temperature.

  • COOLING:

    Cooling shall be with natural convection cooling.

  • Burn-in

    The burn-in test will be performed at least 4 hours at centigrade

    degrees under full load Condition.

  • Referenced standard:

EMI Standards

Reference  EN50082-1,EN55022-B,GB-17625.1-2003, GB-9254-1998

  • Safety Standards

    The adapter shall be meet certified with the following safety standards.



MOUNTING CONNECTORS:

  • AC Input Connector

     Spec :2Pin  (CE PIN)



  • DC Output Cable

     Plug : (Optional) 5.5 x 2.1x 10mm  Turning fork line

MECHANICAL FEATURES:

  • Dimension(Size)

     Length: 75mm

     Width: 42mm

     Height: 30mm

  • Weight

     The Power Supply unit : 79±10g

  • Vibration and shock

      No Evidence of any mechanical or functional damage after the vibration and shock testing.

Test conditions

Acceptance Criteria

Frequency

10-55Hz

Nominal functional test should be satisfied after the test

Sweep

For each axis(X,Y,Z)

Displacement

0.15mm

Periodicity

10



  • Drop test

After Dropping from a hight  of   100  cm onto a wooden floor , Dropping at  6  sides  totally,  NO breakage should be happened in the test piece.

  • Bending Test

     Fix the power supply and its plug, apply a load of 200g to the other end, turn the cable by +/-60℃ carry out this process 1000 times, at the rate of 20 times per minutes. No abnormality in mechanical and electrical Characteristic and disconnection within 30% after the test.

     110v-240vac 24v dc 12w us eu uk plug adapter/adaptor

DIAGRAM DATA:( See to attach the diagram)

 110v-240vac 24v dc 12w us eu uk plug adapter/adaptor



Remarks:

 PLUG:5.5 x 2.1 x 10mm  Turning fork line


We have 7 kinds of led drivers or led power supply:

Constant Voltage LED Driver;

Constant Current LED Driver;

Triac CC&CV Dimmable LED Driver

0-10v  CC&CV Dimmable LED Driver

DALI CC&CV Dimmable LED Driver

Power Adapter

Switching Power Supply

All of our drivers are got CE ROHS listed .OEM Welcome.



Our led drivers are widely used for:

Indoor LED illuminating lights

LED Neon, LED urban Decoration

LED Lighting Advertising,LED Display

Safety Protection Apparatus

Telecommunications, Networks

Vehicle Lights, Controller Panels


What Service we can supply??

  1. All inquiries will be replied within 24 hours

  2.  Professional manufacturer,welcom to visit our website

  3. OEM/ODM avaliable:
    A.Print logo on our product;
    B. Customized specification;
  4. After Sales-Service:
    A. All products will have 100% burn-in test and strictly quality test before shipping;
    B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;
  5. High efficiency,long life span,reasonable&competetative price,fast lead time;
  6. We have our engineer team, if you have any question about your LED applic

Frequently Asked Questions

Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.



Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
