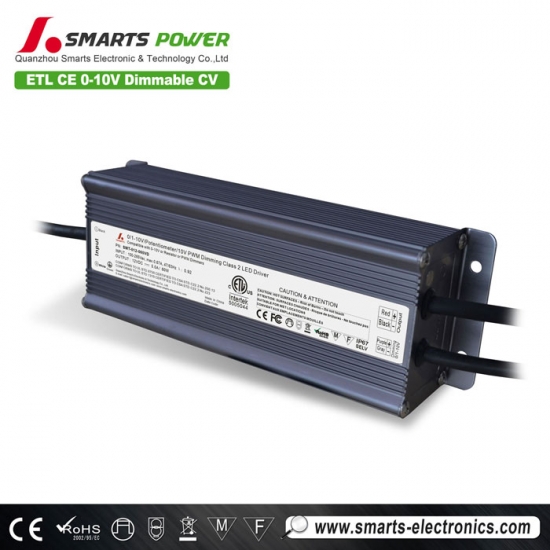

Specification
|
Model |
SMT-012-060VD |
SMT-024-060VD |
||
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Accuracy |
±0.5V |
|||
|
Rated current |
0～5.0A |
0～2.5A |
||
|
Rated power |
60W |
|||
|
Input |
Voltage Range |
AC100～130V / AC170~265V |
||
|
Frequency Range |
47～63HZ |
|||
|
Power Factor ( Typ.） |
PF≧0.90/110V; PF≧0.90/220V |
|||
|
Full Load Efficiency（Typ.） |
>88% |
>88% |
||
|
AC Current（Typ.） |
0.689A@110VAC |
0.344A@220VAC |
||
|
Leakage current |
﹤0.66mA/110VAC ; ﹤0.7mA/220VAC |
|||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||
|
Over voltage |
≦280VAC |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|||
|

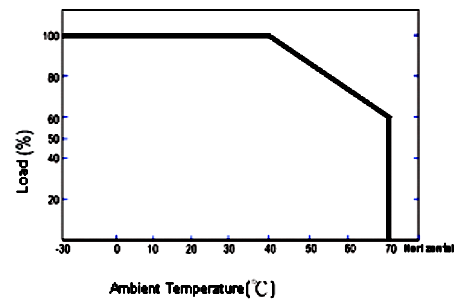

Environment |
Working TEMP. |
-40～+60℃ |
||
|
Working Humidity |
20～95%RH,non-condensing |
|||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
|||
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. |
||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (≧50%load) |
|||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
|||
|
Others |
Weight |
1.1Kg |
||
|

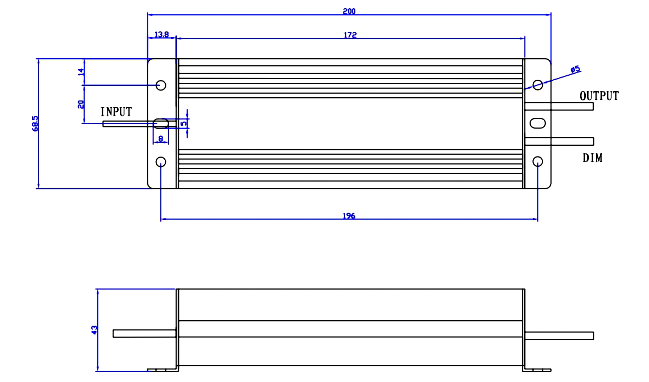

Size |
200*68.5*45mm（L*W*H） |
|||
|
packing |
329*279*176mm/10pcs /CTN 245*80*58mm for inner box |
|||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/220VAC input , rated load and 25℃ of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |

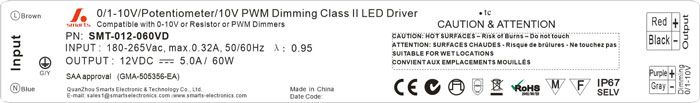

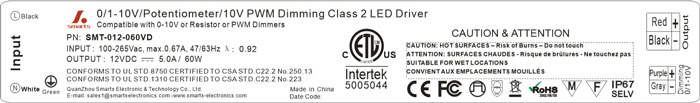

|||
| Label |
|
|||
 |
 |
 |
 |

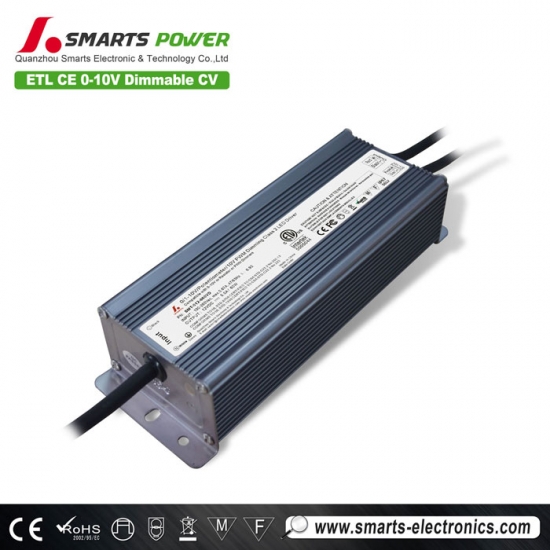

Mechanical Specification
Input Rubber H03VV-F 3G *0.75㎡，the green/yellow cable connect with (FG)，Brown with AC (L),Blue with AC(N)
Signal Rubber H03VV-F 2G*0.75㎡，Blue is（DIM+）,White is（DIM-）
Output Rubber H03VV-F 2G*0.75㎡，Red is output（V+）,Black is output（V-）
Dimming Operation
