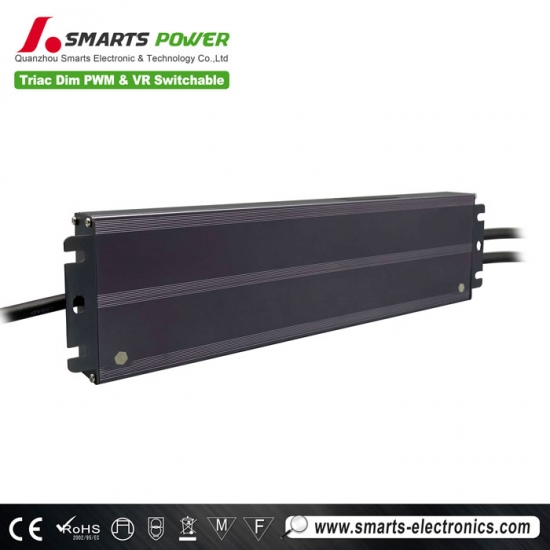

waterproof 110-277vac triac dimmable 300W led strip lighting power supply for led strip
Smartspower's new upgraded triac dimmable 300W LED power supply has built-in active PFC function PF>0.97. It has short circuit/overload/over-temperature protection functions. It complies with global safety lighting regulations and has a 7-year warranty
Specification
| Model | SMT-12300-VT-A | SMT-24300-VT-A | SMT-36300-VT-A | SMT-48300-VT-A | |
| Certificate | UL / cUL / FCC / Class P | ||||
| Output | DC Voltage | 12V | 24V | 36V | 48V |
| Voltage Tolerance | ±4% | ±2% | ±2.8% | ±2% | |
| Voltage Regulation | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | |
| Rated current | 25A | 12.5A | 8.33A | 6.25A | |
| Rated power | 300W | 300W | 300W | 300W | |
| Load Regulation | ±2% | ±2% | ±2% | ±2% | |
| Voltage Ripple | 240mVp-p | 400mVp-p | 352mVp-p | 330mVp-p | |
| Overshoot voltage | <1%(full load),<2%(no load) | ||||
| Output mode selection | When the blue&white wire and the yellow&gray wire at the output terminal are short-circuited, it indicates the Pulse-Width Modulation (PWM) mode. When they are disconnected, it indicates the Voltage Regulation (VR) mode of direct current voltage modulation. | ||||
| Switching the output mode requires the power to be cut off for 3 seconds and then powered on again for the mode switching to take effect. | |||||
| Input | Voltage Range | 120-277VAC | |||
| Frequency Range | 47 - 63Hz | ||||
| Power Factor (Typ.) @ full load |
0.99@120VAC 0.97@277VAC |
0.99@120VAC 0.97@277VAC |
0.99@120VAC 0.97@277VAC |
0.99@120VAC 0.97@277VAC |
|
| THD(Typ. ) @ full load | ≤15%@120VAC ≤15%@277VAC | ||||
| Efficiency(Typ.) @ full load |
89.5%@120VAC 92%@277VAC |
91.0%@120VAC 93.5%@277VAC |
90.0%@120VAC 92.5%@277VAC |
90.0%@120VAC 92.5%@277VAC |
|
| AC Current (Max.) | ≤3.1A @120VAC ≤1.4A@277VAC | ||||
| Inrush Current (Typ.) | 58.4A, 50%, 560us @120VAC; 132A, 50% 180us @277VAC | ||||
| Leakage current | <0.5mA | ||||
| Protection | Short Circuit | Hiccup mode, can be automatically restored after abnormal removal | |||
| Over Load | ≥120% Hiccup mode,recovers automatically after fault condition is removed | ||||
| Over temperature | When the ambient temperature exceeds 45℃ ±5℃, the output is turned off | ||||
| Environment | Working TEMP. | -40~+40℃ (see below derating curve) | |||
| Working Humidity | 20 - 95%RH non-condensing | ||||
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH non-condensing | ||||
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | ||||
| Vibration | 10 ~ 500Hz, 5G 12 minutes/cycle, X Y Z axis 72 minutes each | ||||
| Safety & EMC | Safety standards | UL8750 , CAN/CSA-C22.2 No.250.13 | |||
| Withstand voltage | I/P-O/P:1.88KVAC;I/P-FG:1.5KVAC;O/P-FG:0.5KVAC | ||||
| Isolation resistance | I/P-O/P: 100MΩ/ 500VDC/ 25℃/ 70% RH | ||||
| EMC Immunity | FCC/ICES do not request this test | ||||
| EMC Emission | FCC Part15 Subpart B;ANSI C63.4:2017;ICES-005 Issue 5 | ||||
| Surge Immunity Test | AC Power Line:Differential Mode 2KV,Common Mode 4KV | ||||
| Others | Net Weight | 1KG | |||
| Dimension | 232*78.1*25.3mm(L*W*H) | ||||
| Packing | 300*280*215mm 20 pcs / CTN | ||||
| Notes | 1. Unless otherwise specified, all specifications are measured at 120V input, rated load, and 25℃ ambient temperature. | ||||
| 2. In the case of low input voltage, derated output should be used to ensure a long service life. | |||||
| 3. default states: The output mode is Voltage Regulation output by default. The dimming curve is a gamma2.2 curve. | |||||
| 4. regarding LED driver load types where the driver meets the harmonic emissions requirements of ANSI C82.77-10. | |||||
 |
 |
 |
 |

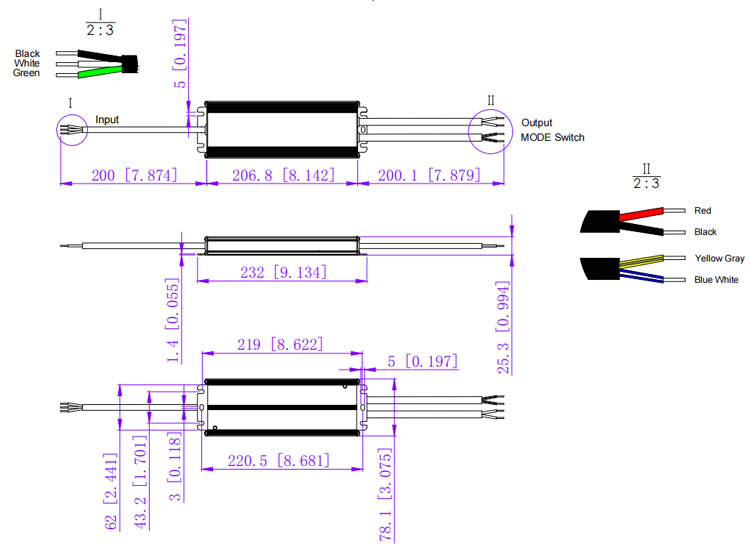

Mechanical Specification
| Notes | American wire gauge |
| Enclosure model | DS100 |
| Input wire | SJOW rubber wire \ Black(L) White(N) Green(G) \ (3*18 AWG) \ (3*0.824mm²) (12V & 24V & 36V & 48V Version) |
| Output wire | SJOW rubber wire \ Red(V+) Black(V-) \ (2*12 AWG) \ (2*3.31mm²) (12V Version) |
| SJOW rubber wire \ Red(V+) Black(V-) \ (2*14 AWG) \ (2*2.08mm²) (24V Version) | |
| SJOW rubber wire \ Red(V+) Black(V-) \ (2*16 AWG) \ (2*1.31mm²) (36V & 48V Version) | |
| Function switching wire | SJOW rubber wire \ Yellow&Gray and Blue&White \ (17 AWG) \ (2*1.0mm²) (12V & 24V & 36V & 48V Version) |
| Remarks: | |
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 1 |
| 13A | 2 | |
| 16A | 3 | |
| 20A | 3 | |
| 25A | 4 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 4 |
| 13A | 5 | |
| 16A | 6 | |
| 20A | 8 | |
| 25A | 10 | |
Note：
1. The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
2. The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
Dimming Operation
Using one dimming ---TRIAC/Phase cut dimming
1.The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
a phase /Triac dimmer or lighting system.
2.Working with forward phase /leading edge, MLV and Reverse phase /trailing edge, ELV, TRIAC dimmers or light system.
3.Min. loading is about 20%
4.Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Derating Curve
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. The output current of the LED driver should be selected according to the rated current of the lamp and the ambient temperature.
Normally, we recommend the power supply to reserve a certain amount of load to extend LED driver’s life.
Related Products

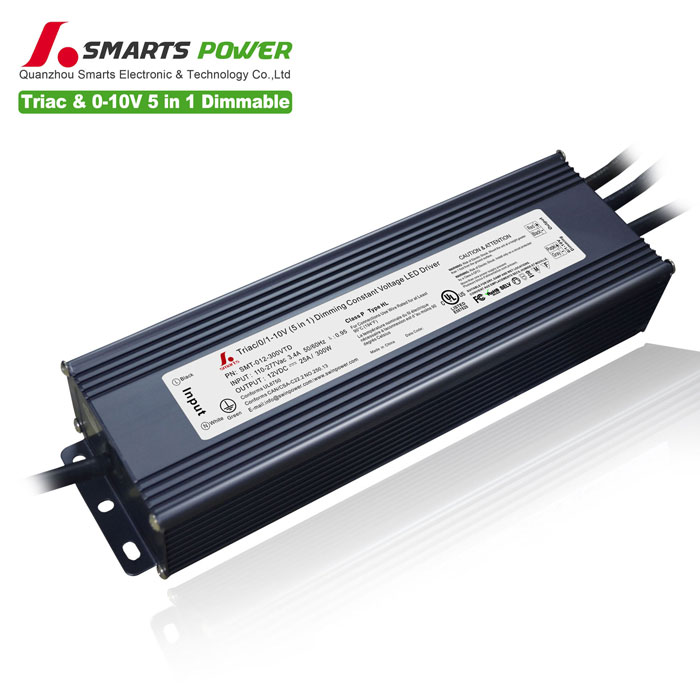

300W triac & 0 10v dimmable led power supply waterproof grade ip67. Good heat dissipation, can effectively prevent water and dust. Protect the lamp and product life. UL certification, mainly sold to North America. 7 years warranty
