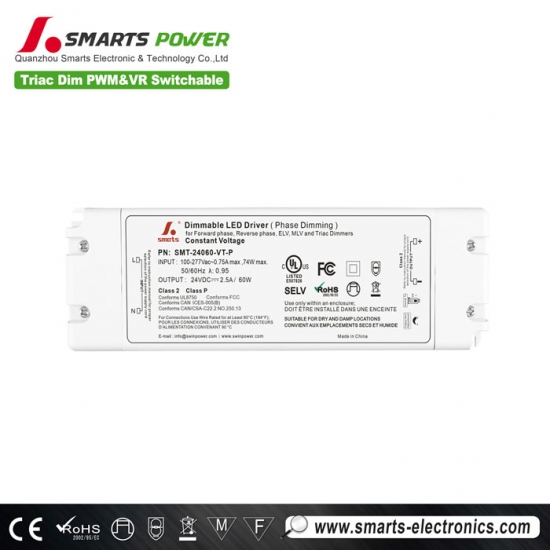

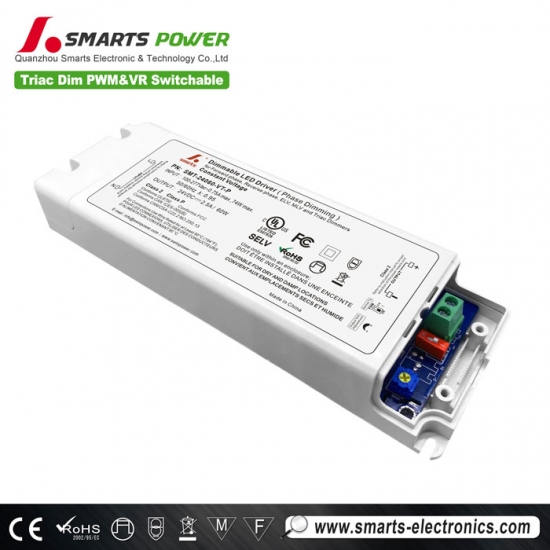

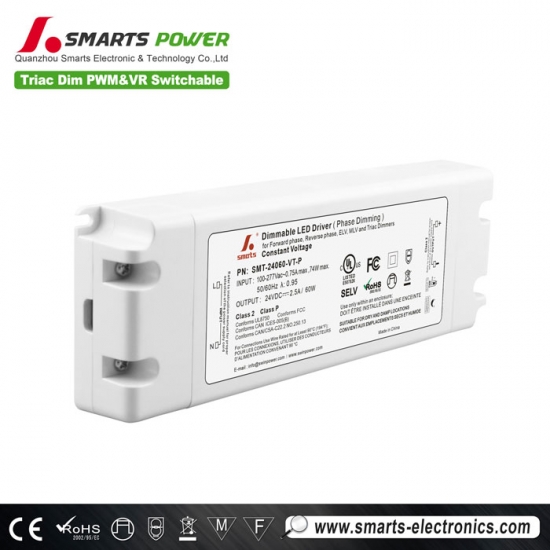

IP20 Plastic housing 60w triac dimmable led driver power supply manufacturers for indoor
Smartspower's newly upgraded TRIAC dimmable 60W LED driver has built-in active PFC function. Plastic housing, good heat dissipation. Waterproof grade IP20, dimming range between 0~100% smooth and flicker-free, with short circuit/overtemperature/overload functions. UL certified, in line with global safety lighting regulations.
Specification
| Model | SMT-24060-VT-P | |
| Certificate | CE, UL/cUL, FCC, ROHS, SAA | |
| Output | DC Rate Voltage | 24V |
| Voltage Tolerance | ±2.5%Vo | |
| Load Regulation | ≤1% | |
| Line Regulation | ≤0.5% | |
| Rated current | 2.5A | |
| Rated power | 60W | |
| Voltage Ripple | 400mVp-p | |
| Overshoot voltage | <1%(full load),<2%(no load) | |
| Output volt Adjustment | 24-26V | |
| Output mode selection | The DIP switch in the "ON" position represents the PWM (Pulse - Width Modulation) mode, and in the "1" position represents the VR (Modulation of DC Voltage) mode. | |
| Switching the output mode requires the power to be cut off for 3 seconds and then powered on again for the mode switching to take effect. | ||
| Input | Voltage Range | 170-265VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor @ full load | >0.98@230VAC | |
| THD(Typ.) @ full load | <20%@230V | |
| Efficiency @ full load | >85%@120VAC | |
| AC Current (Max.) | ≤0.18A @230VAC | |
| Inrush Current (Typ.) | 72A@50%Ipeak 112us @230VAC. | |
| Leakage current | ≤0.5mA | |
| Protection | Short Circuit | Hiccup mode, can be automatically restored after abnormal removal |
| Over Load | ≤120%,Constant - Current Mode, automatic recovery after exception | |
| Over temperature | When the ambient temperature exceeds 55℃ ±5℃, the output is turned off | |
| Environment | Working TEMP. | -40~+40℃ (see below derating curve) |
| Working Humidity | 20 - 90%RH non-condensing | |
| Storage TEM.,Humidity | -40 ~+80℃,10 - 95% RH non-condensing | |
| TEMP.coefficient | ±0.03%/℃(0 ~ 50℃) | |
| Vibration | 10 ~ 500Hz, 2G 12 minutes/cycle, X Y Z axis 72 minutes each | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 |
| Withstand voltage | I/P-O/P:3.75KVAC | |
| Isolation resistance | I/P-O/P:>100MΩ / 500VDC / 25℃ / 70% RH | |
| Surge Immunity Test | AC Power Line:Differential Mode 2KV | |
| EMC Immunity | EN55015 EN61000-3-2 | |
| EMC Emission | EN55015 EN61000-3-2.3 | |
| Others | Net Weight | 350g |
| Dimension | 178*61.1*24mm(L*W*H) | |
| Packing | 20 pcs / CTN | |
| Notes | 1. Unless otherwise specified, all specifications are measured at 230V input, rated load, and 25℃ ambient temperature. | |
| 2. In the case of low input voltage, derated output should be used to ensure a long service life. | ||
|
3.default states: ① The output mode is PWM output by default. ② The dimming curve is a gamma2.2 curve. |
||
 |
 |
 |
 |
Mechanical Specification
| When the input voltage is 120Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 18 |
| 13A | 23 | |
| 16A | 29 | |
| 20A | 35 | |
| 25A | 45 | |
| When the input voltage is 277Vac,the number of LED Driver matched by circuit breakers is as follows: | ||
| MCB Type | Level | The number of LED Driver |
| C type | 10A | 45 |
| 13A | 58 | |
| 16A | 72 | |
| 20A | 89 | |
| 25A | 112 | |
Note：
①The above quantities of the led drivers connected on the Type C is recommended base on the maximum ambient temperature is 50 ℃.
②The breaker should be selected according to the input rated voltage, input rated current, ambient temperature, and trip characteristic curve.
Dimming Operation
TRIAC/Phase cut dimming
1. The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection
2. phase /Triac dimmer or lighting system.
3. Working with forward phase, MLV and Reverse phase , ELV, TRIAC dimmers.
4. Min. loading is about 10%.
5. Please try to use dimmers with power at least 1.5 times as the output power of the driver.
Derating Curve
1. To extend their life, please refer to the Derating Curve and derate according to the temperature.
2. Please note that the rise in temperature of LED fixtures over a long period of time will cause their power to rise.
Therefore, we recommend the power supply to reserve a certain amount of load to avoid overloading .
Related Products

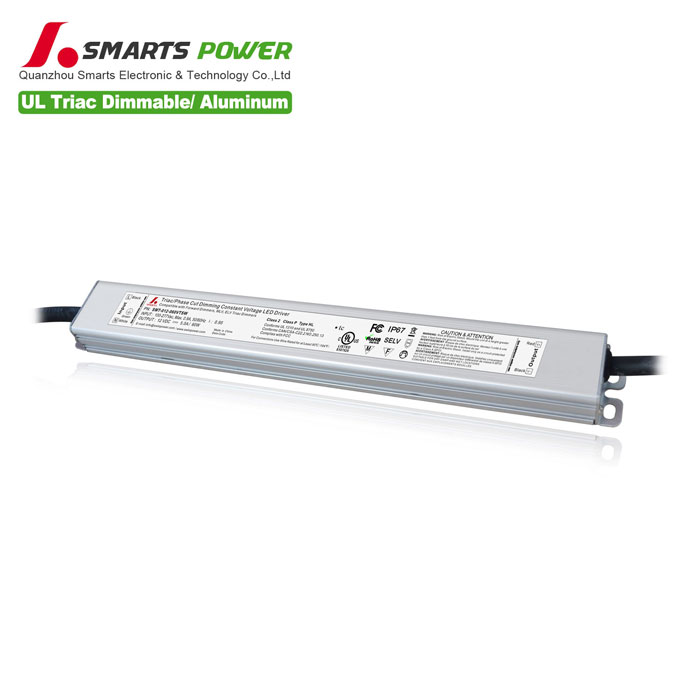

100-277vac 60w 12v triac dimmable led power supply constant voltage working mode. Ultra-thin size suitable for outdoor small space lighting project installation. With 7 years warranty.
Mode：SMT-012-060VTSW intput voltage：100-277vac
Size : 300*32*20MM |
