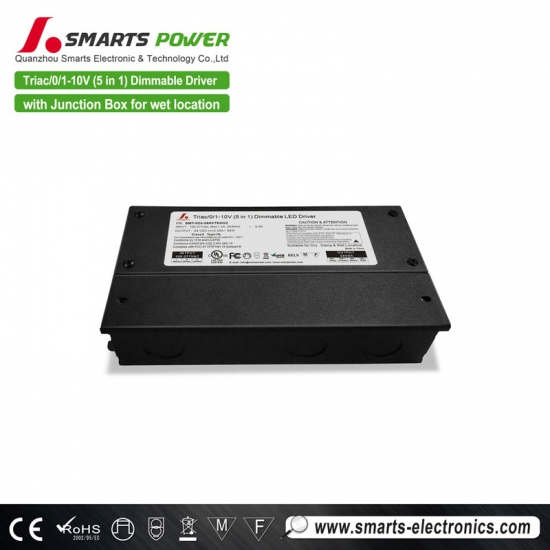

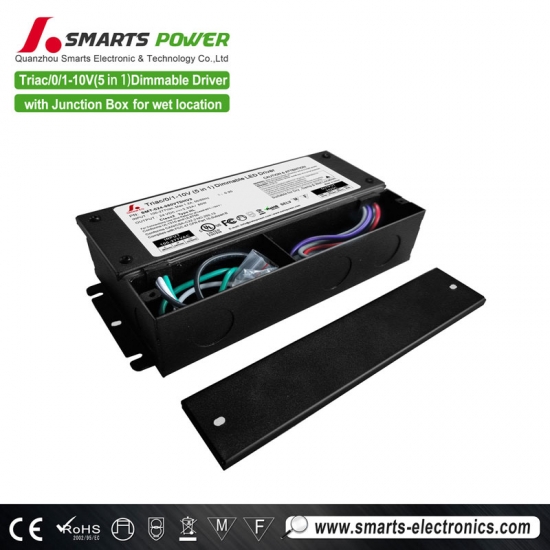

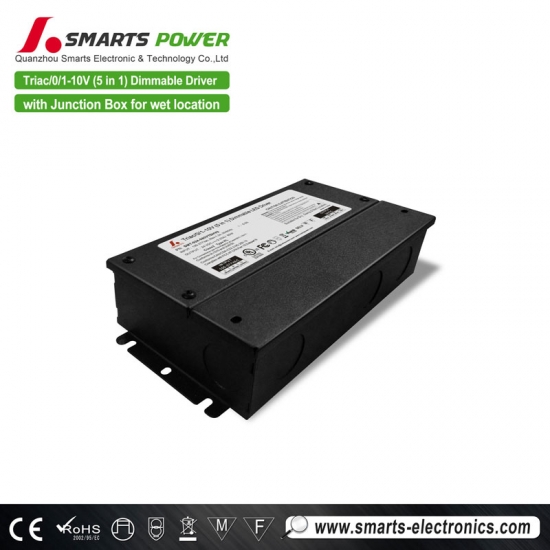

277v 24v 80w triac 0-10v 5 in 1 dimmable class 2 led strip led driver
Full dimming range: 0-100%, suit for wet, dry and damp location, 24v 80w class 2 led driver could drive Superior Lighting LED Vapor Tight Waterproof with 0-10v/triac/pwm dimming in a good condition.
Specification
model
SMT-012-080VTDHV2
SMT-024-080VTDHV2
Output
DC Voltage
12V
24V
Rated Current
6.67A
3.33A
Rated Power
80W
80W
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277VAC
Frequency Range
47-63Hz
Power Factor(Typ.)@ full load
0.98@120VAC 0.95@277VAC
0.98@120VAC 0.95@277VAC
THD(Typ.)@ full load
<20%
Efficiency(Typ.)@ full load
80% @120Vac 82%@277Vac
79%
82% @120Vac 85%@277Vac
AC Current(Max.)
1.15A@100Vac
Inrush Current (Typ.)
20A, 50%, 1.6ms @120Vac 25A, 50%, 1.2m,s @277Vac
Leakage current
<0.50mA
protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90%RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
About 1.3Kg
Size
220*94.5*40mm (L*W*H)
packing
10PCS/CTN
(L*W*H)
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |

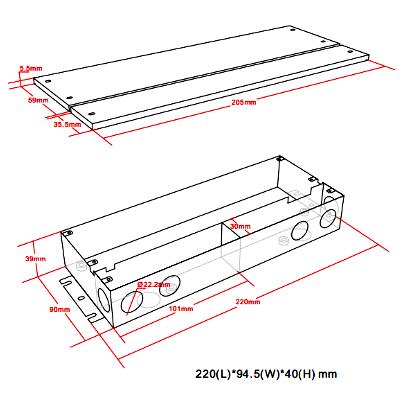

Mechanical Specification

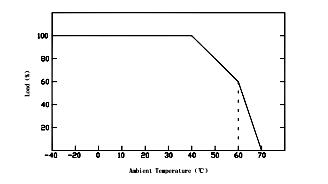

Derating Curve

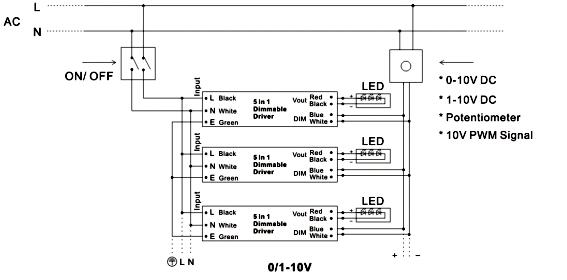

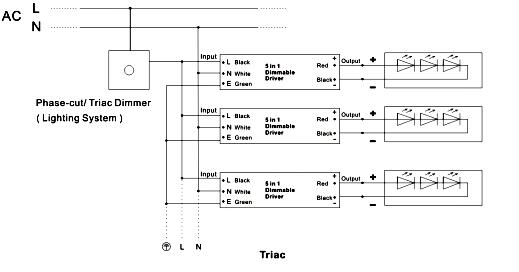

Application
SMT-024-080VTDHV2 is class 2 led driver with output 24v 80w, and size of 220*94.5*40mm,
continuous smooth full range flicker-free dimming, and was designed to work with
Superior Lighting LED Vapor Tight low energy costs which has a wide range of TRIAC/0-10v dimmers.
