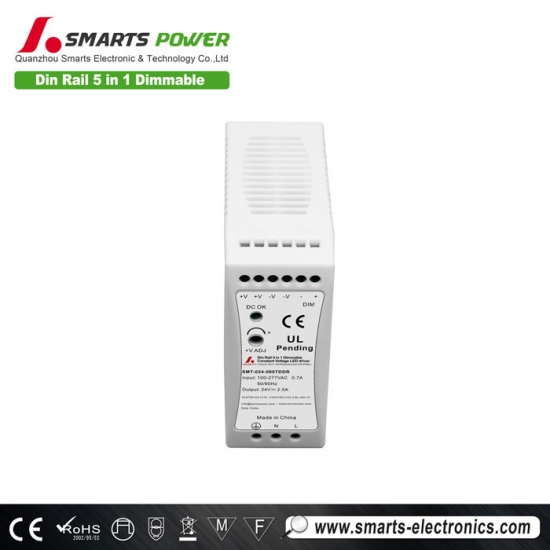

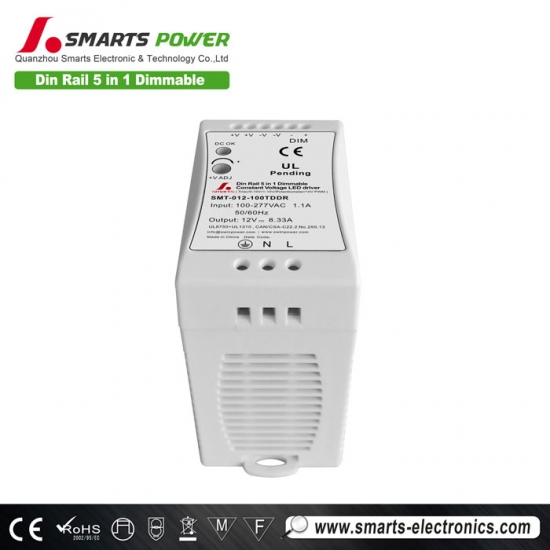

UL listed Din Rail Triac/0-10V/1-10V/Potentiometer/10V PWM Dimmable LED driver
Smarts brand 24VDC, 2.5A single output industrial DIN RAIL power supply for led lighting unit 60w,which is suitable for LED lighting and moving sign applications.
Specification
model
SMT-012-060TDDR
SMT-024-060TDDR
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
5.0Amp
2.5Amp
Rated power
60W
60W
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.98@120VAC ,0.95@277VAC
0.98@120VAC ,0.95@277VAC
THD(Typ. ) @ full load
<20%@120VAC & 277VAC
Full Load Efficiency（Typ.）
83%@120VAC, 85%@277VAC
83%@120VAC, 84%@277VAC
AC Current（Typ.）
0.9A
Inrush Current（Typ.）
14A, 50%, 780us @120VAC; 15A, 50% , 660us @277VAC
Leakage current
<0.5mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13
Withstand voltage
I/P-O/P:1.88KVac
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
Others
Weight
0.3Kg
Size
40*90*100mm(L*W*H)
packing
50PCS/CTN , carton size:330*330*130mm
Notes
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
 |
 |
 |
 |
Mechanical Specification
ØInput with terminals Live(L) and Neutral(N) wires to be connected AC;
ØOutput LED SEC output Positive (LED+) , output negative(LED-). Connected to LED light.
ØOutput terminals DIM (+) to 0/1-10V dimmer signal(+ ),DIM (-) white connect to 0/1-10V dimmer signal (-)
ØPlease DO NOT connect “DIM-“ to “LED-“, “DIM+” to “ LED+” ,or other incorrect connection.
ØPlease make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
Dimming operation
Compatible with LED strip lights
There are two things that make a good LED strip driver. Firstly, reliability – because nobody wants a product that lets you down at the worst possible moment. And secondly, flexibility – because there are countless ways in which people use LED lights.
Related Products
|

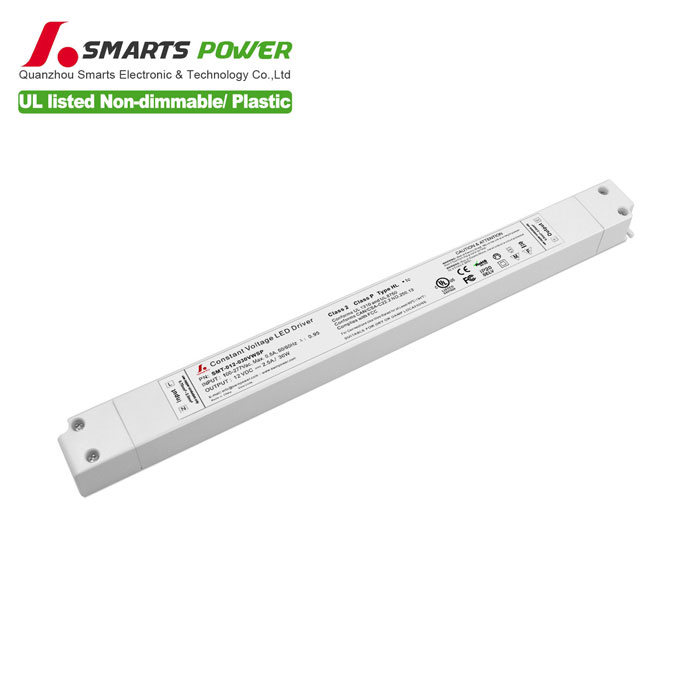

Mode：SMT-012-030VWSP
