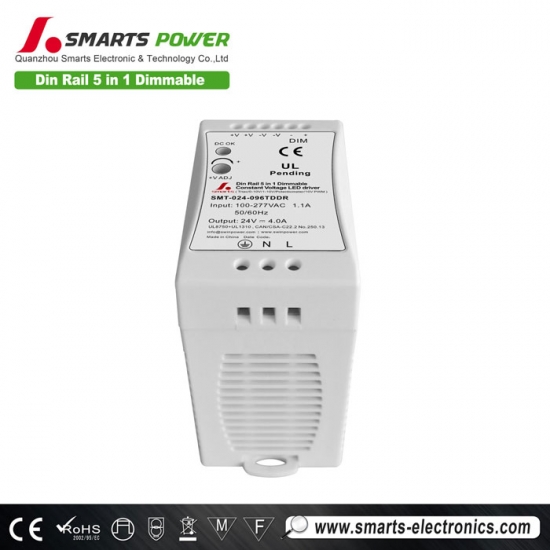

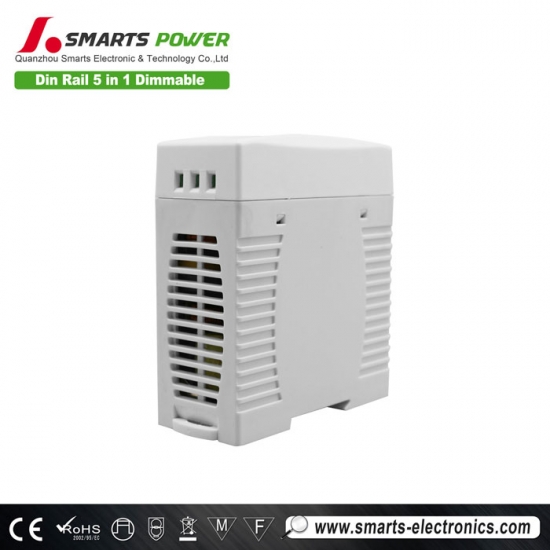

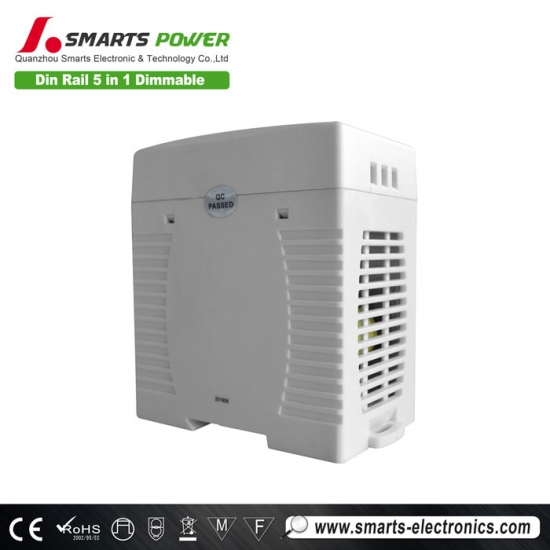

The SMT-024- 096TDDR is low voltage led driver 277v 24volt 96w constant voltage led driver. It's IP20 design for indoor dry or damp environment installations and could use for LED lighting and moving sign applications.
Specification
|
model |
SMT-012-100TDDR |
SMT-024-096TDDR |
||
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Accuracy |
±5% |
±5% |
||
|
Rated current |
8.33Amp |
4.0Amp |
||
|
Rated power |
100W |
96W (Class 2) |
||
|
Voltage Regulation |
±0.5% |
|||
|
Load Regulation |
±1% ±1% |
|||
|
Input |
Voltage Range |
100-277 VAC |
||
|
Frequency Range |
47~63HZ |
|||
|
Power Factor ( Typ.) |
0.98@120VAC ,0.95@277VAC |
0.98@120VAC ,0.95@277VAC |
||
|
|
THD(Typ. ) @ full load |
<20%@120VAC & 277VAC |
||
|
Full Load Efficiency(Typ.) |
83%@120VAC, 85%@277VAC |
83%@120VAC, 86%@277VAC |
||
|
AC Current(Typ.) |
1.3A |
|||
|
Inrush Current(Typ.) |
20A, 50%, 1.6ms @120VAC; 25A, 50% 1.2ms @277VAC |
|||
|
Leakage current |
<0.5mA |
|||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|||
|
Environment |
Working TEMP. |
-40~+60℃ |
||
|
Working Humidity |
20~90%RH,non-condensing |
|||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
|||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13 |
||
|
Withstand voltage |
I/P-O/P:1.88KVac |
|||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
|||
|
Others |
Weight |
0.4Kg |
||
|
Size |
55*90*100mm(L*W*H) |
|||
|
packing |
50PCS/CTN , carton size:330*330*130mm
|
|||
|
Notes |
1. If all dimmable LED drivers we ordered will provide more than 12 or 24 volts? As our some of LED lighting 's voltage is more than 24VDC a bit .
Answer: ±0.5% is the acceptable margin of error for both 12v dc and 24vdc led drivers. |
|||
 |
 |
 |
 |
 |
|
Label
|
|
|
|
