60 watt led driver 277v constant voltage led driver 12v

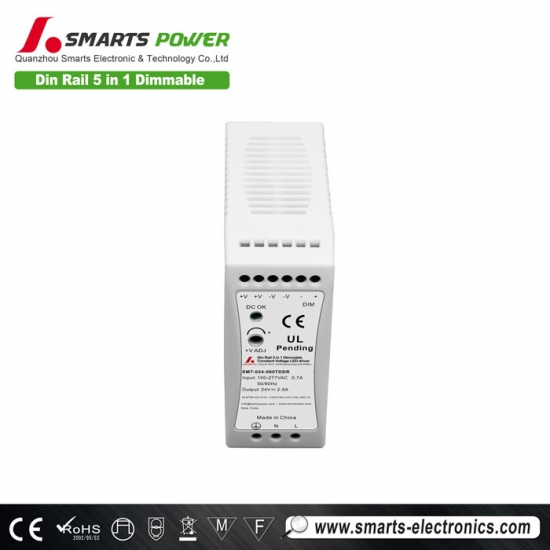

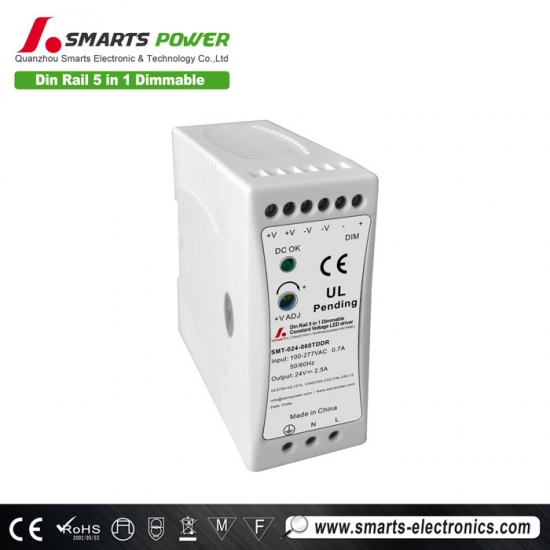

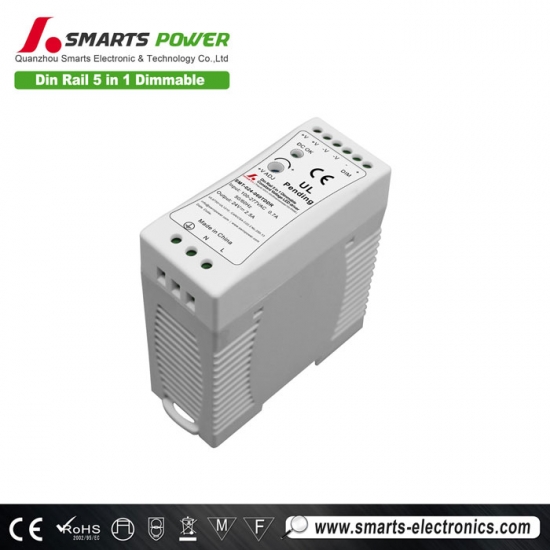

The Din Rail 5 in 1 dimmable led controller SMT-024- 060TDDR is 24vdc 2.5amp 60w constant voltage which could met forward phase /leading edge ,MLV and Reverse & phase /trailing edge & ELV,TRIAC dimmers.0-10V/1-10V/Potentiometer/10V PWM 4 in 1 available.
Specification
|
model |
SMT-012-060TDDR |
SMT-024-060TDDR |
||
|
Output |
DC Voltage |
12VDC |
24VDC |
|
|
Voltage Accuracy |
±5% |
±5% |
||
|
Rated current |
5.0Amp |
2.5Amp |
||
|
Rated power |
60W |
60W |
||
|
Voltage Regulation |
±0.5% |
|||
|
Load Regulation |
±1% ±1% |
|||
|
Input |
Voltage Range |
100-277 VAC |
||
|
Frequency Range |
47~63HZ |
|||
|
Power Factor ( Typ.) |
0.98@120VAC ,0.95@277VAC |
0.98@120VAC ,0.95@277VAC |
||
|
|
THD(Typ. ) @ full load |
<20%@120VAC & 277VAC |
||
|
Full Load Efficiency(Typ.) |
83%@120VAC, 85%@277VAC |
83%@120VAC, 84%@277VAC |
||
|
AC Current(Typ.) |
0.9A |
|||
|
Inrush Current(Typ.) |
14A, 50%, 780us @120VAC; 15A, 50% , 660us @277VAC |
|||
|
Leakage current |
<0.5mA |
|||
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition removed |
||
|
Over Loading |
≤120% Hiccup mode,recovers automatically after fault condition is removed |
|||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|||
|
Environment |
Working TEMP. |
-40~+60℃ |
||
|
Working Humidity |
20~90%RH,non-condensing |
|||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
|||
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 , CAN/CSA-C22.2 No.250.13 |
||
|
Withstand voltage |
I/P-O/P:1.88KVac |
|||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION |
FCC 47 CFR Part 15 ,Subpart B |
|||
|
Others |
Weight |
0.3Kg |
||
|
Size |
40*90*100mm(L*W*H) |
|||
|
packing |
50PCS/CTN , carton size:330*330*130mm
|
|||
|
Notes |
1. When we sell a product, we must assume that the end user may do something stupid, like overload the driver. The temperature was too high at 6.44A. You and I know that a driver should not be loaded more than 80% but the END user is another matter. Therefore it must start overload protection when it at a load of 5.75A.
Answer: Well noted and we will make the power adapters start overload protection when it at a load of 5.75A for your following orders.
|
|||
Using one dimming ---TRIAC/Phase cut dimming
Ø The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a phase /Triac dimmer of lighting system.
Ø Working with forward phase /leading edge ,MLV and Reverse phase /trailing edge ,ELV,TRIAC dimmers
Ø Min loading is about 10%
Ø Please try to use dimmers with power at least 1.5 times as the output power of the driver.
