UL listed ac to dc 24v led power supply 120w for led strip
In order to obtain the best performance and the longest operational life from led strip power supply, it is recommended that you do not exceed 90% of the unit’s output amperage. To determine if this led power supply suits your desired application, add together the total wattage of the equipment you intend to use with this unit and divide this total by 24 volts to find the total amperage draw that will be placed upon the converter.
Specifications
model |
SMT-012-120VWJ |
SMT-024-120VWJ |
|
Output |
DC Voltage |
12V |
24V |
Voltage Accuracy |
±0.5V |
±0.5V |
|
Voltage Regulation |
±0.5% |
||
Load Regulation |
±2% |
||
Rated current |
10.00A |
5.00A |
|
Rated power |
120W |
||
Input |
Voltage Range |
100~277V AC |
|
Frequency Range |
47~63HZ |
||
Power Factor ( Typ.) |
0.99@120VAC 0.96@277VAC |
0.98@120VAC 0.96@277VAC |
|
Full Load Efficiency(Typ.) |
80%@120V 84%@230V 84%@277V |
85%@120V 88%@230V 88%@277V |
|
AC Current(Typ.) |
1.71A@100VAC |
||
Leakage current |
<0.50mA |
||
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
Over voltage |
≦140VAC(100~130V) , ≦270VAC(170~277V) |
||
Environment |
Working TEMP. |
-40~+60℃ |
|
Working Humidity |
20~90%RH,non-condensing |
||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
||
Safety&EMC |
Safety standards |
UL8750, UL1012 |
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
EMC EMISSION |
FCC Part 15 B |
||
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547Alight industry level (surge4KV) |
||
Others |
Weight |
1.3Kg |
|
Size |
220*93*41mm (L*W*H) |
||
packing |
329*279*176mm , 10PCS/ctn |
||
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||

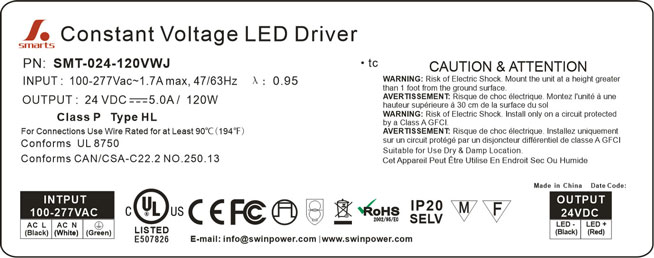

Label |
|
Features
Output constant voltage type
Input voltage range 100-277VAC
Built-in PFC function / PF>0.97 / E fficiency > 87%
Protections:short circuit/over voltage/over heat
IP20 design for indoor or outdoor installations
Cooling by free air convection
UL, cUL listed, Class P, Type HL
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting.

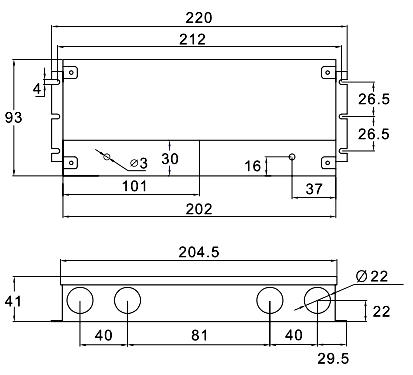

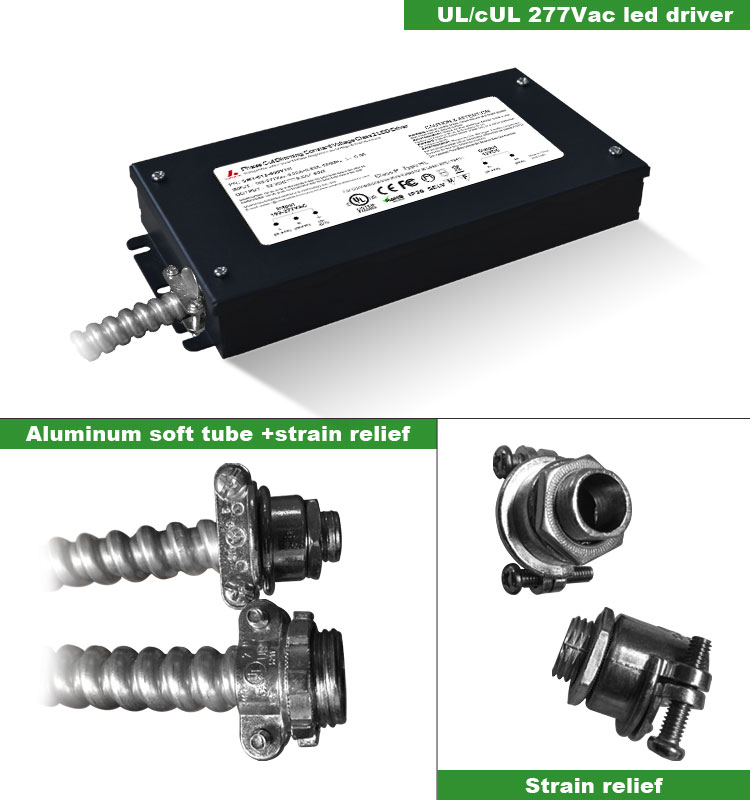

Mechanical Specification
※Input power cord: 18AWG Black and White to be connected to AC L and N ,Green wire go ground
※Output power cord: 16AWG, Red to LED Positive side (+) , Black to LED Negative side (-).

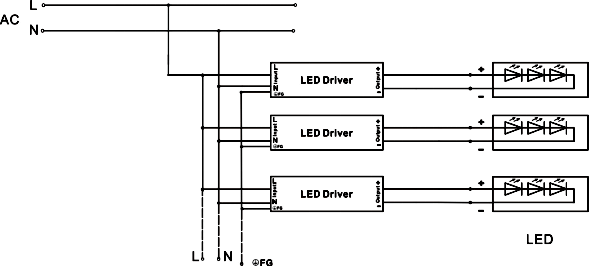

Connecting Diagram
