Smarts 100w led driver is used in numerous applications ranging from roadway, tunnel, high mast, sports, landscape and area lighting to indoor ambient, task, performance and stage lighting. Smarts’ goal is to provide effective, high performance LED driver and lighting solutions.
Specification
|
model |
SMT-012-100VWJ |
SMT-024-096VR |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
8.3A |
4.0A |
|
|
Rated power |
100W |
96W |
|
|
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
0.99@120V ;0.97@230V ;0.97@277V |
||
|
Full Load Efficiency(Typ.) |
>87% |
>88% |
|
|
AC Current（Typ.） |
1.3A @110VAC |
||
|
THD(Typ.)@ full load |
<15% @120V <20%@230V <20% @277V |
||
|
Inrush Current (Typ.) |
20A,50% ,1.6ms@120V ; 30A,50% 200us@230V ; 25A,50% 1.2ms@277V |
||
|
Leakage current |
﹤0.5mA |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault conditionis removed. |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage,automatically recover after cooling. |
||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for60min.each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
||
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
Others |
Weight |
1.3Kg |
|
|
Size |
221*93*40mm (L*W*H) |
||
|
packing |
10PCS/CTN 385*335*200mm 20PCS/CTN |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at120VAC & 277vacinput , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
 |
||
 |
 |
 |
 |

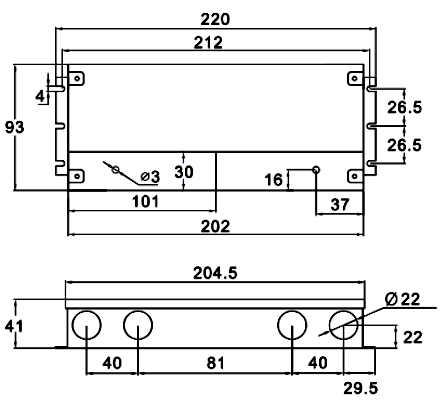

Mechanical Specification

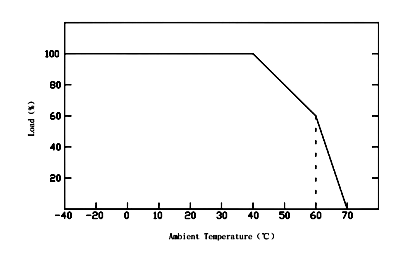

Derating Curve

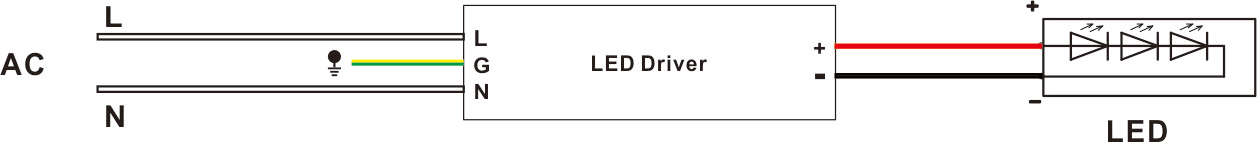

Simple Connection Diagram
