touch dali dimmable switch 100-265VAC

The SMT-M3 dali dimmer is DALI Signal with 1 output channel ,the working temperature is -20℃-60℃.

item no.:
SMT-M3
brand:
SMARTS
Input Voltage:
100-265vac
Certification:
CE ROHS
Warranty:
3 YEARS WARRANTY

inquiry now

product details

touch dali dimmable switch 100-265VAC

The SMT-M3 dali dimmer is touch dimmer switch which could easy to install and easy to use.It's could work with our dali dimmable led driver very well.

Technical Parameters

Power Supply :Provided by DALI Bus

Output Signal:DALI Signal

Static power:<0.5W

Current Consumption:25mA±10%

Output channel:1 channel

Product dimension:L86*W86*H38mm

Packing size:L116*W110*H51.5mm

Working temperature:-20℃-60℃

Net weight:170g

Gross weight:228g

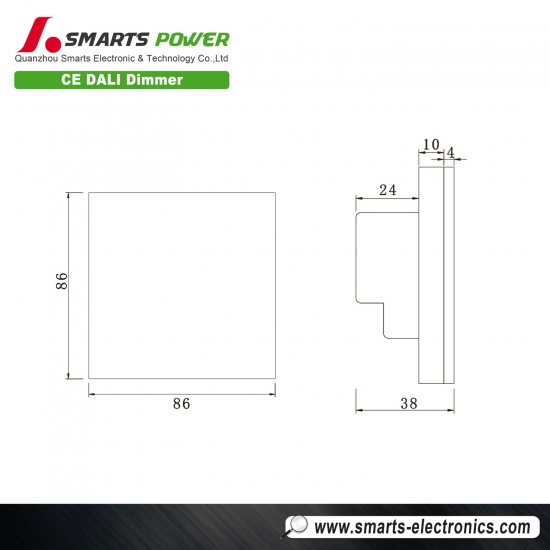

Product Size

dimmer switch for led downlights

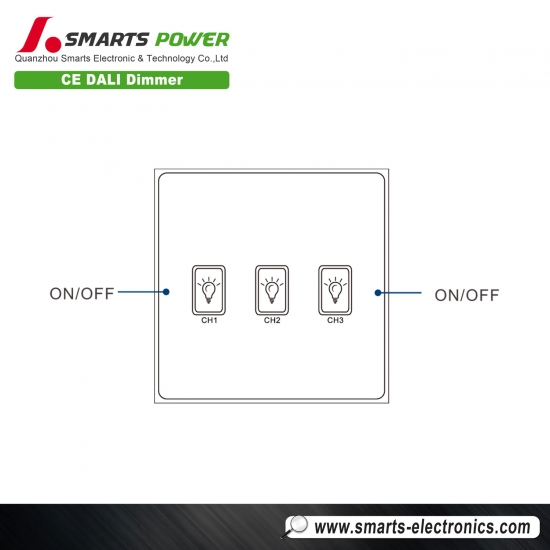

Funtion Description

Typical Application

Fine:Set the minimum brightness using the set-screw(Fine)

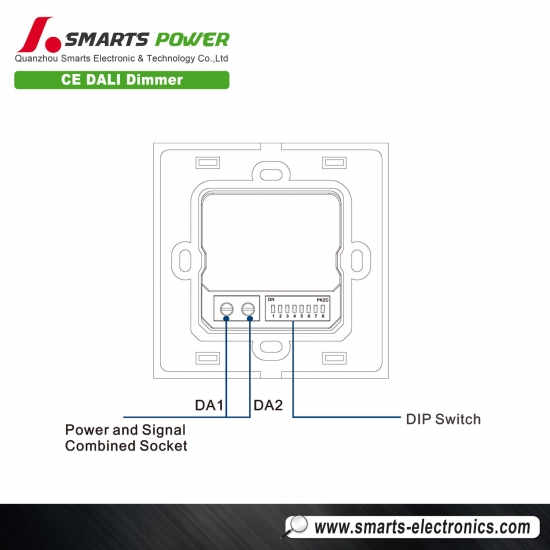

Interface Introduction

dimmer switch for led downlights

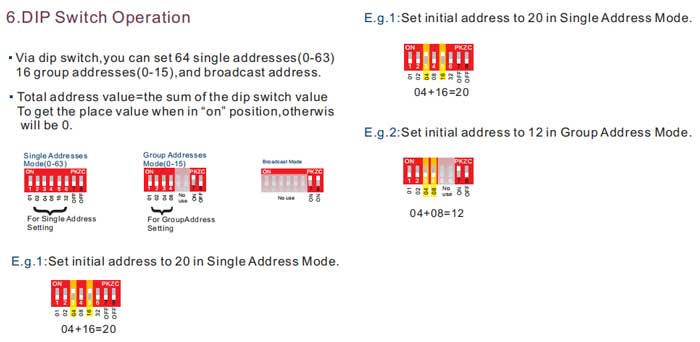

DIP Switch Operation

dimmer switch for led downlights

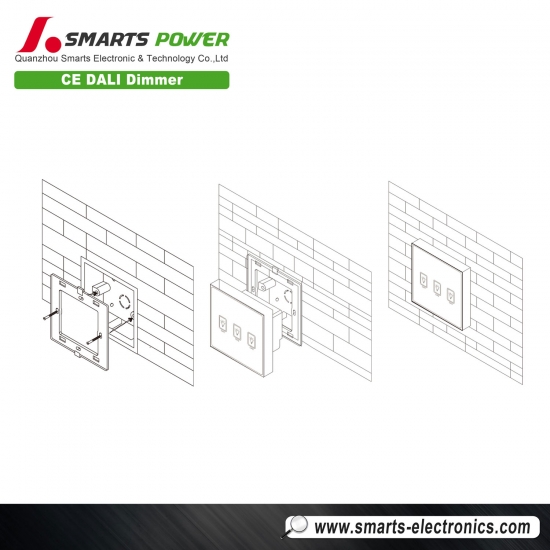

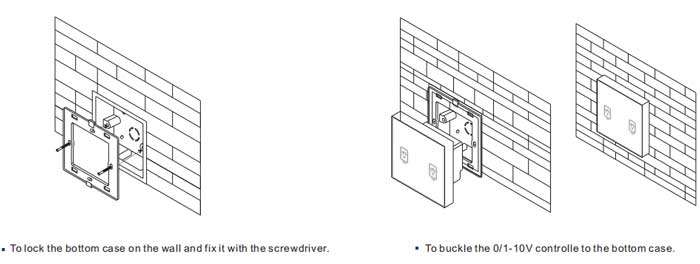

Installation Instruction

dimmer switch for led downlights
