small lamp dimmer switch with simple operating

SMT-M1 is the lamp dimmer switch. You can manually turn on or off your strip or touch the switch. it's easy to operate.

item no.:
SMT-M1
brand:
SMARTS
Input Voltage:
100-265vac
Certification:
ce rohs
Warranty:
2 years warranty

inquiry now

product details

small lamp dimmer switch with simple operating

Smarts Electronics has issued series simple dimmer switch with easy operate. Those lamp dimmer switch are overload & overheat protections, make your home safer. Single live wire control, easy to install, replace the old switch directly.

Technical Parameters

Power Supply :Provided by DALI Bus

Output Signal:DALI Signal

Static power:<0.5W

Current Consumption:25mA±10%

Output channel:1 channel

Product dimension:L86*W86*H38mm

Packing size:L116*W110*H51.5mm

Working temperature:-20℃-60℃

Net weight:170g

Gross weight:228g

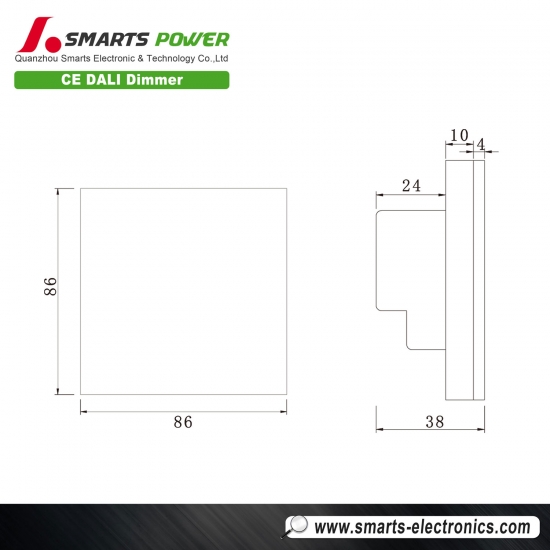

Product Size

smart light switch dimmer

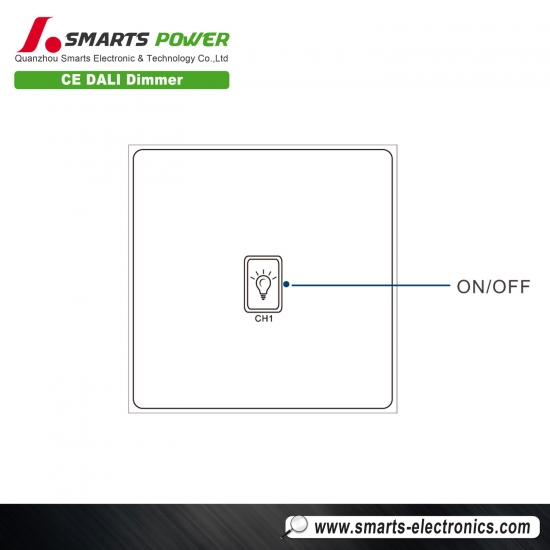

Funtion Description

smart light switch dimmer

Typical Application

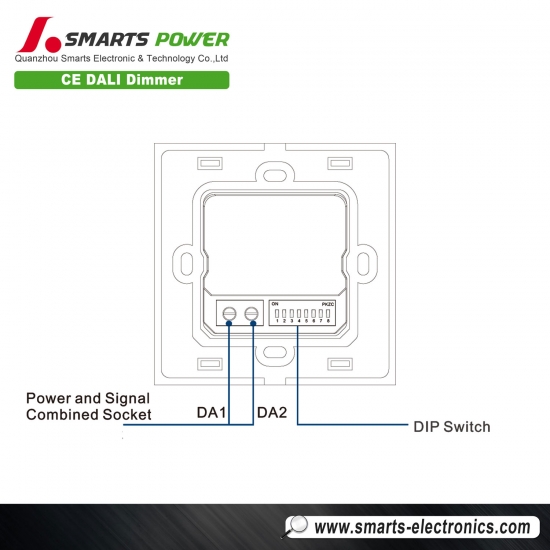

Interface Introduction

smart light switch dimmer

DIP Switch Operation

smart light switch dimmer

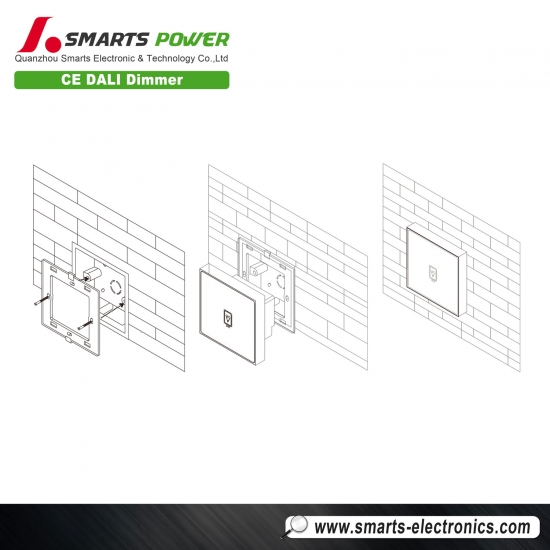

Installation Instruction

smart light switch dimmer

Question

.Just to confirm the drivers are Three In One Dimming Function Compatible With Leading-edge/Trailing-edge Dimmer, No Flicker? No Min load?

Answer

Our Triac dimmable led drivers are compatible with Leading-edge/Trailing-edge Dimmer,no flicker,no min load.
