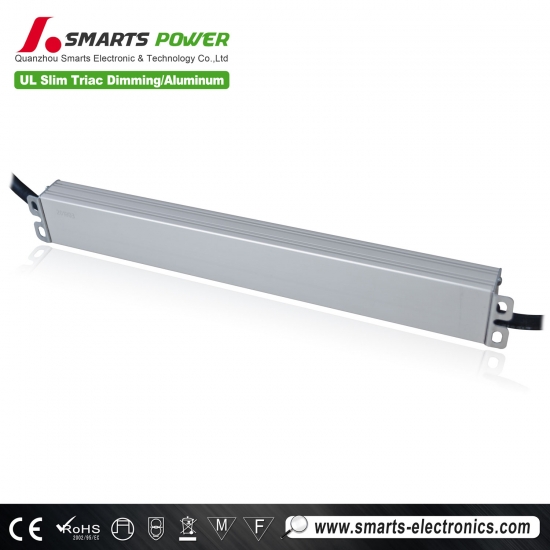

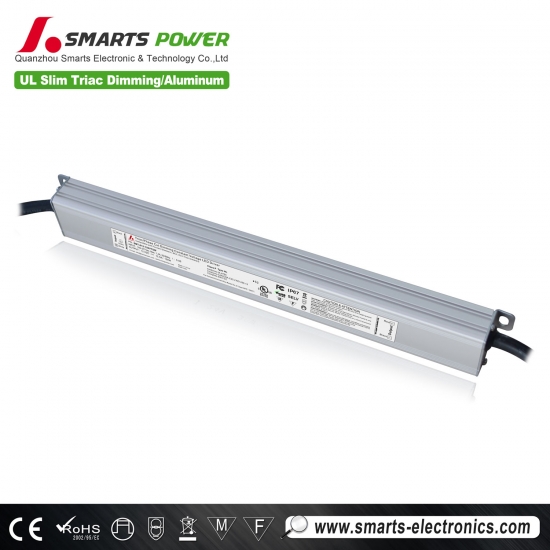

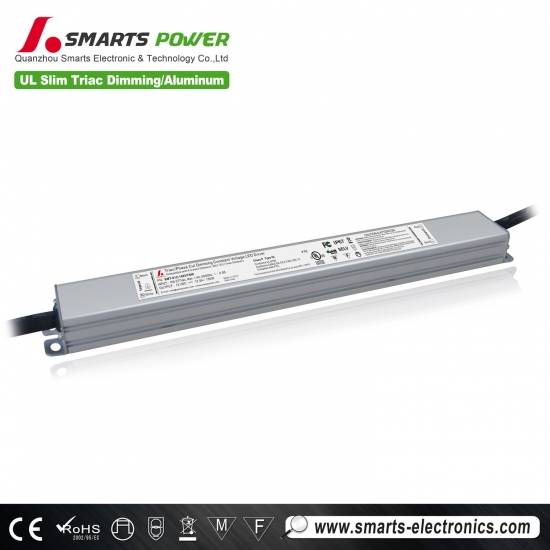

slim power supply 150w 12v 24v for outdoor lighting
Smarts no flicking 12v 150w led rainproof power supply could drive Amax Lighting led strip mirror project with 7 years warranty( for 8-12hours per day).
Specification
model |
SMT-012-150VTSW |
SMT-024-150VTSW |
|
Output |
DC Voltage |
12VDC |
24VDC |
Voltage Accuracy |
±5% |
±5% |
|
Rated current |
12.5A |
6.25A |
|
Rated power |
150W |
||
Voltage Regulation |
±0.5% |
||
Load Regulation |
±1% ±1% |
||
Input |
Voltage Range |
100-277 VAC |
|
Frequency Range |
47~63HZ |
||
Power Factor ( Typ.) |
PF≧0.95/110V ; PF≧0.97/277V |
||
Full Load Efficiency(Typ.) |
>89% |
>91% |
|
AC Current(Typ.) |
1.90A/100VAC / 0.82A/277VAC |
||
Inrush Current(Typ.) |
59.2A/212us@50%Ipeak |
||
Leakage current |
<0.50mA/110VAC; ﹤0.13mA/277VAC |
||
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
Over Loading |
≤120% Hiccup mode, recovers automatically after fault condition is removed. |
||
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
Environment |
Working TEMP. |
-40~+60℃ |
|
Working Humidity |
20~90%RH,non-condensing |
||
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
||
Safety&EMC |
Safety standards |
UL8750 |
|
Withstand voltage |
I/P-O/P: 3.75KVAC |
||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||
EMC EMISSION |
FCC Part 15 B |
||
Others |
Weight |
0.75Kg |
|
Size |
368*32*23mm (L*W*H) |
||
packing |
50PCS/CTN |
||
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |

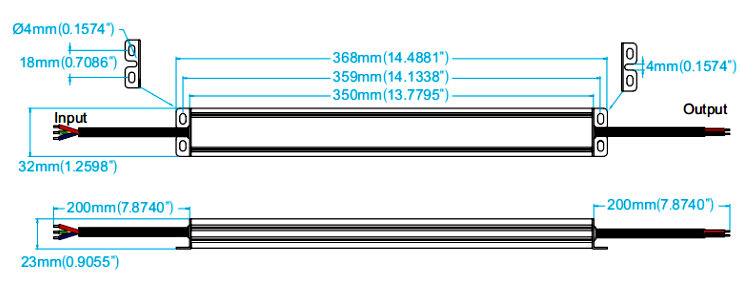

Mechanical Specification

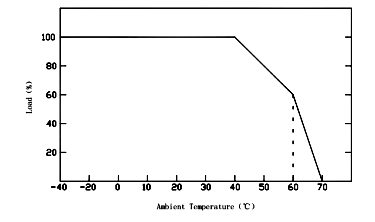

Derating Curve

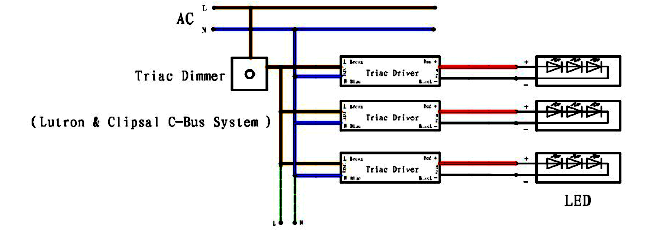

Connecting Diagram
Application

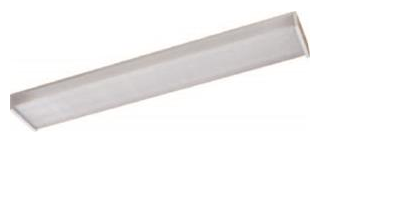

SMT-012-150VTSW slim power supply 150w output power could drive Amax Lighting LED WRAPAROUND FIXTURES 4100K, for indoor and outdoor project.
Related Products
12v 120w led strip led driverwhich input 100-277vac workable for North america and Canada which meet ...

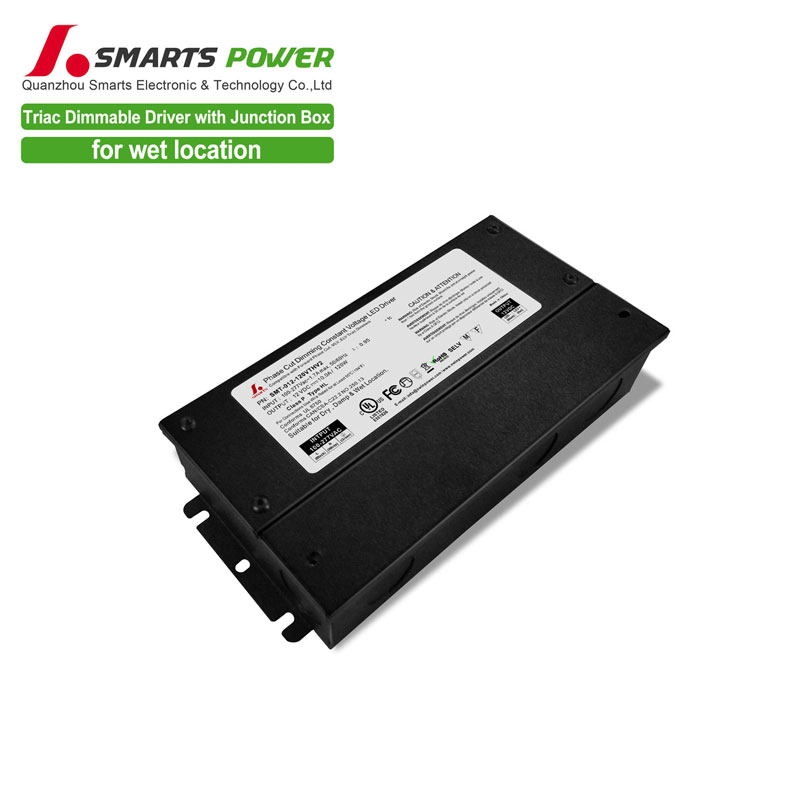

Mode:SMT-012-120VTHV2 intput voltage:100~277VAC Size : 220*94.5*40mm Working mode: constant voltage Dimming mode: Triac dimmable |
