Non-dimmable LED Driver

12v 24v triac dimmable led ceiling light driver 150w indoor

Smarts 24v constant voltage dimmable led driver 150w triac dimmable led driver has a slim size about 330*30*22mm, the PF>0.99 &  efficiency>87% which could compliance to worldwide safety regulations for superior lighting LED Panel Light triac dimming.


  • item no.:

    SMT-024-150VTSP
  • brand:

    SMARTS
  • payment:

    T/T, Paypal, Western Union
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    12v/24vdc
  • Output Current:

    12.5a/6.25amp
  • Working Mode:

    constant voltage
  • Certification:

    CE,UL, FCC,Class 2, Class p, type HL, RoHS
  • Warranty:

    7 years warranty
inquiry now
product details

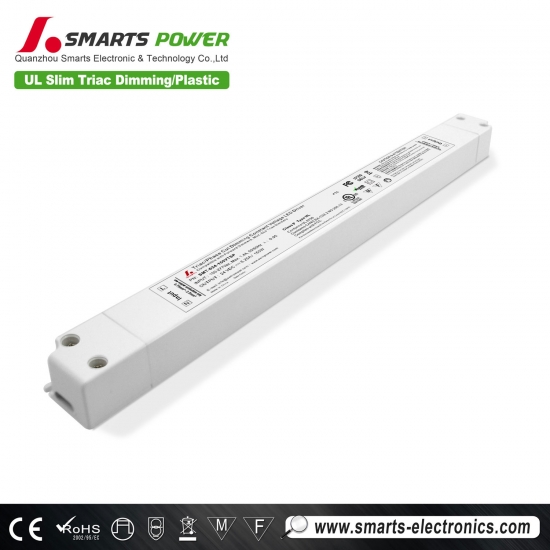

12v 24v triac dimmable led ceiling light driver 150w indoor

SMT-024-150VTSP is 24v constant voltage dimmable led driver. It is 150w triac dimmable phase cut dimming led driver. It is can match with superior lighting LED strip indoor project.


 Specification



model

SMT-012-150VTSP

SMT-024-150VTSP

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

12.5A

6.25A

Rated power

150W

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≧0.99/110V ;  PF≧0.98/277V

Full Load Efficiency

>89%

>91%

AC Current(Typ.)

1.90A/100VAC  /  0.82A/277VAC

Inrush Current(Typ.)

59.2A/212us@50%Ipeak

Leakage current

<0.50mA/110VAC; ﹤0.13mA/277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% Hiccup mode, recovers automatically after fault condition

is removed.

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.



Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,2G 10min./1 cycle,period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750

Withstand voltage

I/P-O/P: 3.75KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

0.65Kg

Size

368*30*22.5mm (L*W*H)

packing

50PCS/CTN



Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top

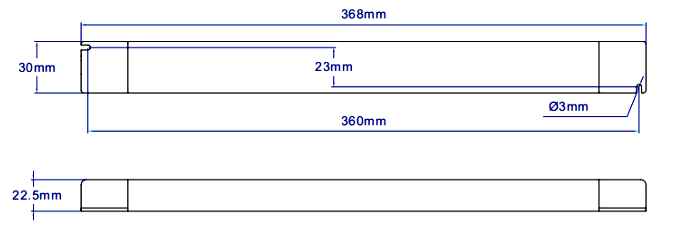

 Mechanical Specification


led ceiling light driver

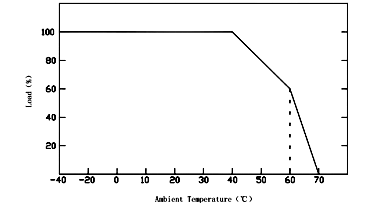

 Derating Curve


led ceiling light driver

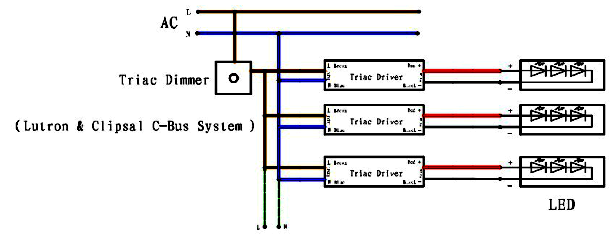

 Connecting Diagram


led ceiling light driver



 Application

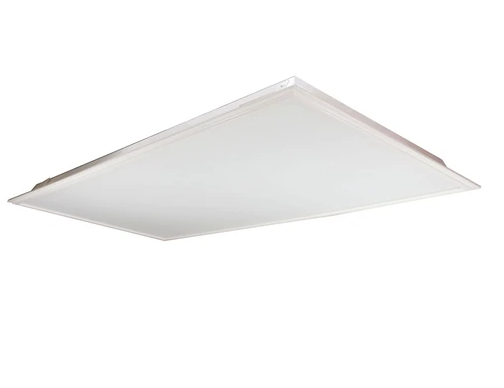

Smarts SMT-024-150VTSP 24v 150w small led power supply is the best choose for led driver application, which workable for superior lighting LED Panel Light 4000K cool white.

power driver for led


 Related Products


                                                                 led line driver

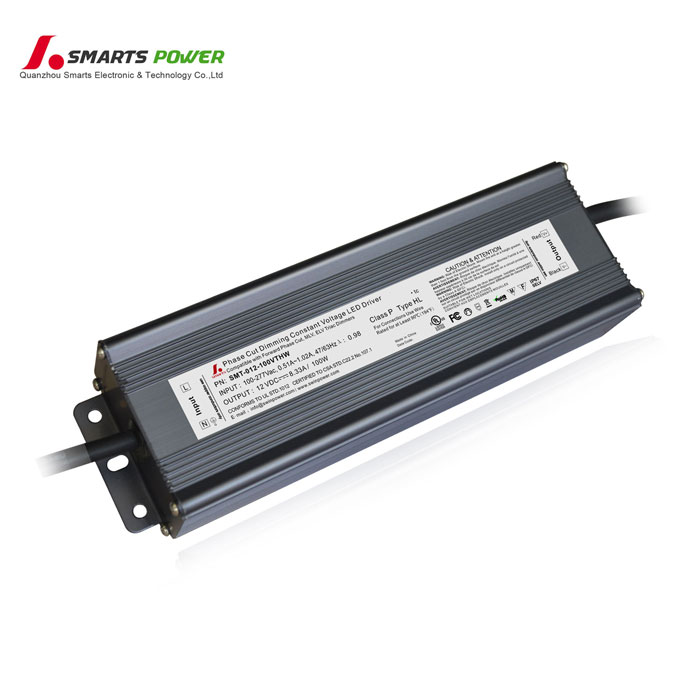

UL 277VAC triac dimmable led driverwaterproof IP67 for
