36 watt 24v constant voltage dimmable led driver
Brief specification of 24v constant voltage dimmable led driver LED transformers UL 110-277vac:
- UL/cUL, FCC, CE, ROHS approved.
- input: 100-277vac
- 7 years warranty
- PF:0.95 , Efficency: 87%
- PWM output
- no load limitation.
- compatible with Forward phase, Reverse phase, leading edge, trailing edge, Triac, MLV ,ELV Dimmers.
Detailed specification
|
model |
SMT-012-030VTSW |
SMT-024-030VTSW |
|
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
|
Rated current |
2.5Amp |
1.25Amp |
|
|
Rated power |
30W |
30W |
|
|
Voltage Regulation |
±0.5% |
||
|
Load Regulation |
±1% ±1% |
||
|
Input |
Voltage Range |
100-277 VAC |
|
|
Frequency Range |
47～63HZ |
||
|
Power Factor ( Typ.） |
PF≧0.99/110V ; PF≧0.98/277V |
||
|
Full Load Efficiency（Typ.） |
>79% |
>81% |
|
|
AC Current（Typ.） |
0.5A/100VAC / 0.13A/277VAC |
||
|
Inrush Current（Typ.） |
7A, 50%, 420us |
||
|
Leakage current |
<0.27mA/110VAC; ﹤0.25mA/277VAC |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
||
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750+UL1310 |
|
|
Withstand voltage |
I/P-O/P:2KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,,11, , Alight industry level |
||
|
Others |
Weight |
0.35Kg |
|
|
Size |
260*32*20mm (L*W*H) |
||
|
packing |
50PCS/CTN
|
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
| Label |
 |
||
 |
 |
 |
 |
 |
|

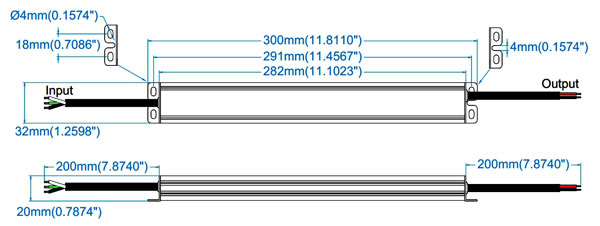

Mechanical Specification

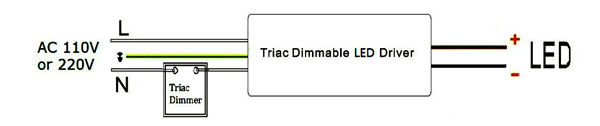

Connecting diagram
