SAA 200w 12v lighting transformer dc 12v triac dimmable led driver

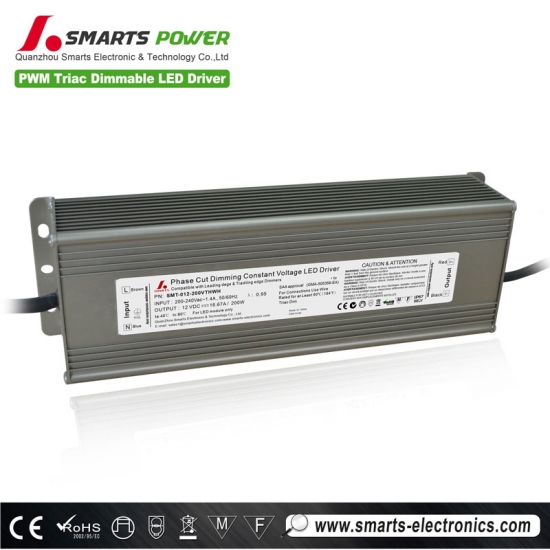

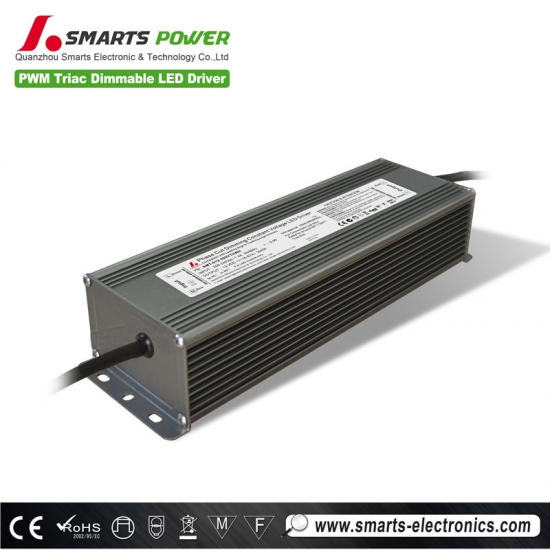

SMT-012-200VTHWH is 200w 12v transformer SAA triac dimmable. It is able to dimming well with leading edge and traling edge dimmers. Dimming is very smoothly with 0-100% dimming range. It has longer warranty years 7 years with high quality level. It is matching with EURI LIGHTING's LED Fixture.
Product parameters
model |
SMT-012-200VTHWH |
SMT-024-200VTHWH |
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
Rated current |
16.66A |
8.33A |
|
Voltage Tolerance |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
|
|
Load Regulation |
±2% |
±1% |
|
Rated power |
200W |
200W |
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47~63HZ |
|
|
Power Factor ( Typ.) |
PF≥0.95(Full loading) |
|
|
Full Load Efficiency(Typ.) |
>88% |
>90% |
|
AC Current(Typ.) |
1.4A |
1.4A |
|
Leakage current |
﹤0.5mA/110V |
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|
|
Over Loading |
≤120% constant current limiting, auto-recovery |
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
|
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
|
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes |
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
|
|
EMC Immunity |
EN61000-4-2,3,4,5,6 ,11,EN61547 |
|
|
EMC EMISSION |
EN55015,EN61000-3-2,3 (≥60%loading) |
|
Others |
Net Weight |
1.45Kg |
|
|
Size |
265*78*47mm (L*W*H) |
|
|
packing |
265*83*65mm inner box, 340*280*185mm outside carton 10PCS /CTN |
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3.Loading range from 10% to 100% |

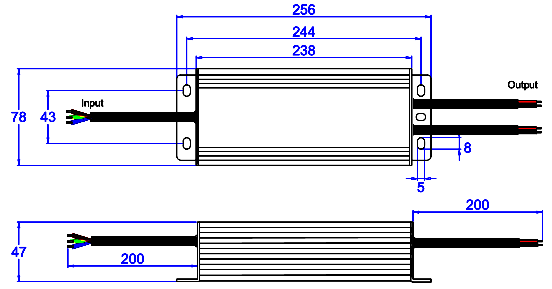

Mechanical Specification

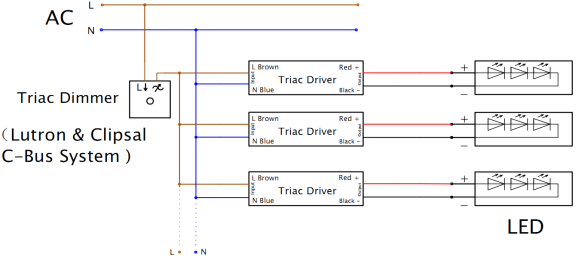

CompatibleDimmer Type

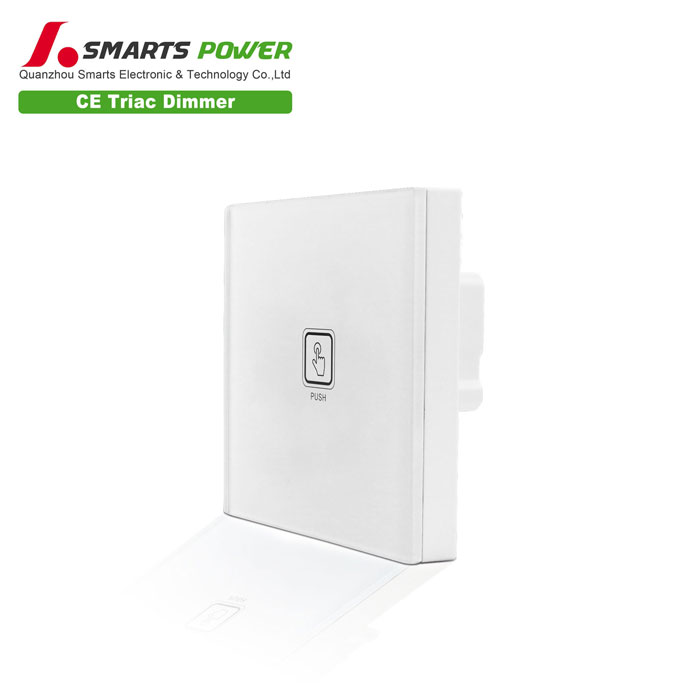

SMT250-T1 is 220Vac triac dimmer. It has CE ROHS certificate. It is easy to install and control: When dimmer is off, short press to turn on it and reach the pervious brightness level. When dimmer is on, short press to turn off. It is dimming well with maxlite's flexible led strip.
Related Products

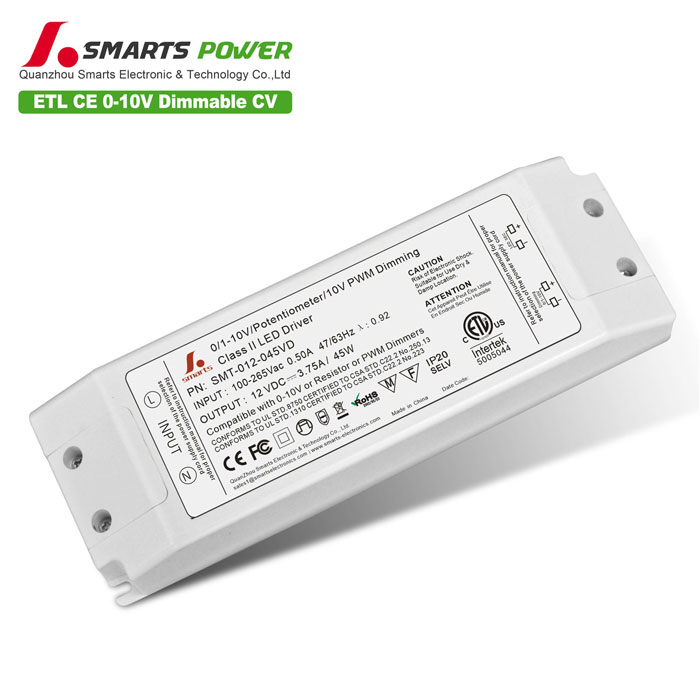

It is 12v 45w 0-10v dimmable led driver. It has CE SAA ETL FCC ROHS approval. It is hot sale in the market.
