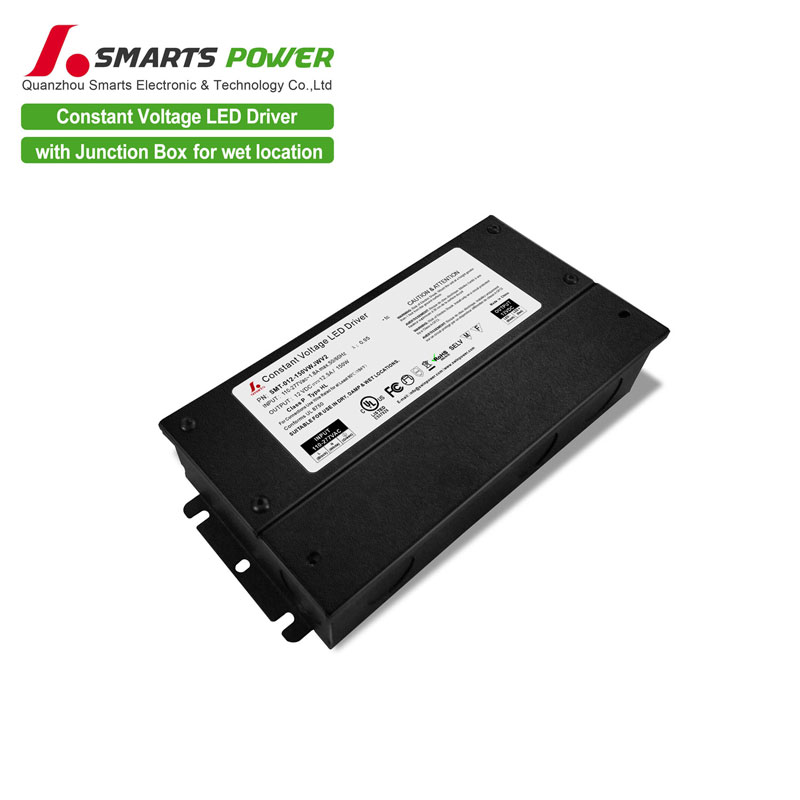

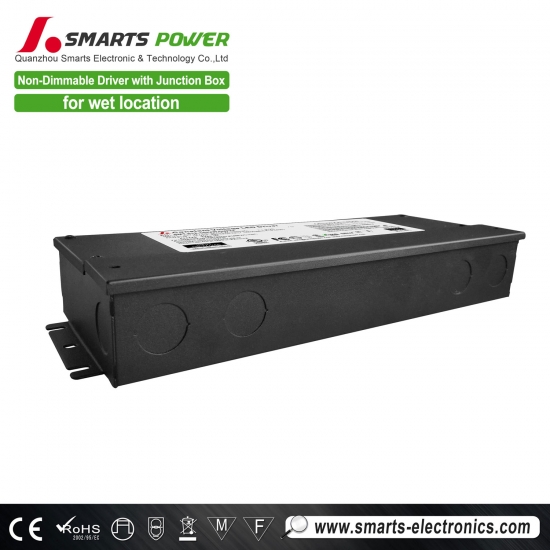

multiple output 277v input voltage 180w 12vdc led driver for led strip

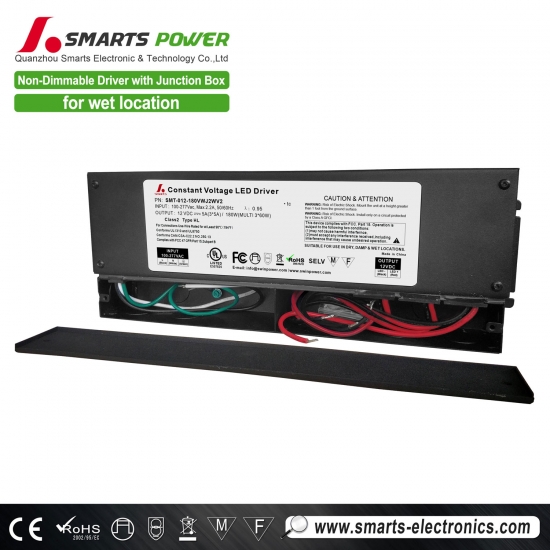

Simply remove end caps to access on-board terminal block connectors; use 14`18AWG 3C cable to tie in with 120-volt AC line voltage led driver for led strip, designed for Lumilum waterproof RGB lights. Connect up to 100% of the rated 180-watt maximum load.
Product parameters
Model
SMT-012-180VWJ2 (1.0 version)
SMT-012-180VWJ2V2 (2.0 version)
SMT-012-180VWJ2WV2 (3.0 version)
SMT-024-192VWJ2 (1.0 version)
SMT-024-192VWJ2V2 (2.0 version)
SMT-024-192VWJ2WV2 (3.0 version)
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
±1%
Rated current
3*5A
2*4A
Rated power
180W(3*60W)
192W (2*96W)
Input
Voltage Range
100-277VAC
Frequency Range
47-63Hz
Power Factor(Typ.)@ full load
0.99@120VAC 0.94@277VAC
0.99@120VAC 0.94@277VAC
THD（Typ.）@ full load
<20%
<20%
Efficiency(Typ.)@ full load
87%@120V 89%@277VAC
79%
88%@120V 90%@277VAC
AC Current（Max.）
2.2A@100VAC
2.3A@100VAC
Inrush Current （Typ.）
19A ,50%,1.3ms @120VAC ; 38A,50%,960us @277VAC
12.4A (twidth=430us) @277VAC
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition is removed
Over Loading
≤120% Hiccup mode ,recovers automatically after fault condition is removed
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃ (see below derating curve)
Working Humidity
20～90%RH, non-condensing
Storage TEMP. Humidity
-40～+80℃，10～95%RH
TEMP .coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes
Safety& EMC
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC 47 CFR Part 15 ,Subpart B
Others
Weight
2.0Kg (1.0 version)
Size

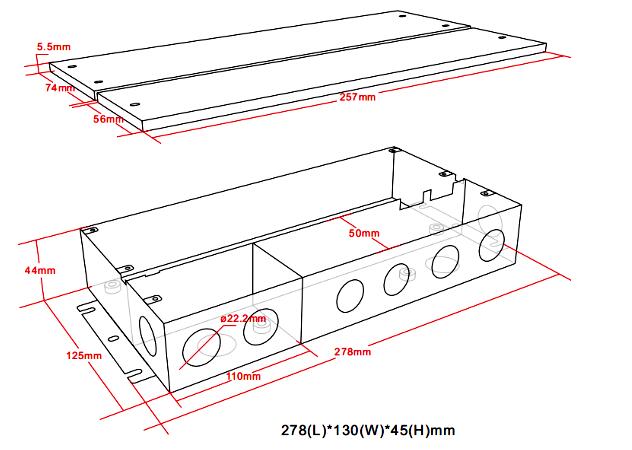

1.0 version:278*108*46mm / 2.0 version:278*110*45mm
3.0 version:278*130*45mm
packaging
285*275*245mm/10pcs /CTN / G.W.:22.10KG/CTN (1.0 version)
385*335*200mm 20PCS/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |
Mechanical Specification
Compatible strip lighting Type
Hitlights UL-Listed LED Strips are thin and discreet lighting products that can be mounted directly on most surfaces to provide professional-quality lighting effects with low voltage dc transformer.
