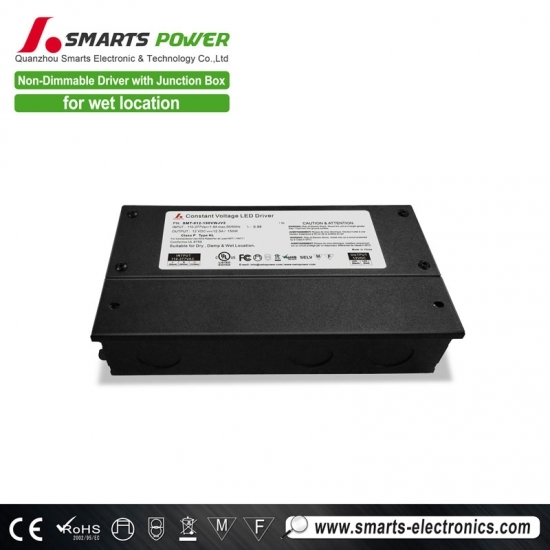

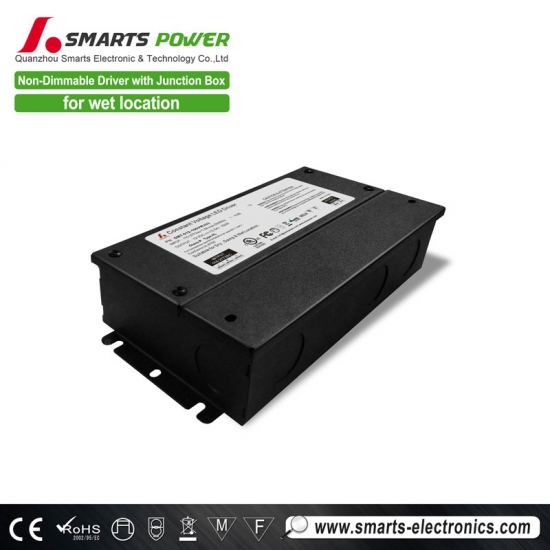

Hard wired led power supply 12v 150w waterproof for wet location

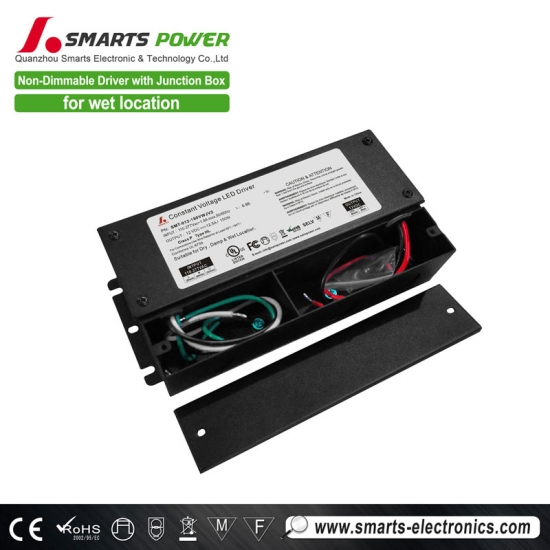

This led power supply 12v150w has an integrated junction box, as well as short-circuit, overload, and over-temperature protection. It has 6 total knockouts, for easy powering access. Shielded in a durable, vented enclosure, could works with LEDMO 12V RGB LED strip kit for bedroom.
Product parameters
Model
SMT-012-150VWJ (1.0 version)
SMT-012-150VWJV2 (2.0 version)
SMT-012-150VWJWV2 (3.0 version)
SMT-024-150VWJ (1.0 version)
SMT-024-150VWJV2 (2.0 version)
SMT-024-150VWJWV2 (3.0 version)
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Rated current
12.5A
6.25A
Rated power
150W
Input
Voltage Range
110-277VAC
Frequency Range
47-63Hz
Power Factor(Typ.)@ full load
0.99@120V ;0.97@230V ;0.95@277V
0.99@120V ; 0.96@230V ;0.94@277V
THD(Typ.)@ full load
<10% @120V <20%@230V <20% @277V
Efficiency (Typ.) @ full load
85%@120V 89%@230V 88%@277V
86%@120V 89%@230V 88%@277V
AC Current (Max.)
1.8A (100VAC)
Inrush Current (Typ.)
15A,50% ,1.4ms@120V ;55A,50% 220us@230V ; 30A,50% 1.4ms@277V
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% constant current limiting, auto-recovery
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40~+60℃ (see below derating curve)
Working Humidity
20~90%RH, non-condensing
Storage TEMP. Humidity
-40~+80℃,10~95%RH
TEMP .coefficient
±0.03%/℃(0~50℃)
Vibration
10～500Hz, 5G 10min./1 cycle, period for 60min. each along X,Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
N.W.
1.5Kg/pcs
Size
1.0 version: 260*103*46mm / 2.0 version:260*105*45mm /3.0 version:260*125*45mm
packaging
440*295*145mm ,10PCS/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |

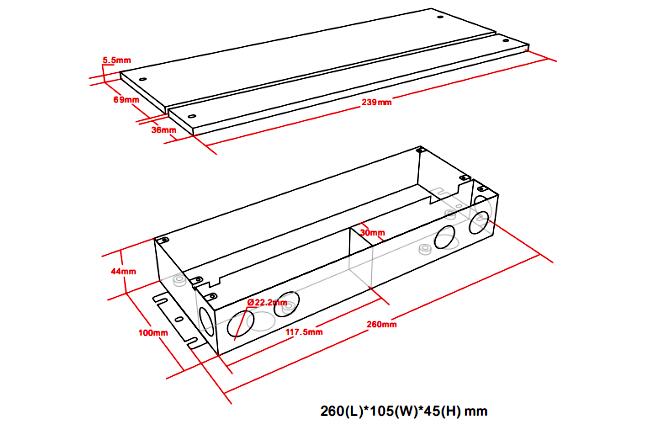

Mechanical Specification
Compatible strip lighting Type

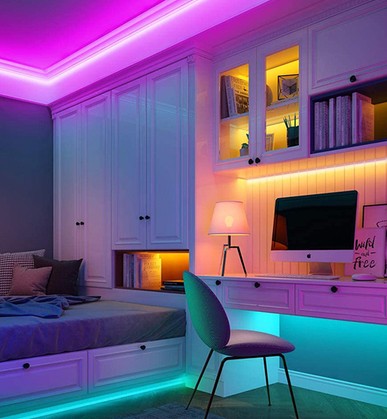

The LED Montreal RGB + Single color Strip lights will output the full RGB Spectrum, this chromatic prowess is achieved with special 5050 Chips that integrate 4 separate lights: Red, Green, Blue and White, performs well together with led power supply 12v 150w SMT-012-150VWJV2.
Related Products

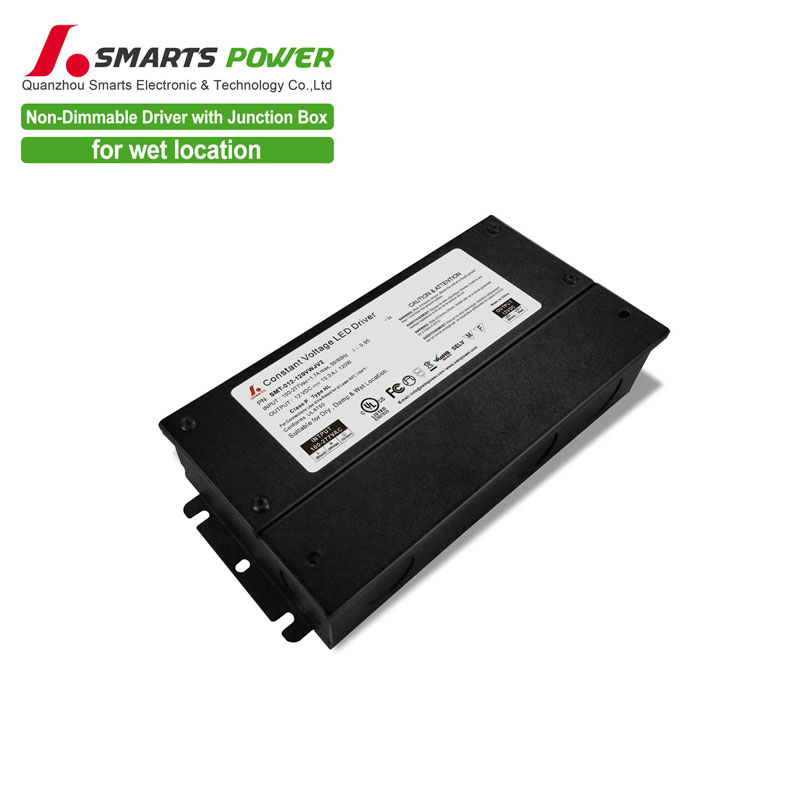

A 12v dc led power supply transformer 120W LED driver that comes in a metal-case and features an active PFC.
