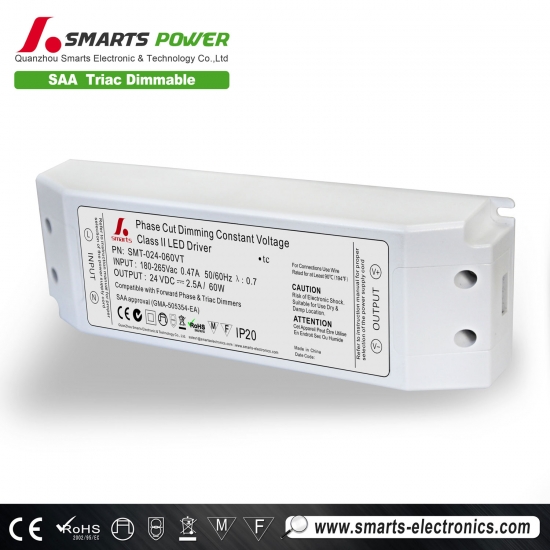

ETL listed 24 volt 60w triac dimmable led strip power supply
|
Dimming Operation |
|
|
24 volt 60w triac dimmable led strip power supply, the Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer. Usually matching with leading edge/Forward Phase Triac Dimmers( Can customized as a driver only matching trailing edge/reverse phase Triac Dimmers if needed). Please try to use dimmers with power at least 2.5 times as the output power of the driver.for Forward phase,Magnetic low voltage and Triac Dimmers |
Specification
DC Voltage 12V/24V
Voltage Tolerance ±0.5V
Rated power 60W
--Input
Voltage Range 100～130V/170-265VAC
Frequency Range 50～60HZ
--Environment
Working TEMP. -40～+60℃
Working Humidity 20～90%RH,non-condensing
Storage TEM.,Humidity -40～+80℃，10～95%RH
TEMP.coefficient ±0.03%/℃（0～50℃）
Vibration 10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
--Safety&EMC
Safety standards EN-60950-1, EN61347-1/-2/-13
Withstand voltage I/P-O/P:3.75KVAC
Isolation resistance I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION Compliance toEN55015,EN61000-3-2 (≧50%load)
EMC IMMUNITY Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11, EN61547
Alight industry level （surge4KV）
Mechanical Specification
※Input Brown with AC (L),Blue with AC(N),Green/Yellow with AC(G)
※Output Red is（DIM+）,Black is（DIM-）
※Note: Any other requests we can customized.
Dimming Operation of constant voltage dimmable led driver
※Output constant current level can be adjusted through input terminal of the AC phase line(L) by connection a triac dimmer.
※Compatible with Leading edge or tailing edge triac dimmers.
※please try to use the small power dimmer, have access to a wider dimming range, high-power dimmer is difficult to achieve the output current to zero

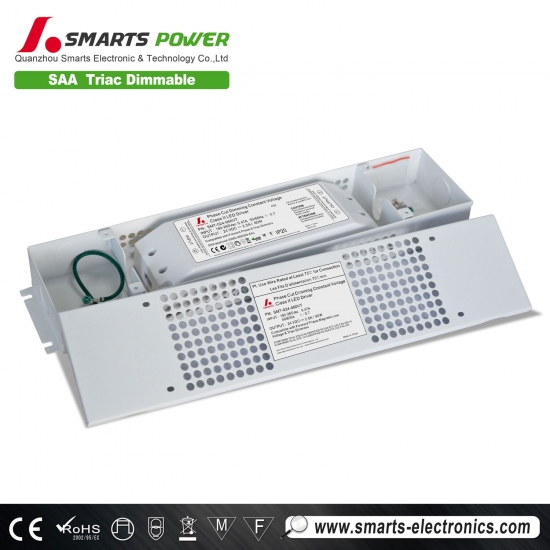

Dimmable led driver with relative Junction Box attached
