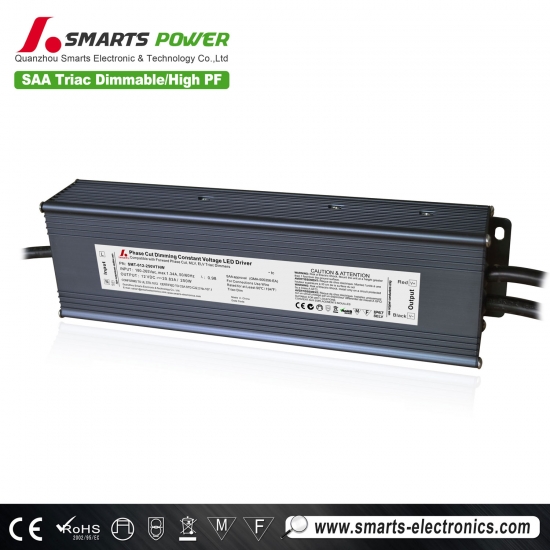

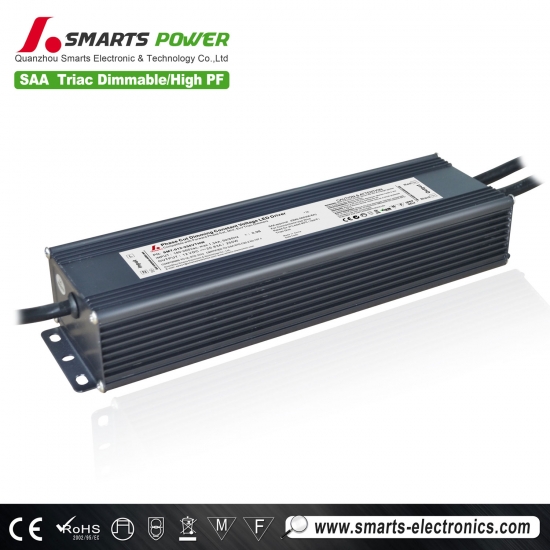

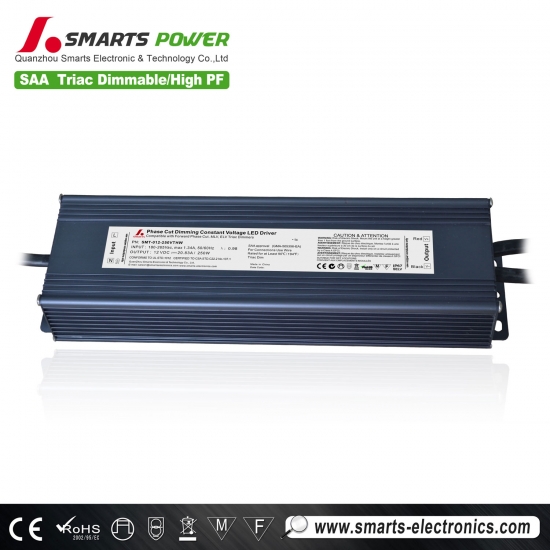

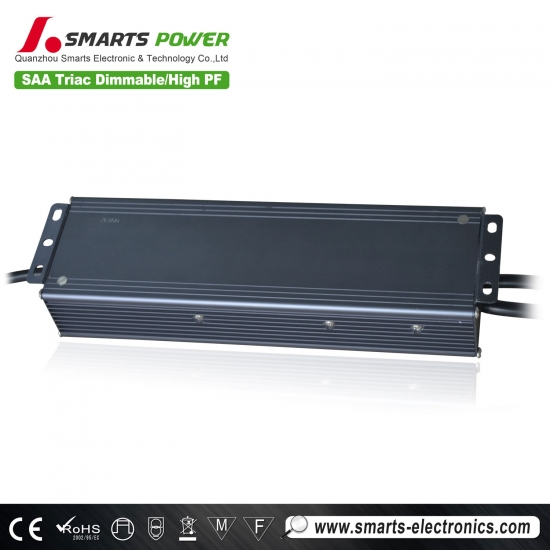

Non-dimmable LED Driver

Dimmable 12vdc Transformer Strip Light Waterproof Led Driver Ac Power Supply

·Built-in PFC function / PF>0.97 / Load range: 10~100%
·Efficiency >82% / Dimming range: 0~100%
·Protections:short circuit/over voltage/over heat ·PWM output, does not change the color index
·IP67 design for indoor or outdoor installations
·Cooling by free air convection / Flicker-free
·Work with leading edge and trailing edge TRIAC dimmers
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lightings
  • item no.:

    SMT-012-250VTHW
  • brand:

    SMARTS
  • Input Voltage:

    180-265VAC
  • Output Voltage:

    12VDC
  • Output Current:

    20.83AMP
  • Working Mode:

    constant voltage
  • Certification:

    SAA,CE,ROHS
  • Warranty:

    7 years warranty
inquiry now
product details

Dimmable 12vdc Transformer Strip Light Waterproof Led Driver Ac Power Supply


Smarts Electronics' SMT-012-250VTHW Led driver power supply is the perfect choice for use in Schools, Hospitals, and Shopping Malls or for any commercial application that 265V is present. The strip light power supply are paired with relative junction box. This unit can be operated with input current ranging from 180 to 265 VAC and will output 250 watt 12 Volt DC current at 20.83 amps. This power supply features an IP67 rated design, making it suitable for indoor and outdoor use and includes integral short circuit and overload protection that will shut down the unit in case of faults and overloads to protect the unit and connected equipment from damage.


  Specification

Model

SMT-012-250VTHW

SMT-024-250VTHW

Output

DC Voltage

12V

24V

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Voltage Tolerance

±0.5V

Load Regulation

±2% ±1%

±1%

Rated current

20.83A

10.41A

Rated power

250W

Input

Voltage Range

180-265VAC

Frequency Range

47~63HZ

Power Factor(Typ.)@ full load

0.98@180VAC  0.97@265VAC

0.98@180VAC  0.97@265VAC

THD(Typ.)@ full load

<20%

Inrush Current (Typ.)

20A, 50%, 1.4ms

Full Load

Efficiency(Typ.)

>83%

>83%

AC Current(Typ.)

2.56A@110VAC 1.76A

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over load

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Over Current

≤1.4*I out

Environment

Working TEMP.

-40~+60℃

Working Humidity

20~90%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz 2G 10min./1 cycle,period for 60min.each along X,Y,Z axes







Safety&EMC

Safety standards

SAA

Withstand voltage

I/P-O/P: 3.00KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to  FCC Part 15 B

EMC IMMUNITY

EN61000-4-2,3,4,5,6,11(Surge 4KV)

Others

Weight

1.75Kg

Size

276*78*47mm (L*W*H)

packaging

10PCS/CTN 385*335*200mm     20PCS/CTN

Notes

Can we make our company information on the label?

Answer:

--As per the policy of ETL/UL,  we can not make changes on the labels at liberty. If we make changes as your requirement , then our company will be punished if the ETL/UL department discover it . Really sorry for that and caused you so much trouble..

--If making changes on the labels are necessary for your company, I suggest you multi-list of our ETL/UL certification , then we can help you design the new label as requested.What is your opinion?
