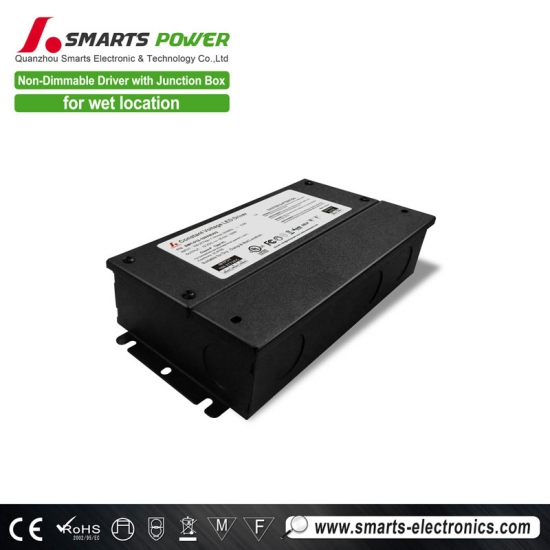

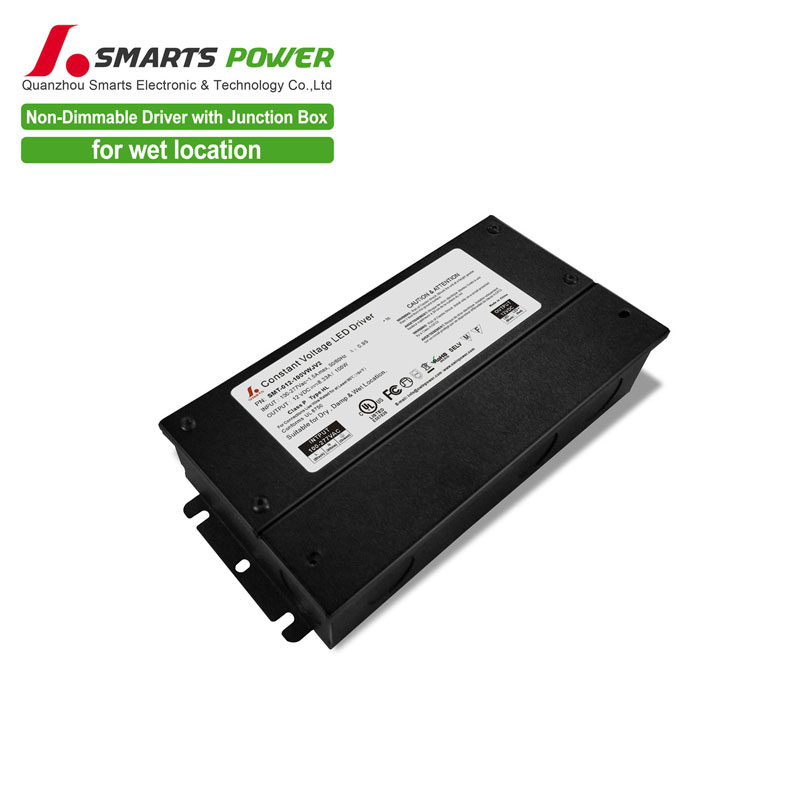

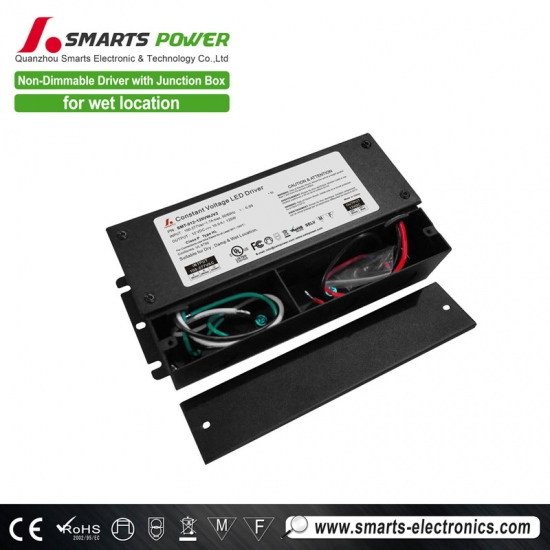

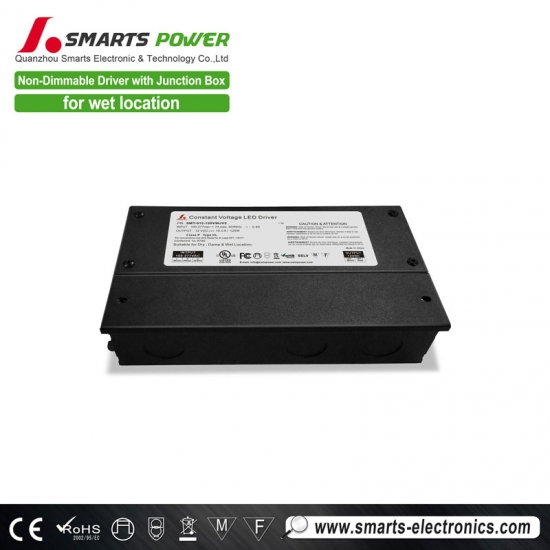

Class p led power supply 120w ul led driver 24v 12v for RGB lights

model

SMT-012-120VWJ (1.0 version)

SMT-012-120VWJV2 (2.0 version)

SMT-024-120VWJ (1.0 version)

SMT-024-120VWJV2 (2.0 version)

Output

DC Voltage

12V

24V

Voltage Accuracy

±0.5V

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±2%

Rated current

10.00A

5.00A

Rated power

120W

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor (Typ.)@ full load

0.99@120V ;0.97@230V ;0.96@277V

0.99@120V ; 0.97@230V ;0.96@277V

THD (Typ)@ full load

<15% @120V    <20%@230V      <20% @277V

Efficiency (Typ.)@ full load

80%@120V  84%@230V  84%@277V

85%@120V  88%@230V  88%@277V

AC Current(Max.)

1.7A (100VAC)

Inrush Current (Typ.)

20A,50% ,1.6ms@120V ;30A,50% 200us@230V ; 25A,50% 1.2ms@277V

Leakage current

<0.50mA

Protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition removed

Over Loading

≤120% constant current limiting, auto-recovery

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40~+60℃ (see below derating curve)

Working Humidity

20~90%RH, non-condensing

Storage TEMP. Humidity

-40~+80℃,10~95%RH

TEMP .coefficient

±0.03%/℃(0~50℃)

Vibration

10～500Hz, 5G 10min./1 cycle, period for  60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

1.3Kg

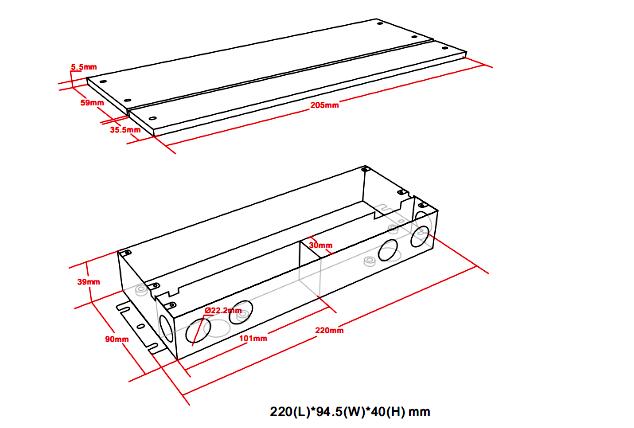

Size

1.0 version: 220*93*41mm (L*W*H) / 2.0 version: 220*94.5*40mm

packing

329*279*176mm , 10PCS/ctn

Notes

1. All parameters NOT specially mentioned are measured at 110VAC input , rated load and

25℃of ambient temperature.

2.  Tolerance:includes set us tolerance,line regulation and load regulation .
