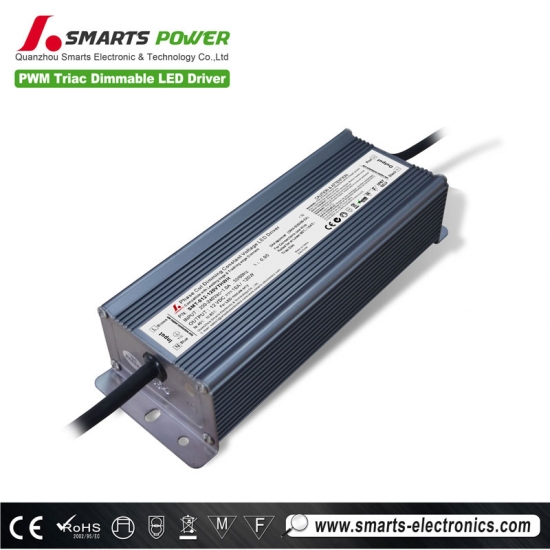

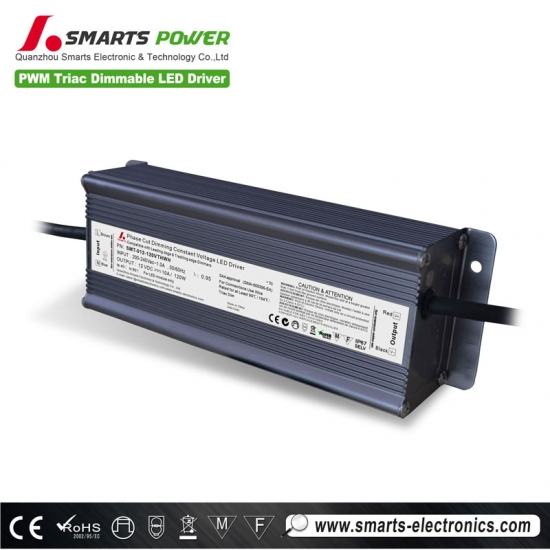

CE SAA 12v dc 120w triac dimmable led light driver
SMT-012-120VTHWH is 120w led driver phase cut dimming 12v. It is compatible with leading and trailing edge dimmers, flicker free. Its dimming range 0-100% smoothly. It is CE SAA approval, with 200-240Vac input voltage range. It can work with fulham's led light.
Product parameters
model |
SMT-012-120VTHWH |
SMT-024-120VTHWH |
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
Voltage Tolerance |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
|
|
Load Regulation |
±2% ±1% |
±1%
|
|
Rated current |
10.00A |
5.0A |
|
Rated power |
120W |
120W |
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47~63HZ |
|
|
Power Factor ( Typ.) |
PF≥0.95 (@full load) |
|
|
Full Load Efficiency(Typ.) |
>88% |
>90% |
|
AC Current(Typ.) |
1.0A |
1.0A |
|
Leakage current |
﹤0.5mA |
|
Protection |
Short Circuit |
Hiccup mode,recovers automatically after fault condition is removed |
|
|
Over temperature |
≤120% |
|
|
Over Loading |
100℃±10℃ shut down o/p voltage, re-power on to recover |
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
|
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
|
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
|
|
EMC EMISSION |
EN55015,EN61000-3-2,3 (≥60%loading) |
|
Others |
Net Weight |
EN61000-4-2,3,4,5,6 ,11,EN61547 |
|
|
Size |
1.1kg |
|
|
packing |
230*70*43mm(L*W*H) |
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. To extend the driver's using life ,please reduce the loading at lower input voltage. 3.Loading range from 10% to 100% |
Mechanical Specification
CompatibleDimmer Type

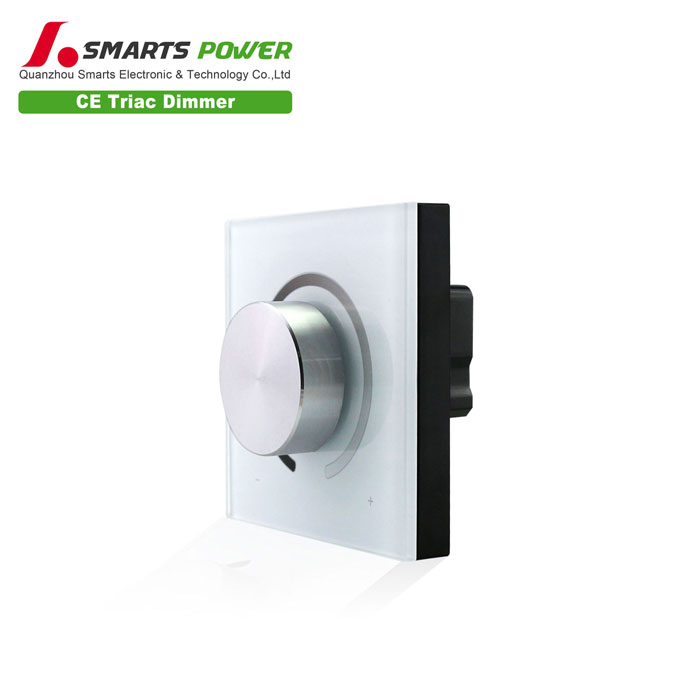

SMT300-T-R2 is leading edge dimmer. Its input voltage range 200-240Vac, frequency 50/60Hz , loading 12w-300w. Working temperature is around -20-40℃. It is dimming well with ledels's downlight.
Related Products

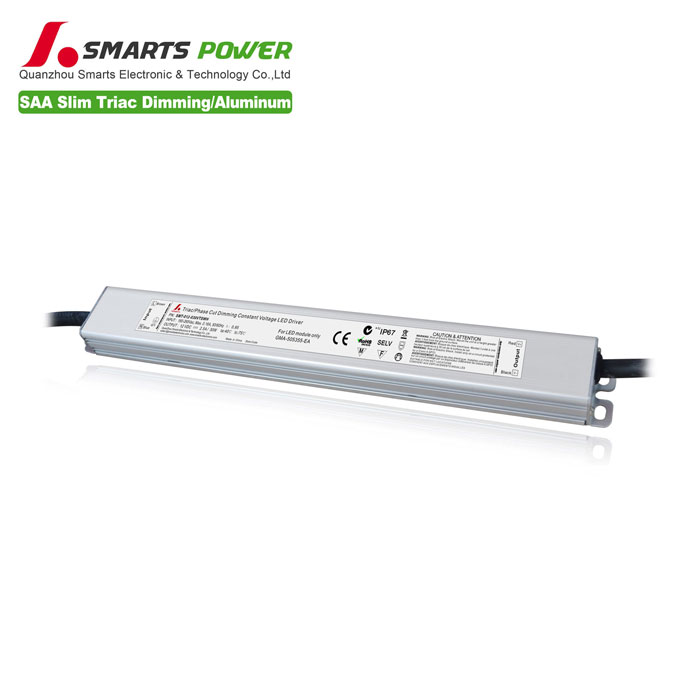

It is 12v 30w triac dimmable led driver. It is IP67 waterproof range, it can be used at outdoor projects. It has 7 years warranty.
