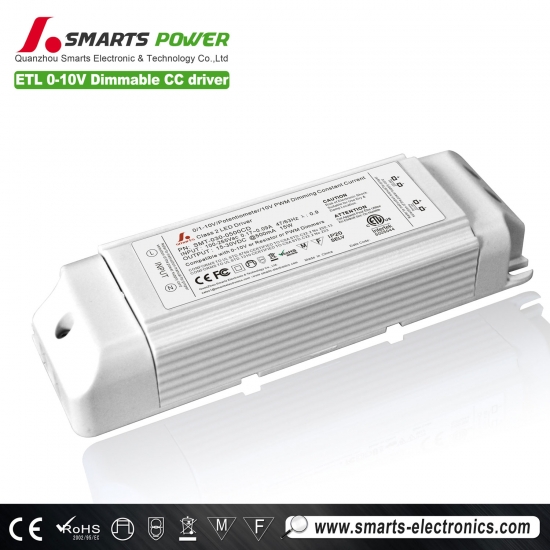

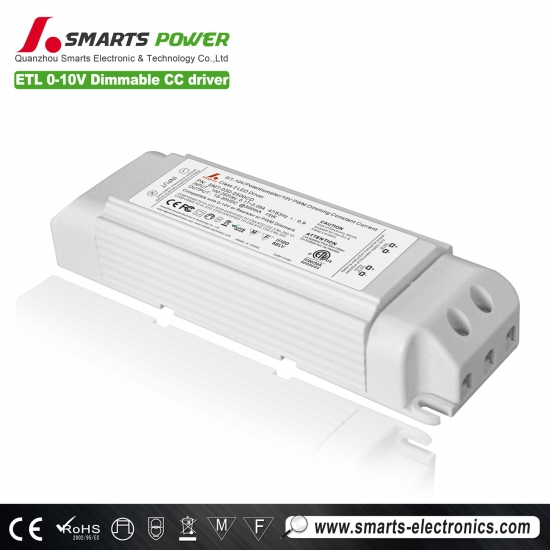

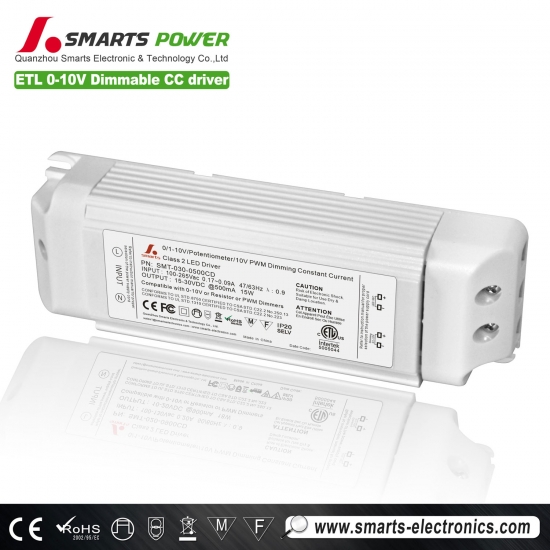

500mA 15W 0-10V/PWM dimmable Constant Current LED driver
Product Description
Specifications
- PF:>0.90
- Efficiency: 88%
- RippleI & Noise (max.) : 150mVp-p
- Voltage Tolerance : ±5%
- Line Regulation : ±1%
- Load Regulation : ±2%
- Case material: Aluminum housing
- Waterproof rate: IP67
- Produt cord:connecting terminal(IP20) / 18AWG*20CM
- 2 years warranty (We promise to replace new ones to you if there is any defective happen during the warranty period)
Features
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant current
- Protections:Short circuit/Overload/Over temperature
- Cooling by free air convection
- 100% full load burn-in test.
- Suitable for LED lighting
- Brand electrotronic components.
- ROHS material.
Environment
- Working temp: -30~+50℃ (Refer to output load derating curve)
- Working humidity: 20~99% RH non-condensing(Waterproof)
- Storage temp. humidity: -40~+80℃,10~99%RH
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
Application
- indoor LED illuminating lights, LED Neon
- LED urban Decoration,LED Lighting Advertising
- LED Display, Safety Protection Apparatus
- Telecommunications, Networks
- Vehicle Lights, Controller Panels
