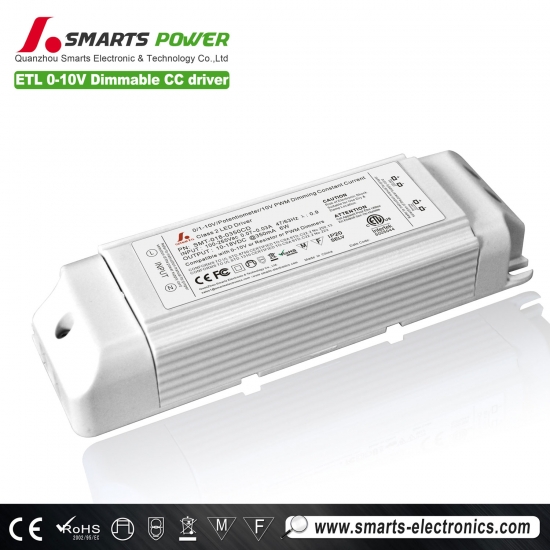

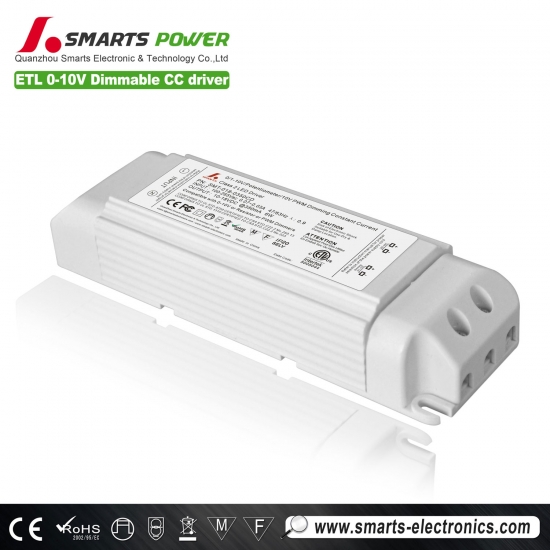

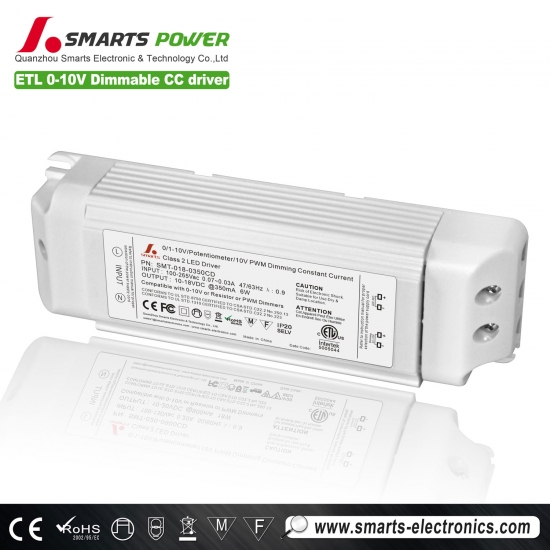

350mA 6W 0-10V/PWM dimmable Constant Current LED driver
Features
Input range :100-265VAC
Built-in PFC function
Efficiency > 84% / PF>0.9
Protections:Short circuit/over Voltage
Fully isolated plastic cover
Easy installation
Cooling by free air convection
Work with leading edge and trailing edge TRIAC dimmers
Strong compatibility, flicker-free dimming
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting
3 years warranty
Protection
Short Circuit: Hiccup mode, recovers automatically after fault condition
Over voltage: <270VAC 0r =270VAC
Environment parameter:
Working temperature: -40~+60℃
Working humidity:20~90%RH,non-condensing
Storage TEM.,Humidity: -40~+80℃,10~95%RH
TEMP.coefficient: ±0.03%/℃(0~50℃)
Vibration: 10~500Hz,2G 10min./1 cycle,period for 60min.each along X,Y,Z axes
Safety &EMC:
Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
Withstand Voltage : I/P-O/P: 3000KVAC
Isolation Resistance : I/P-O/P:100M Ohms/500VDC
EMC EMISSION: Compliance toEN55015,EN61000-3-2 (> or=50%load)
EMC IMMUNITY : Compliance to EN55015,EN61000-4-2,3,4,5,6,8,11,A light industry level (surge4KV)
Applications
indoor LED illuminating lights, LED Neon
LED urban Decoration,LED Lighting Advertising
LED Display, Safety Protection Apparatus
Telecommunications, Networks
Vehicle Lights, Controller Panels
