Non-dimmable LED Driver

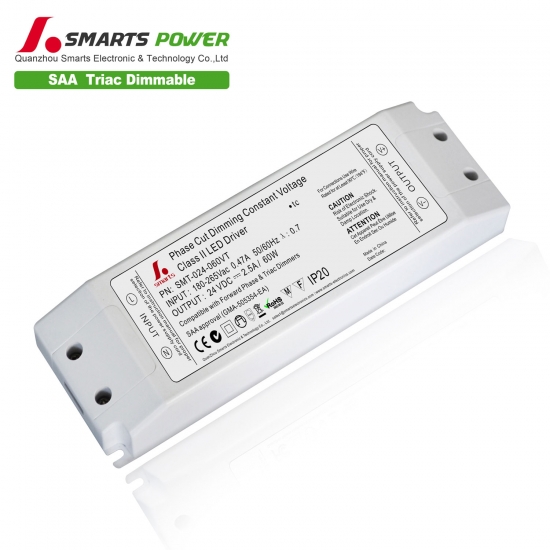

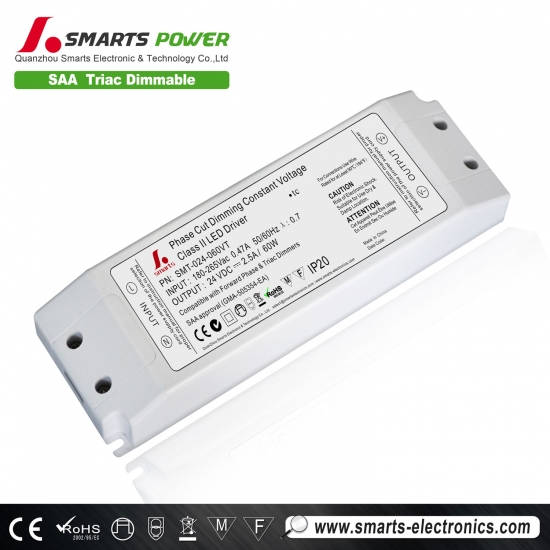

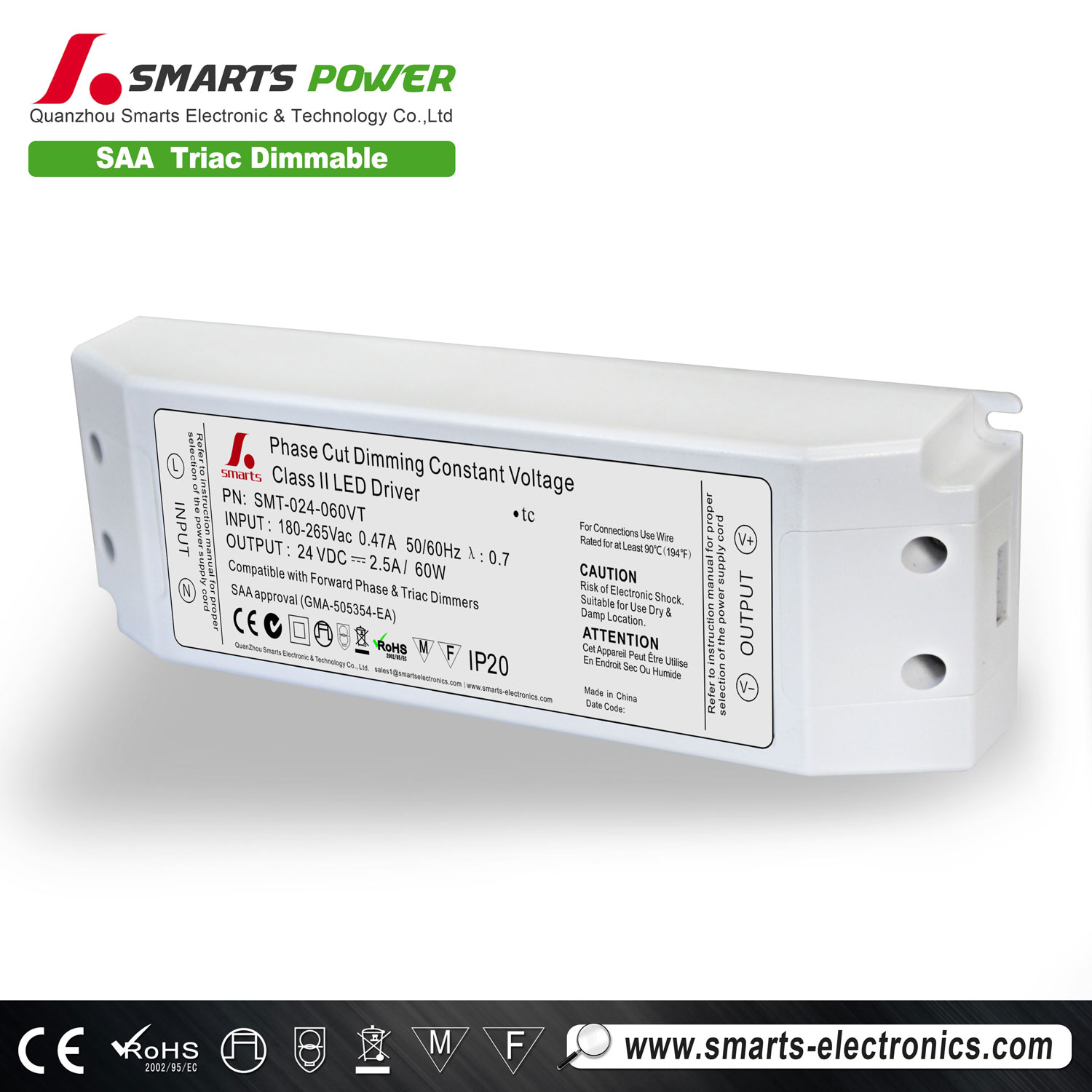

5 years warranty power supply triac dimming led driver 24v 60W with ETL

A series of triac dimmable led driver divide triac dimmable constant voltage led driver & triac dimmable constant current led driver. Through 100% full load burn-in test. It application with indoor & outdoor illuminating lights.



  • item no.:

    SMT-024-060VT
  • product orgin:

    China
  • brand:

    SMARTS
  • Input Voltage:

    100-130V/ 170-265V
  • Output Voltage:

    24v
  • Output Current:

    2.5A
  • Working Mode:

    constant voltage
  • Certification:

    ETL CE ROHS
  • Warranty:

    5 years
inquiry now
product details

5 years warranty power supply triac dimming led driver 24v 60W with ETL



24v 60w triac dimming driver takes about 5 years warranty,and it is have short circuit/overload temperature protection.Through 100% full load burn-in test. It application with indoor & outdoor illuminating lights.


  Product Specification



Model SMT-024-060VT
Output DC Voltage 24V
Rated Current 2.5A
Rated Power 60w
Input Voltage Range 100-130V AC/170-265V AC
Frequency Range 47-63Hz
PF >0.95
Efficiency >85%
Environment Working Temp. -40~+60℃
Storage Temp.,Humidity -40~+80
Temp. coefficient ±0.03%/℃(0~50℃)
Others Size 180*60*34mm
IP code IP20
Packing 309*279*176,20pcs/ctns
Warranty 5 years
Certificate CE/ROHS/ETL/FCC
Delivery 7 working days for sample order,12 working days for 500pcs
Payment terms

T/T,   Western Union,  Paypal, Trade Assurance


24v 60w triac dimmable led transformer



  Problem analysis

1. Question: If all dimmable LED drivers we ordered will provide more than 12 or 24 volts? As our some of LED lighting 's voltage is more than 24VDC a bit .

Answer:  ±0.5% is the acceptable margin of error for both 12v dc and 24vdc led drivers.



2.Question:  Do all of these units have protection from thermal overload (excessive heat), voltage overload, short circuit, and power surge?

Answers: Yes, all of those units have the protection  from thermal overload (excessive heat), voltage overload, short circuit, and power surge.



3.Question: Do you have any customers in the US? I have not heard about your company before.

Answer: 1) Light Blue LLC

               2) Diode LED



  Packing & Shipping

inner box-white box + outer carton- standard exporting carton for packing

  1. MOQ: 1 pcs
  2. Delivery: 7 working days for sample order,12 working days for 500pcs.
  3. Shipping freight are quoted under your requests.
  4. Loading port: Xiamen


triac dimmable led driver

Our goal is to provide you the right product and make you satisfied, so  if you are interested in our product. please don’t hesitate to contact us.
