33-45vDC 200mA 250mA 0-10v Dimmable Constant Current LED Driver For Led Light
SMT-45-0250CDH 250ma dimmable constant current led driver is acompact size,light weight,has high efficiency and low operation temperature, give 3 years warranty, If the led drivers can not work or damaged during warranty time, will replace a new one to you.
Specifications:
|
Model |
SMT-45-0250CDH |
SMT-40-0300CDH |
SMT-35-0350CDH |
SMT-30-0400CDH |
||
|
Output |
DC Current |
350mA |
300mA |
350mA |
400mA |
|
|
|
Current Accuracy |
±3% |
||||
|
|
Voltage Range |
33-45V |
28-40V |
23-35V |
18-30V |
|
|
|
Rated power |
12W |
12W |
12W |
12W |
|
|
Input |
Voltage Range |
180～265VAC |
||||
|
|
Frequency Range |
47～63HZ |
||||
|
|
PF(Typ.） |
PF>0.9 |
||||
|
|
Full Load Efficiency（Typ） |
>86%(110V) >88%(220V) |
>86%(110V) >88%(220V) |
>86%(110V) >88%(220V) |
>86%(110V) >88%(220V) |
|
|
|
AC Current (Typ.） |
0.104A(110V) 0.106A(220V) |
0.102A(110V) 0.103A(220V) |
0.102A(110V) 0.103A(220V) |
0.101A(110V) 0.103A(220V) |
|
|
|
Leakage current |
<0.72mA/110VAC / ﹤0.75mA/220VAC |
||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||
|
|
Over Current |
≦1.4*Iout |
||||
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||
|
Environment |
Working TEMP. |
-40～+50℃ |
||||
|
|
Working Humidity |
20～95%RH,non-condensing |
||||
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||
|
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. IP20 |
||||
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
||||
|
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
||||
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
||||
|
|
SIZE | 85*45*26mm | ||||
Can you dim a constant current LED driver?
The constant current supply tries to compensate for the lack of current when the led is dimming. The PWM turn the led on and off at a high frequency invisible to humans, The lower the frequency, the lower the light output, So, whether if a constant current can be dim? The answer is Yes, if its a non dimmable driver, use a simple dimmer switch to do a simple dimming function, if its a triac dimmable driver or 0-10v dimmable drivers, use triac dimmers or 0-10v dimmers to reach dimming function.

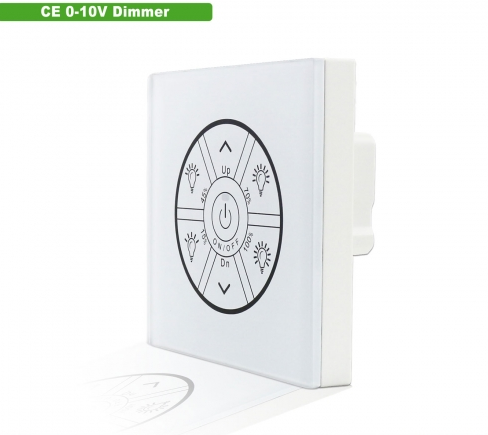

Recommend 0-10v dimmer for 0-10v dimmable constant current led driver:
Model: SMT50-D2
