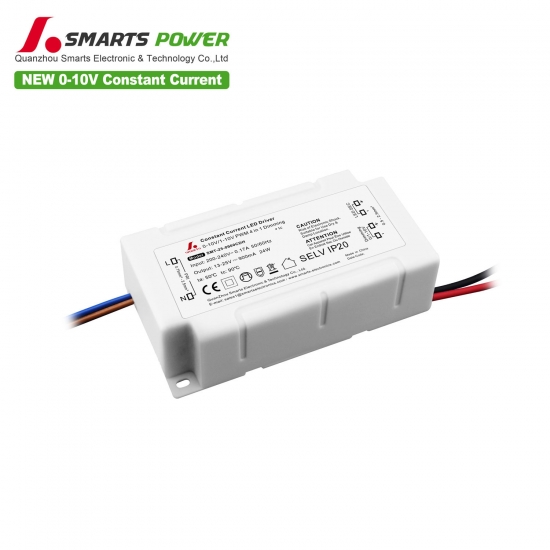

CE ROHS 900mA constant current 0-10V dimmable 18v led driver
SMT-25-0900CDH is 18v led driver 0-10V dimmable constant current 900mA. Which has CE ROHS approved.
Long warranty 3 years.
Specification
|
Model |
SMT-25-0900CDH |
SMT-22-1050CDH |
SMT-35-0700CDH |
SMT-40-0600CDH |
||
|
Output |
DC Current |
900mA |
1050mA |
700mA |
600mA |
|
|
|
Current Accuracy |
±3% |
||||
|
|
Voltage Range |
13-25V |
13-22V |
23-35V |
28-40V |
|
|
|
Rated power |
24W |
24W |
24W |
24W |
|
|
Input |
Voltage Range |
180～265VAC |
||||
|
|
Frequency Range |
47～63HZ |
||||
|
|
PF(Typ.） |
PF>0.9 |
||||
|
|
Full Load Efficiency（Typ） |
>86%(110V) >88%(220V) |
>86%(110V) >88%(220V) |
>86%(110V) >88%(220V) |
>86%(110V) >88%(220V) |
|
|
|
AC Current (Typ.） |
0.104A(110V) 0.106A(220V) |
0.102A(110V) 0.103A(220V) |
0.102A(110V) 0.103A(220V) |
0.101A(110V) 0.103A(220V) |
|
|
|
Leakage current |
<0.72mA/110VAC / ﹤0.75mA/220VAC |
||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
||||
|
|
Over Current |
≦1.4*Iout |
||||
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||
|
Environment |
Working TEMP. |
-40～+50℃ |
||||
|
|
Working Humidity |
20～95%RH,non-condensing |
||||
|
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||||
|
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||||
|
|
Vibration |
10～500Hz，5G 12min./1 cycle，period for 72min.each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13. IP20 |
||||
|
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||
|
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG：100MΩ/500VDC/25℃/70%RH |
||||
|
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≧50%Load) |
||||
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11,EN61547,A light industry level |
||||
|
Others |
Weight |
0.2Kg |
||||
|
|
Size |
85*45*26mm（L*W*H） |
||||
|
|
packing |
280*215*195mm/50pcs /CTN 145*50*36mm for inner box |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |
|||||
FAQ: What is CC and CV in power supply?
"CV" stands for "constant voltage", and "CC" stands for "constant current". Most types of load need constant voltage to operate, so if the "CV" LED is lit, it means the PSU works fine with your load.
