277vac 24volt 36 watt led driver UL led power supply

model

SMT-012-036VWSW

SMT-024-036VWSW

Output

DC Voltage

12VDC

24VDC

Voltage Accuracy

±5%

±5%

Rated current

3.0Amp

1.5Amp

Rated power

36W

36W

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277 VAC

Frequency Range

47～63HZ

Power Factor ( Typ.）

0.99@120VAC 0.97@230VAC 0.95@277VAC

THD(Typ.)@ full load

<15%@120VAC  <20%@230VAC  <20%@277VAC

Full Load Efficiency（Typ.）

82%@120VAC ; 83%@230VAC; 84%@ 277VAC

AC Current（Typ.）

7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC;

12A,50%480us@277VAC

12A,50%480us@277VAC

Leakage current

<0.50mA

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition

is removed.

Over Loading

≤120% shut down o/p voltage, re-power on to recover

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

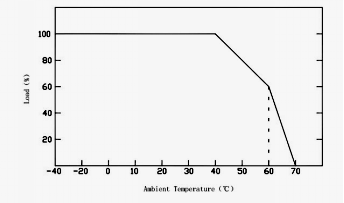

Environment

Working TEMP.

-40～+60℃

Working Humidity

20～90%RH,non-condensing

Storage TEM.,Humidity

-40～+80℃，10～95%RH

TEMP.coefficient

±0.03%/℃（0～50℃）

Vibration

10～500Hz，2G 10min./1 cycle，period for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

EN61347-1  EN61347-2-13

Withstand voltage

I/P-O/P:3.75KVAC

Isolation resistance

I/P-O/P：100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance to EN55015,EN61000-3-2 (≥60%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry

Others

Weight

0.35Kg

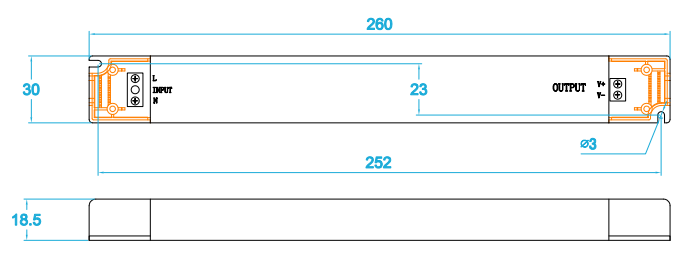

Size

260*32*20mm (L*W*H)

packing

50PCS/CTN

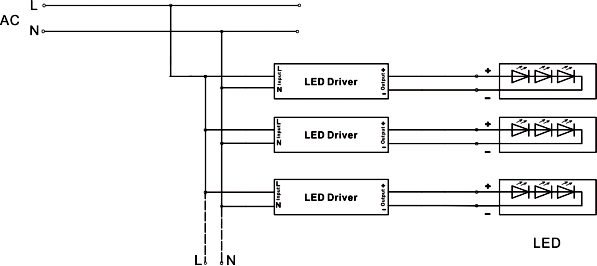

Notes

1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input ,

Rated load and 25℃of ambient temperature.

2. Tolerance:includes set us tolerance,line regulation and load regulation .

3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.

   Label
