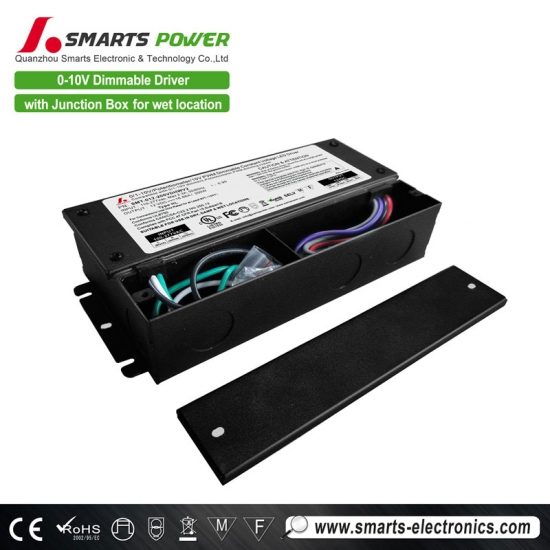

277v 0-10V led driver junction box constant voltage

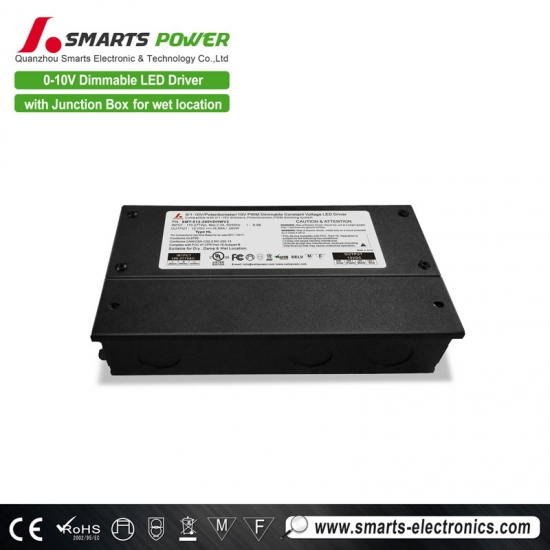

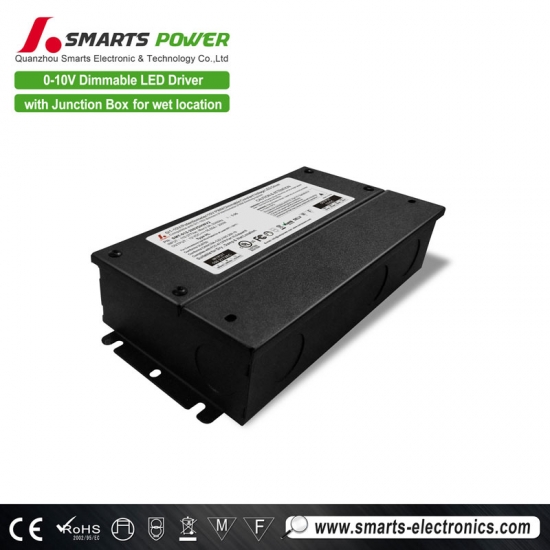

SMT-012-200VDHWV2 UL led driver junction box operate from a 100-277VAC input range. These units will provide up to 200W of output power and a maximum output current of 16.67A which work with kichler bathroom lighting beautiful.
Specification
Model |
SMT-012-200VDH (1.0 version) SMT-012-200VDHV2 (2.0 version) SMT-012-200VDHWV2 (3.0 version) |
SMT-024-200VDH (1.0 version) SMT-024-200VDHV2 (2.0 version) SMT-024-200VDHWV2 (3.0 version) |
||
Output |
DC Voltage |
12V |
24V |
|
Rated Current |
16.67A |
|||
Rated Power |
200W |
|||
Voltage Tolerance |
±0.5V |
|||
Voltage Regulation |
±0.5% |
|||
Load Regulation |
±2% ±1% |
|||
Input |
Voltage Range |
110-277VAC |
||
Frequency Range |
47-63Hz |
|||
Power Factor(Typ.)@ full load |
0.98@120VAC 0.97@277VAC |
0.98@120VAC 0.95@277VAC |
||
THD(Typ.)@ full load |
<20% |
|||
Efficiency(Typ)@ full load |
83% @120Vac / 87%@277Vac 79% |
86% @120Vac / 88%@277Vac
|
||
AC Current(Max.) |
2.3A@100Vac |
|||
Inrush Current (Typ.) |
15A, 50%, 1.4ms @120Vac 30A, 50%, 1.4m,s @277Vac |
|||
Leakage current |
<0.50mA |
|||
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
||
Over Loading |
≤120% constant current limiting, auto-recovery |
|||
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
|||
Environment |
Working TEMP. |
-40~+60℃ (see below derating curve) |
||
Working Humidity |
20~90%RH, non-condensing |
|||
Storage TEMP. Humidity |
-40~+80℃,10~95%RH |
|||
TEMP .coefficient |
±0.03%/℃(0~50℃) |
|||
Vibration |
10~500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|||
Safety&EMC |
Safety standards |
UL8750+UL1310 |
||
Withstand voltage |
I/P-O/P:1.88KVAC |
|||
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
EMC EMISSION |
FCC Part 15 B |
|||
Others |
Weight |
1.8Kg (1.0 version) |
||
Size |
1.0 version: 260*103*46mm /2.0 version: 260*105*45mm (L*W*H) 3.0 version: 260*125*45mm (L*W*H) |
|||
packaging |
Packaging: 10PCS |
|||
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor. 3. Tolerance:includes set us tolerance,line regulation and load regulation . |

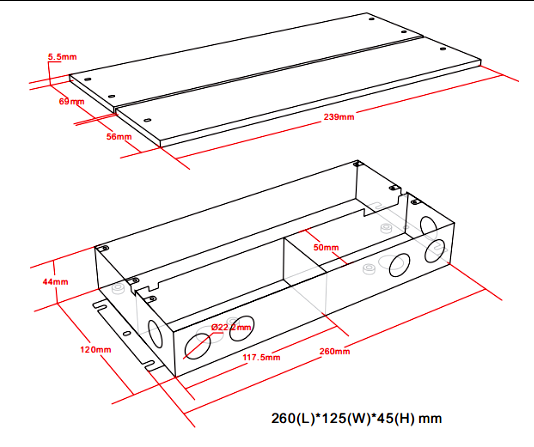

Mechanical Specification
Derating Curve

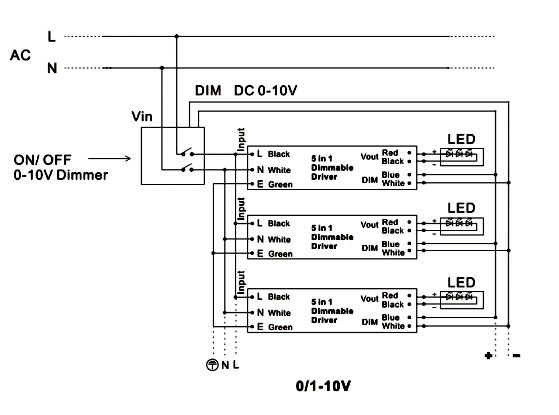

Connecting Diagram
Application
SMT-012-200VDHWV2 is 200w UL led driver junction box led driver, it's designed to be highly efficient and highly reliable. Features include lightning protection, over voltage protection, over current protection, short circuit protection and over temperature protection. Therefore, it's good led driver for Kichler bathroom lighting retro.
Related Products

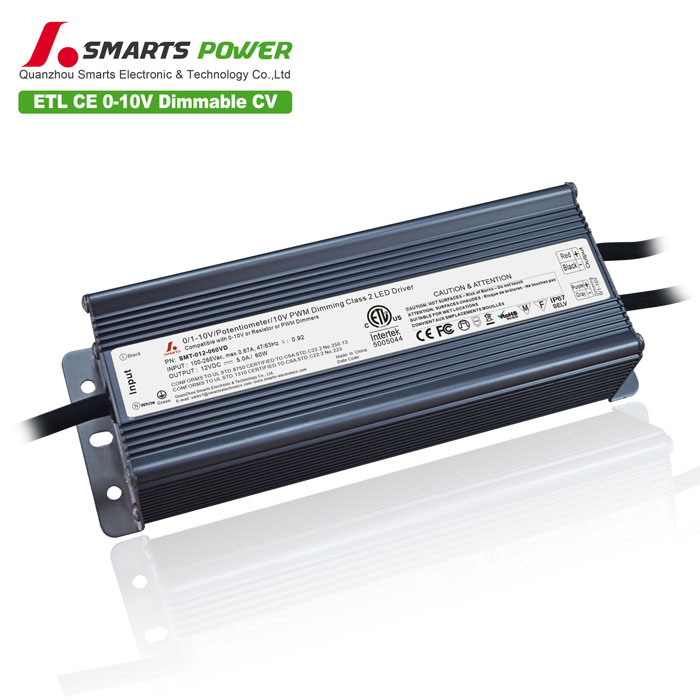

12v 60w class 2 0-10v dimmable led driver which meet ETL/FCC/CE,ROHS listed, for indoor and outdoor use...
Mode:SMT-012-060VD intput voltage:100~265VAC Size : 200*68.5*45mm Working mode: constant voltage dimming mode: 0-10V dimmable |
