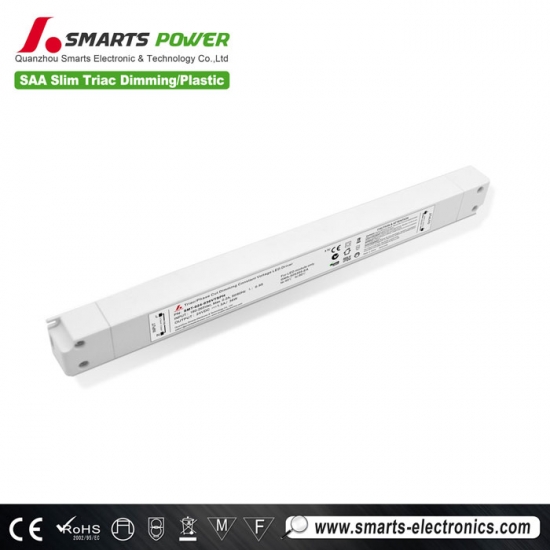

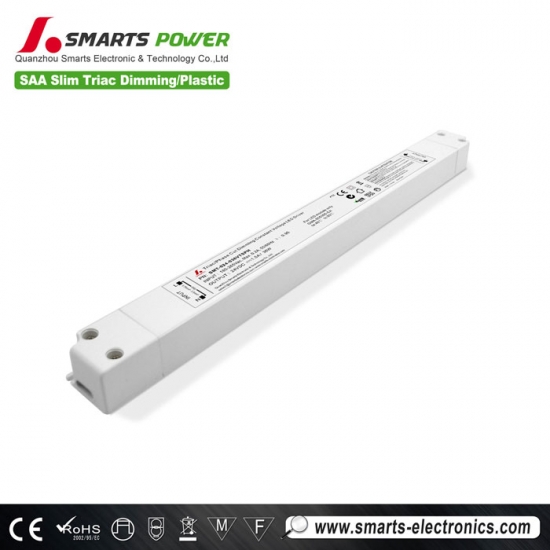

24vdc 36w ac phase cut dimming led driver plastic case with ce input voltage range 100-277VAC,
IP20 design for indoor environment installations PWM output, does not change the color index, compliance to worldwide safety regulations for lighting
Features
·Input voltage range 100-277VAC
·Built-in PFC function / Efficiency > 80% / PF> 0.99
·Dimming range: 0~100% / load: 5~100%
·Protections:short circuit/over voltage/over heat ·
·Full protection aluminum housing, for dry, damp, wet location
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·7 years warranty
Specification
model
SMT-012-036VTSPH
SMT-024-036VTSPH
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
3.0Amp
1.5Amp
Rated power
36W
36W
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
PF≧0.99/110V ; PF≧0.98/277V
Full Load Efficiency（Typ.）
>83%
>84%
AC Current（Typ.）
0.5A/100VAC / 0.23A/277VAC
Inrush Current（Typ.）
7A, 50%, 420us
Leakage current
<0.27mA/110VAC; ﹤0.25mA/277VAC
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.each along X,Y,Z axes
Safety standards
UL8750+UL1310
Withstand voltage
I/P-O/P:2KVAC
Isolation resistance
I/P-O/P：100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,,11, ,
Alight industry level
Label

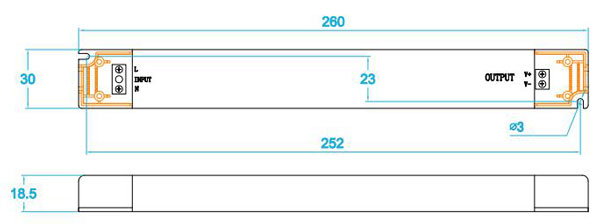

Mechanical Specification
Ø Input with Live Wire(L) Neutral Wire (N)
Ø Output terminals "Red" to LED Positive side (+) and "Black" to LED Negative side (-).

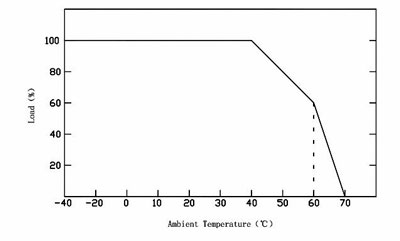

Derating Curve
Load carried in accordance with the load derating curve, according to the ambient temperature derating, in order to extend the service life.

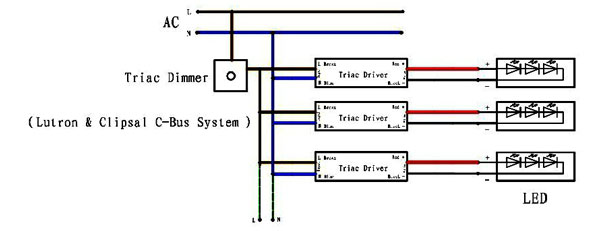

Connecting Diagram

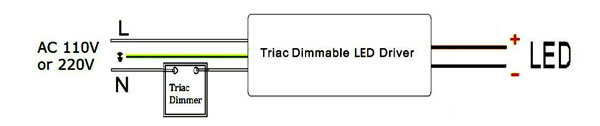

Simple Connection Diagram
