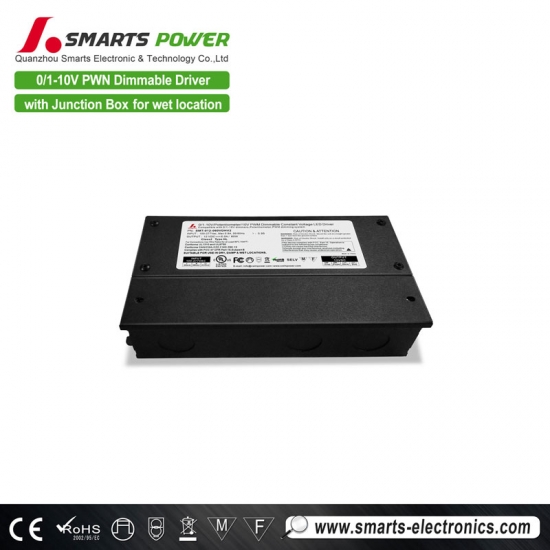

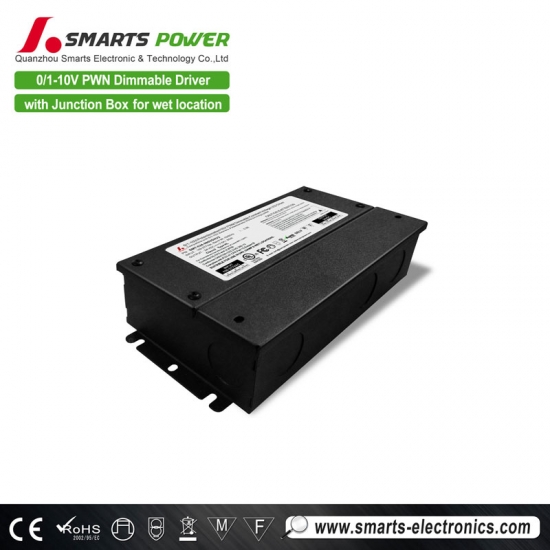

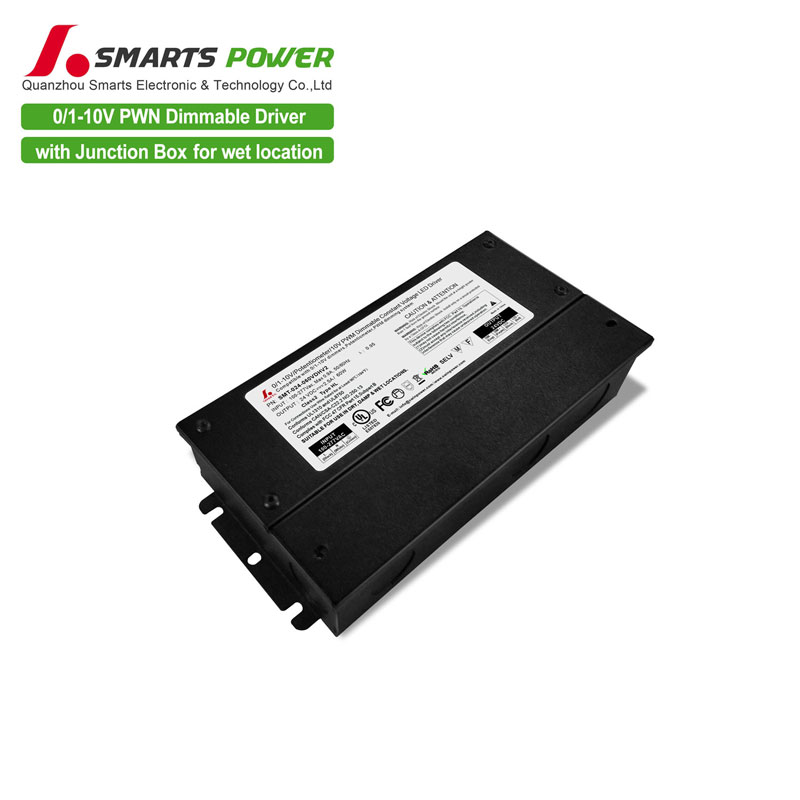

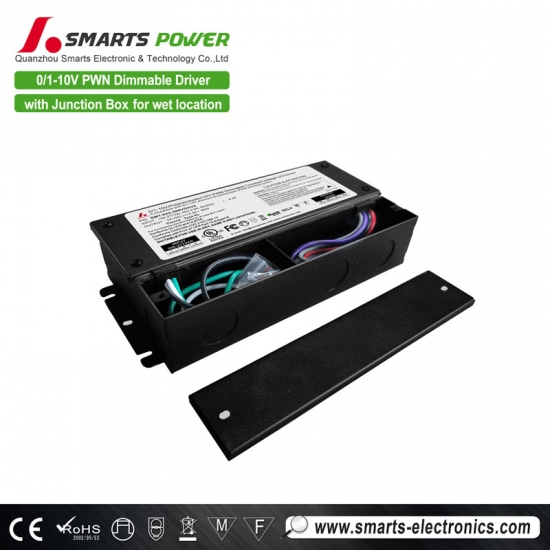

24V 60W triac and pwm for led lighting class 2 power supply

model

SMT-012-060VTDHV2

SMT-024-060VTDHV2

Output

DC Voltage

12V

24V

Rated Current

5A

2.5A

Rated Power

60W

60W

Voltage Tolerance

±0.5V

Voltage Regulation

±0.5%

Load Regulation

±1%

±1%

Input

Voltage Range

100-277VAC

Frequency Range

47-63Hz

Power Factor（Typ.）@ full load

0.98@120VAC  0.95@277VAC

0.98@120VAC  0.95@277VAC

THD（Typ.）@ full load

<20%

Efficiency（Typ.）@ full load

83% @120Vac      85%@277Vac

79%

83% @120Vac      84%@277Vac

AC Current（Max.）

0.5A@100Vac

Inrush Current （Typ.）

14A, 50%, 780us @120Vac     15A, 50%, 660us @277Vac

Leakage current

<0.50mA

protection

Short Circuit

shut down o/p voltage, re-power on to recover after fault condition is removed

Over Loading

≤120% Hiccup mode,recovers automatically after fault condition is removed

Over temperature

100℃±10℃ shut down o/p voltage, automatically recover after cooling.

Environment

Working TEMP.

-40～+60℃ (see below derating curve)

Working Humidity

20～90%RH, non-condensing

Storage TEMP. Humidity

-40～+80℃，10～95%RH

TEMP .coefficient

±0.03%/℃（0～50℃）

Vibration

10～500Hz, 5G 10min./1 cycle,period for 60min. each along X,Y,Z axes

Safety&EMC

Safety standards

UL8750+UL1310

Withstand voltage

I/P-O/P:1.88KVAC

Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

FCC Part 15 B

Others

Weight

About 1.1Kg

Size

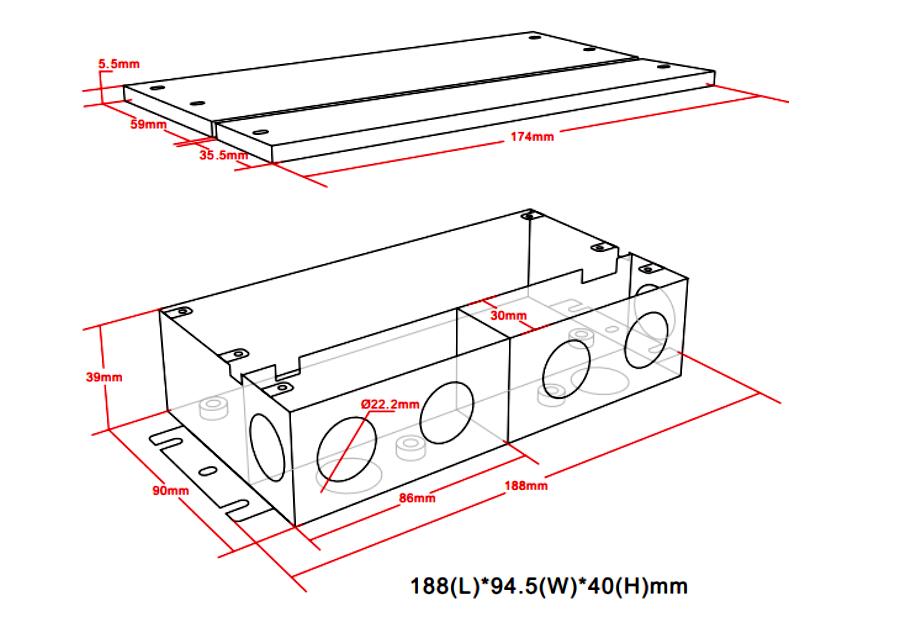

188*94.5*40mm（L*W*H）

packing

10PCS/CTN

 （L*W*H）

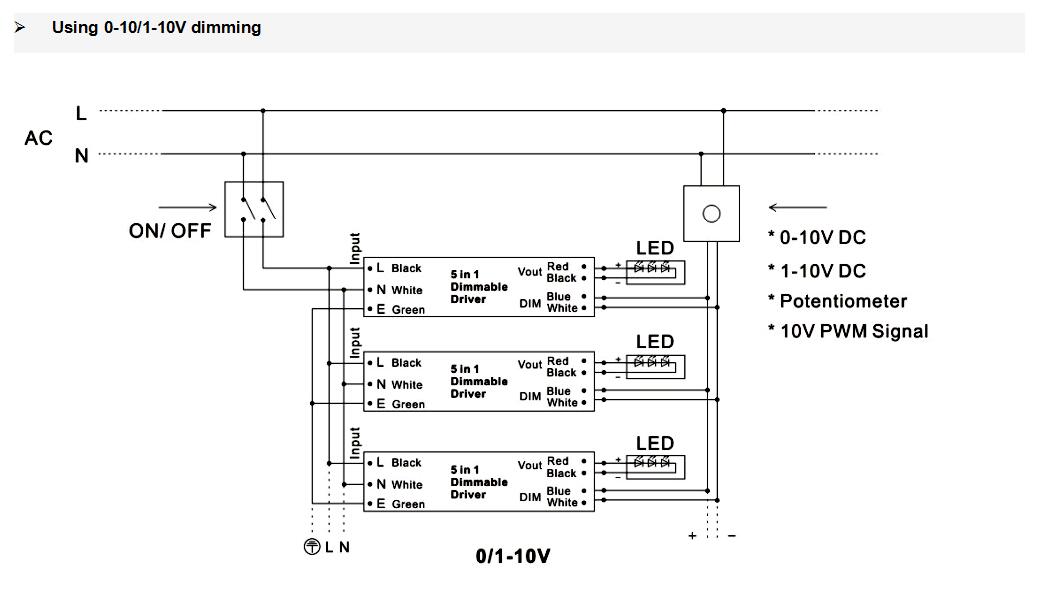

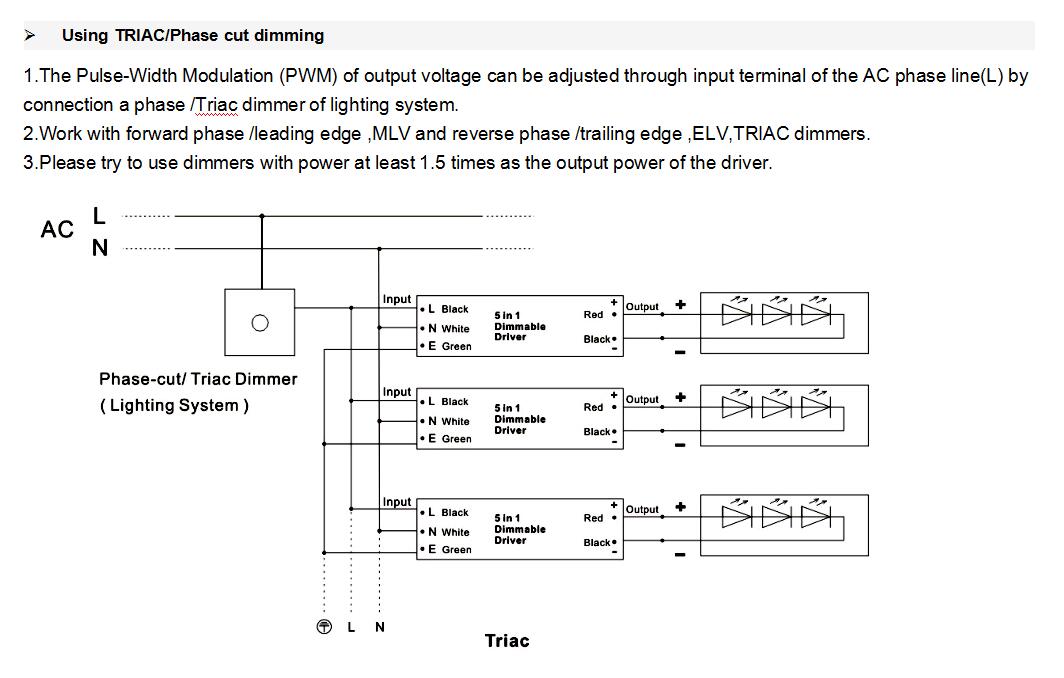

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .
