220V ac dc 12v 90w triac dimming led driver SAA for australia

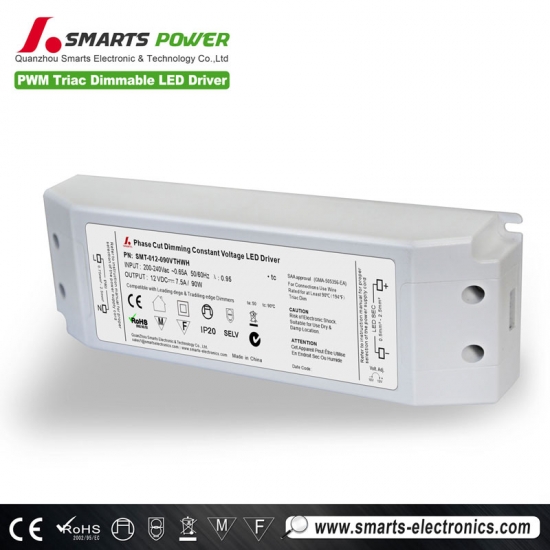

SMT-012-090VTHWH is triac dimming led driver 90w. It is compatible with MLV and ELV dimmers. Its dimming range 0-100%, it has PWM output frequency. It can work with jaylumi's led strip.
Product parameters
|
model |
SMT-012-090VTHWH |
SMT-024-090VTHWH |
|
|
Output |
DC Voltage |
12V |
24V |
|
|
Voltage Tolerance |
±0.5V |
|
|
|
Rated current |
7.5A |
3.75A |
|
|
Rated power |
90W |
|
|
Input |
Voltage Range |
200-240VAC |
|
|
|
Frequency Range |
47~63HZ |
|
|
|
Power Factor |
PF≧0.98/200VAC PF≧0.98/230VAC PF≧0.98/240VAC(Full loading) |
|
|
|
Full Load Efficiency(Typ.) |
86% |
|
|
|
AC Current (Max.) |
0.65A |
|
|
|
Leakage current |
<0.50mA |
|
|
Protection |
Short Circuit |
shut down o/p voltage, re-power on to recover after fault condition is removed |
|
|
|
Over Loading |
≦120% Hiccup mode,recovers automatically after fault condition is removed |
|
|
|
Over Current |
≦ 1.2 *Iout |
|
|
|
Over Temperature |
100℃± 10℃ shut down o/p voltage ,re-power on to recover |
|
|
Environment |
Working TEMP. |
-40-+70℃ |
|
|
|
Working Humidity |
20-90%RH, non-condensing |
|
|
|
Storage TEM.,Humidity |
-40~+80℃,10-95%RH |
|
|
|
TEMP.coefficient |
±0.03%/℃(0-50℃) |
|
|
|
Vibration |
10-500Hz,2G 10min./1 cycle,period for 72min,each along X,Y,Z axes. |
|
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
|
EMC EMISSION |
EN55015,EN61000-3-2,3 (≧60%loading) |
|
|
Others |
Net.Weight |
0.45KG |
|
|
|
Size |
180*60*35mm (L*W*H) |
|
|
|
packing |
355*2150*215mm , outside carton 20PCS/CTN |
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 230VAC input , rated load and 25℃ of ambient temperature. 2. Tolerance: includes set us tolerance, line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again 4. Loading range from 10% to 100% |
||
 |
 |
 |
 |

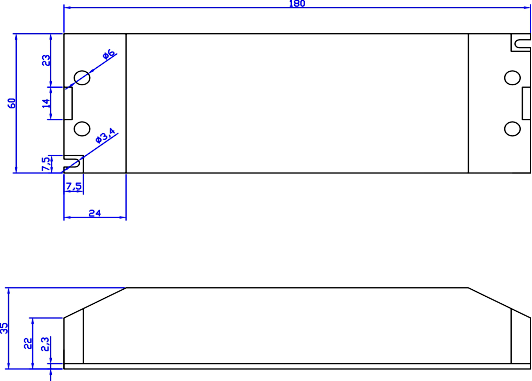

Mechanical Specification

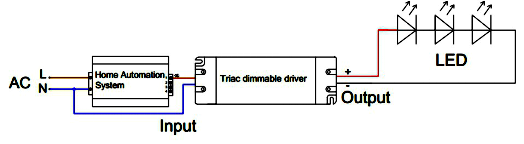

Connecting solution:
Compatible Lighting Type
Our 90w 12v phase cut dimming led driver can match well with maxlite’s LED lighting.
Related Products

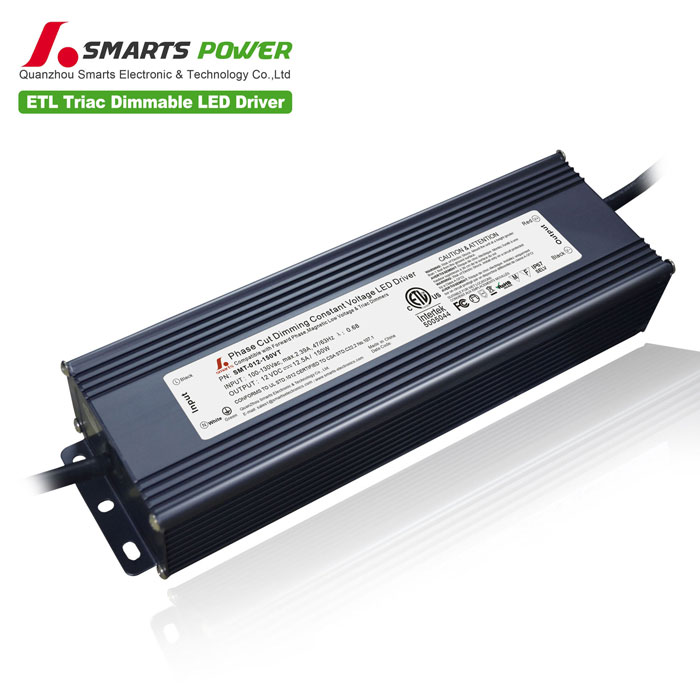

It is 12v 150w triac dimmable led driver. It is can be paired with junction box with ETL listed. It has 5 years warranty.
Mode：SMT-012-150VT |
