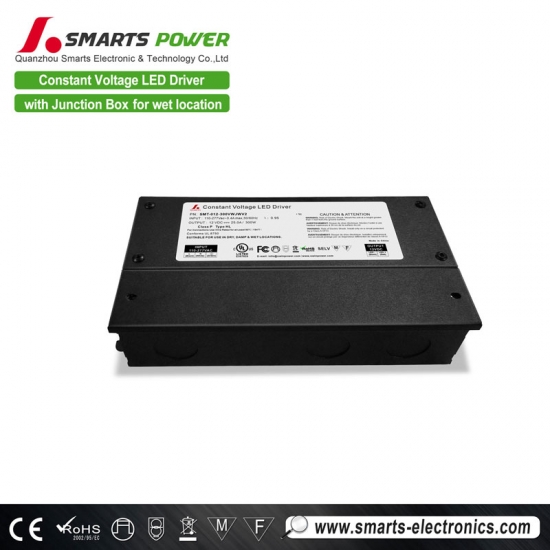

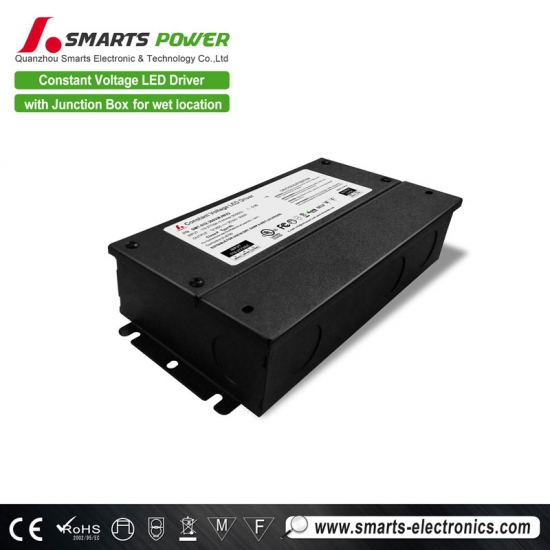

12v 300w led module low voltage lighting power supply and driver

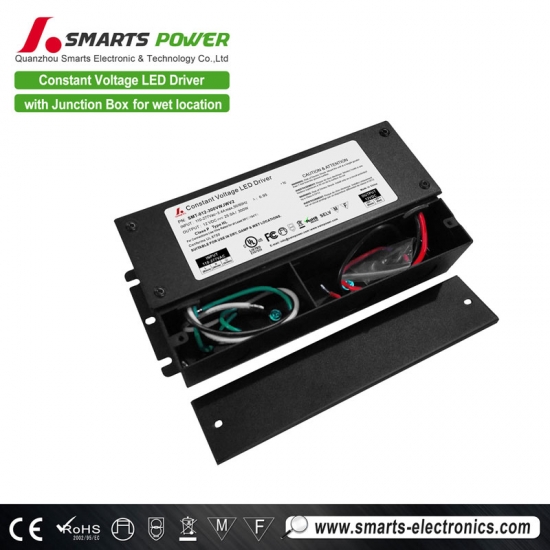

For direct wire installations. this low voltage lighting power supply can simply be remove end caps to access on-board terminal block connectors, with 120-volt AC line voltage, can power the Lumiron 12v LED rope light output over the full range from 100% to 0%.
Product parameters
Model
SMT-012-300VWJ (1.0 version)
SMT-012-300VWJV2 (2.0 version)
SMT-012-300VWJWV2 (3.0 version)
SMT-024-300VWJ (1.0 version)
SMT-024-300VWJV2 (2.0 version)
SMT-024-300VWJWV2 (3.0 version)
Output
DC Voltage
12V
24V
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Voltage Tolerance
±0.5V
Load Regulation
±2%
±1%
±1%
Rated current
25.0A
12.5A
Rated power
300W
Input
Voltage Range
110-277VAC
Frequency Range
47-63Hz
Power Factor(Typ.)@full load
0.99@120V ;0.98@230V ;0.98@277V
0.99@120V ; 0.98@230V ;0.98@277V
THD(Typ.)@ full load
<10% @120V <20%@230V <20% @277V
Efficiency (Typ.)@ full load
85%@120V, 89%@230V ,89%@277V
88%@120V,92%@230V,92%@277V
AC Current (Max.)
3.4A (100VAC)
Inrush Current (Typ.)
20A,50% ,1.9ms@120V ;60A,50% 130us@230V ; 35A,50% 1.9ms@277V
Leakage current
<0.50mA
Protection
Short Circuit
shut down o/p voltage, re-power on to recover after fault condition removed
Over Loading
≤120% Hiccup mode,recovers automatically after fault condition is removed
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz 2G 10min./1 cycle，period for 60min.each along X,
Y,Z axes
Safety&EMC
Safety standards
UL8750
Withstand voltage
I/P-O/P:1.88KVAC
Isolation resistance
I/P-O/P:100MΩ/500VDC/25℃/70%RH
EMC EMISSION
FCC Part 15 B
Others
Weight
1.8Kg

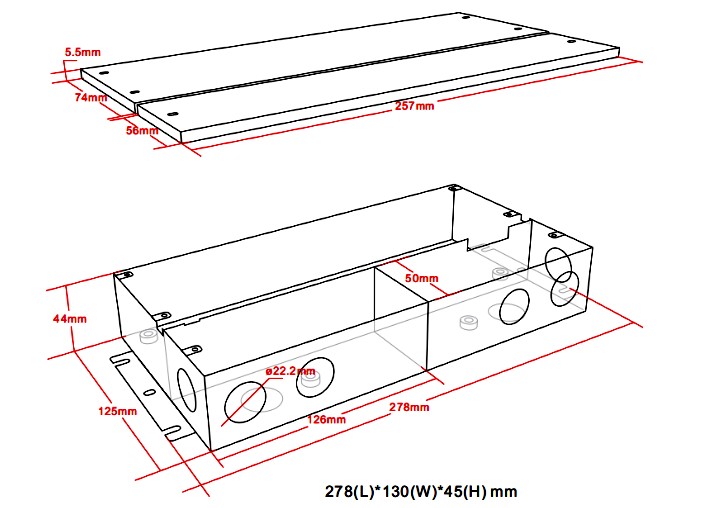

Size
1.0 version:278*108*46mm / 2.0 version:278*110*44mm/
3.0 version:278*130*44mm
packaging
10PCS/CTN
385*335*200mm 20PCS/CTN
Notes
1. All parameters if NOT specially mentioned are measured at 120VAC input , rated load and 25℃of ambient temperature.
2. To extend the driver's using life ,please reduce the loading at lower input voltage.
 |
 |
 |
 |
Mechanical Specification
Compatible strip lighting Type

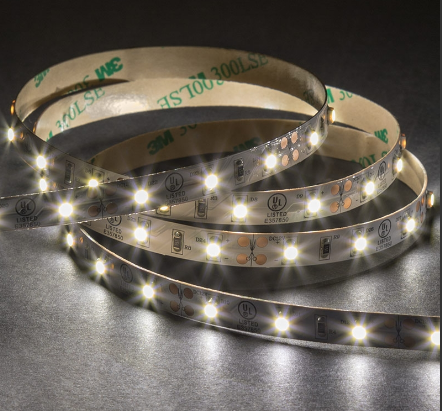

Superbrightleds strip light operates on 12VDC and emits up to 150 lumens of warm white, natural white, cool white, blue, green, red, yellow, pink, amber or purple light per foot. This LED strip light is covered by a lifetime warranty. It's great for under-cabinet lighting, coves, bookshelves, or other indoor applications with low voltage lighting power supply.
Related Products
|
Mode：SMT-012-100VWJV2 |
