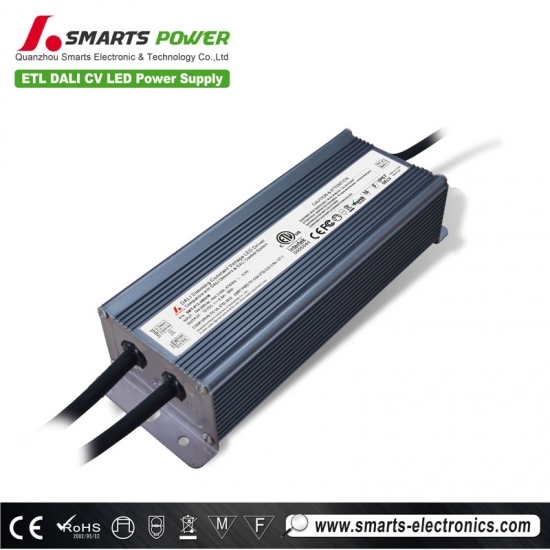

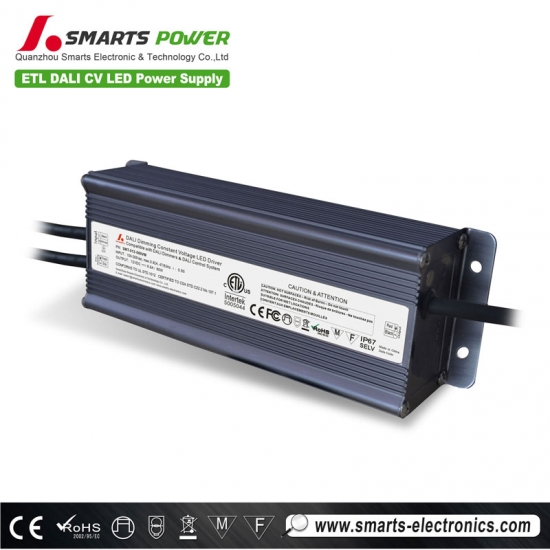

12 volt Constant Voltage DALI LED Driver with Dimming Control Wholesaler
|
80w dali led dimming driver from Smarts Electronics comes with a variety of functions including a built-in push-dim, addressable output channels and even a built-in active PFC function. This Dimmable LED Drivers have security measures in place, such as short circuit and over temperature protections.
|
|
Description for dali dimming driver
|
Specifications for dali led dimming driver
|
|
Model |
SMT-012-080VM |
SMT-024-080VM |
SMT-036-080VM |
WMT-048-080VM |
|
|
Output |
DC Voltage |
12V |
24V |
36V |
48V |
|
Voltage Tolerance |
±3% |
||||
|
Rated current |
0~6.6A |
0~3.3A |
0~2.2A |
0~1.66A |
|
|
Rated power |
80W |
80W |
80W |
80W |
|
|
Input |
Voltage Range |
100-265VAC |
|||
|
Frequency Range |
47~63HZ |
||||
|
Power Factor(Typ.) |
PF>0.93/110V / PF>0.95/220V |
||||
|
Full Load Efficiency(Typ.) |
>83% |
>85% |
>86% |
>87% |
|
|
AC Current(Typ.) |
0.44A/100VAC, 0.46A/220VAC |
0.44A/100VAC, 0.46A/220VAC |
0.43A/100VAC, 0.45A/220VAC |
0.43A/100VAC, 0.45A/220VAC |
|
|
Leakage current |
<0.5mA/110V , <0.7mA/220VAC |
||||
|
Protection |
Short Circuit |
Protection type: Hiccup mode, recovers automatically after fault condition is removed |
|||
|
Over Load |
<120% |
||||
|
Over Circuit |
<1.4*I out |
||||
|
Over temperature |
100℃±10℃ shut down o/p voltage, re-power on to recover |
||||
|
Environment |
Working TEMP. |
-40~+60℃ |
|||
|
Working Humidity |
20~95%RH,non-condensing |
||||
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
||||
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
||||
|
Vibration |
10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes |
||||
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 IP67 |
|||
|
Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.88KVAC O/P-FG:0.5KVAC |
||||
|
Isolation resistance |
I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH |
||||
|
EMC EMISSION |
Compliance toEN55015,EN61000-3-2 (>50%load) |
||||
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry level (surge4KV) |
||||
|
Others |
Weight |
1.1Kg |
|||
|
Size |
200*68*46mm(L*W*H) |
||||
|
packing |
329*279*176mm/10pcs/CTN |
||||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load and 25℃of ambient temperature. 2.Tolerance:includes set us tolerance, line regulation and load regulation . 3.The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation, the final equipment manufactures must be-qualify EMC Directive on the complete installation again |
||||
|
Label |
 |
||||
 |
 |
 |
 |
 |
|
Mechanical Specification for led driver 12 volt :
-- Input Rubber cable H03VV-F 3G 1.0mm²,the green/yellow cable connect with (FG) ,Brown with AC (L),Blue with AC(N)
-- Signal Rubber cable H03VV-F 2 0.75mm²,Blue is(DA1),White is(DA2)DALI Non polar!Connected to the BUS of the DALI Master.
-- Output rubber cable H03VV-F 2 1.0mm²,Red is output(V+)Positive,Black is output(V-)negative. Connected to LED Lamps.
Please make sure you connect these correctly otherwise your product will not function correctly or may be damaged.
Operation Reference No.1 for constant voltage led driver:

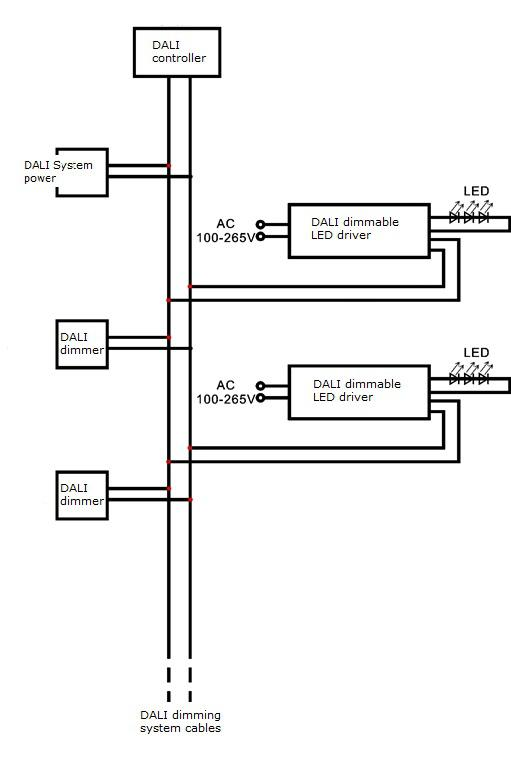

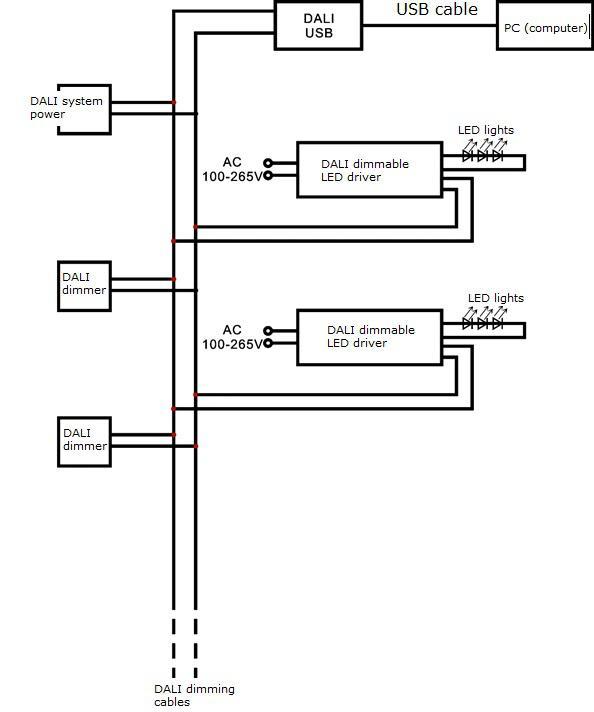

Operation Reference No.2 for led driver with dimming control:
