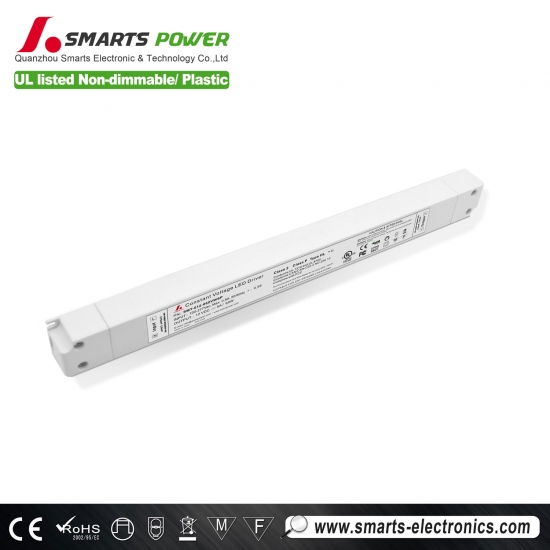

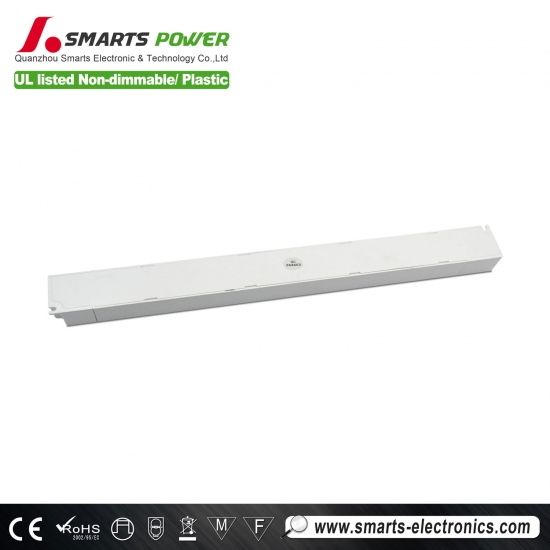

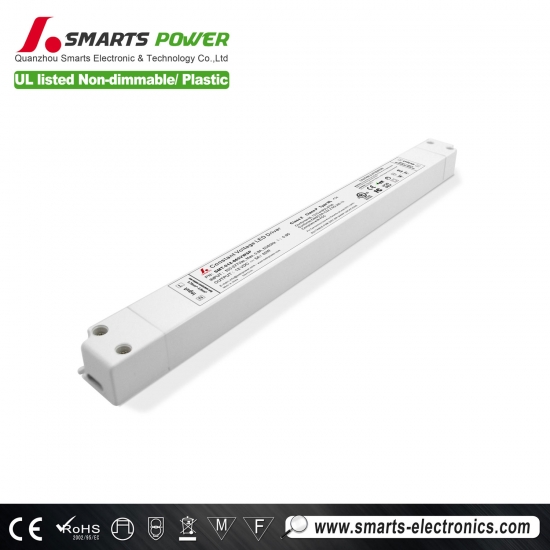

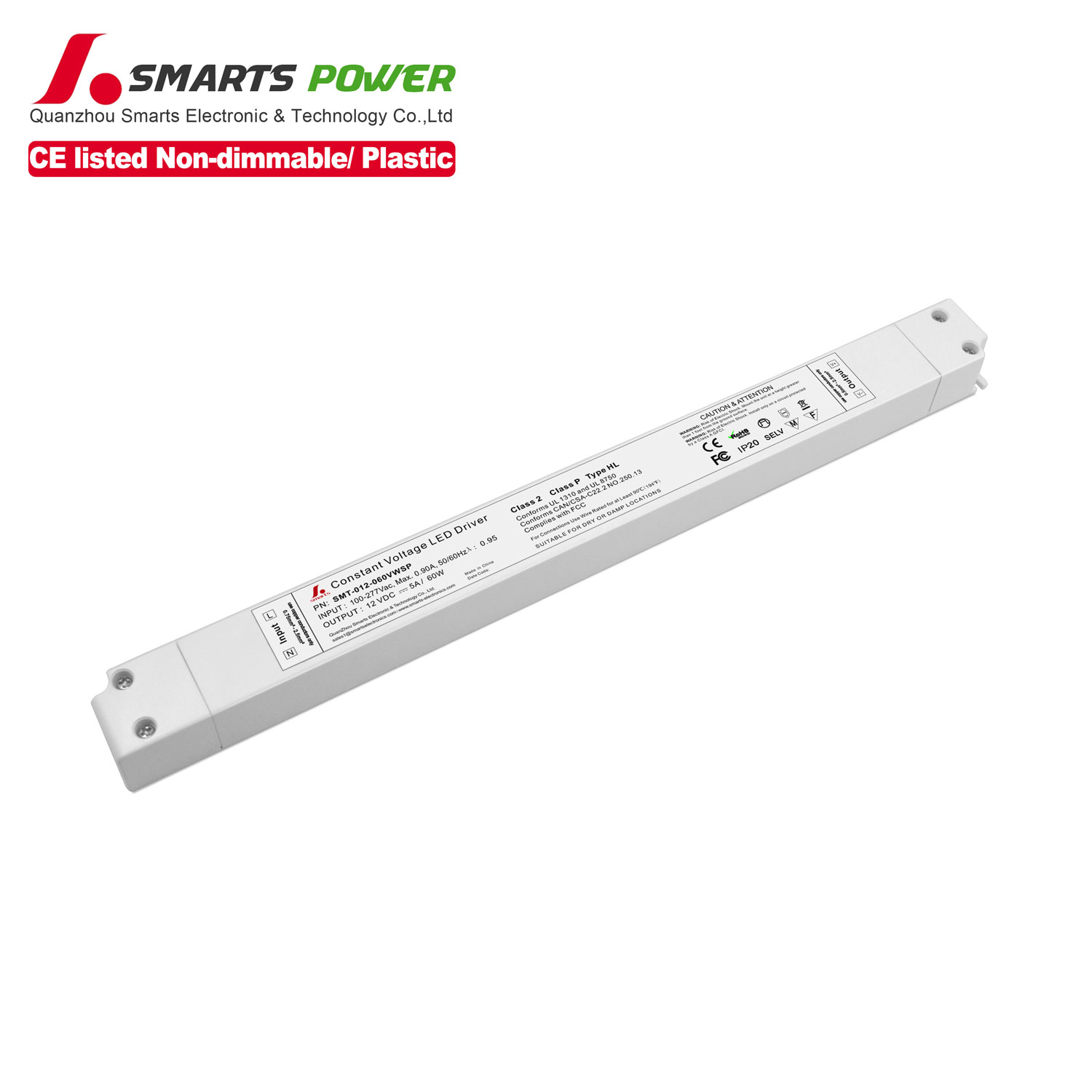

110-277vac 12v 60w class2 slim type led driver led power supply
SMARTS SMT-012-060VWSP is 110-277v input voltage and 12v 24v 36v 48v output voltage for selection, ultra thin designed for different kinds of narrow LED applications. This model of transformer constant voltage LED driver has built in short circuit, over load, and over voltage protection and adheres to UL safety standards.
Features
- Output constant voltage
-
Input voltage range 100-277VAC
-
Class 2, Class P, CE, ROHS approval
-
Built-in PFC function / Efficiency > 83% / PF> 0.99
- Protections:short circuit/over voltage/over heat
- IP20 design for indoor dry environment installations
- Cooling by free air convection
- Full protection aluminum housing, for dry, damp, wet location
- Suitable for LED lighting and moving sign applications
- Compliance to worldwide safety regulations for lighting
-
7 years warranty
Drivers Specification
Max load | 60 Watt |
Input voltage | 100-277vac |
Output voltage | 12vdc |
Output Current at Max | 5 Amp |
Power factor |
0.99 |
Efficiency |
>86% |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
Working TEMP. |
-40~+60℃ |
Working Humidity |
20~90%RH,non-condensing |
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
TEMP.coefficient |
±0.03%/℃(0~50℃) |
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
Label |
|

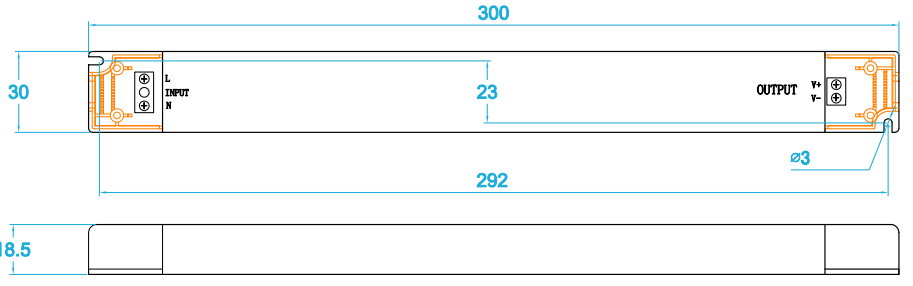

Mechanical Specification
