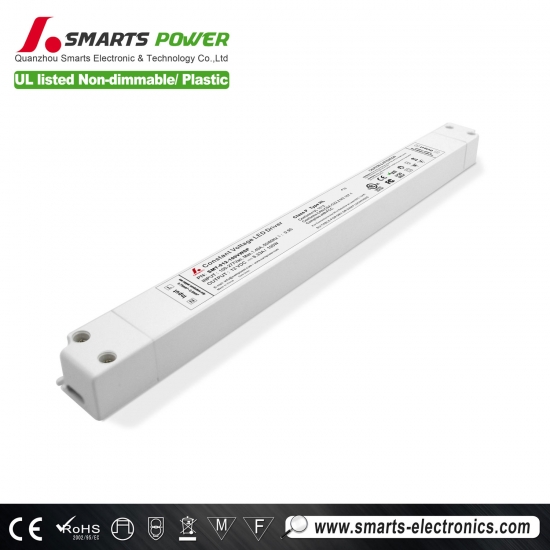

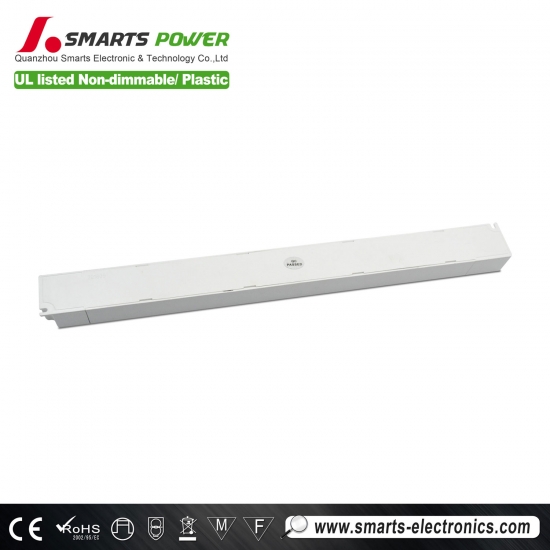

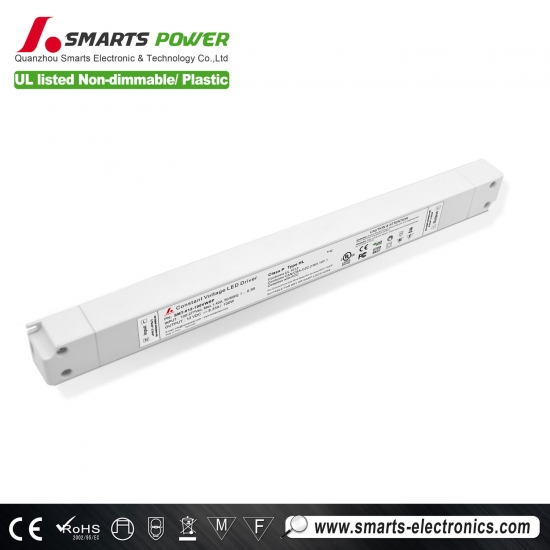

SMT-012-100VWSP is a constant voltage power supply with plastic case. Its output voltage is 12v, which is a single output from AC to DC. Its warranty is 7 years.
Feature
·Output constant voltage
·Input voltage range 100-277VAC
·UL/cUL listed, Class 2, Class P, CE, ROHS approval
·Built-in PFC function / Efficiency > 84% / PF> 0.99
·Protections:short circuit/over voltage/over heat
·IP67 design for indoor dry environment installations
·Cooling by free air convection
·IP20 type for dry location
·Suitable for LED lighting and moving sign applications
·Compliance to worldwide safety regulations for lighting
·7 years warranty
Specification
model
SMT-012-100VWSP
SMT-024-096VWSP
Output
DC Voltage
12VDC
24VDC
Voltage Accuracy
±5%
±5%
Rated current
8.33Amp
4Amp
Rated power
100W
96W (class 2)
Voltage Tolerance
±0.5V
Voltage Regulation
±0.5%
Load Regulation
±1%
±1%
Input
Voltage Range
100-277 VAC
Frequency Range
47～63HZ
Power Factor ( Typ.）
0.99@120VAC; 0.98@230VAC; 0.95@277VAC
THD(Typ.)@ full load
<15%@120VAC <20%@230VAC <20%@277VAC
Full Load Efficiency（Typ.）
83%@120VAC; 85%@230VAC; 85%@ 277VAC
AC Current（Typ.）
1.4A/100VAC / 0.82A/230VAC / 0.43A/277VAC
Inrush Current（Typ.）
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
Leakage current
<0.50mA
Protection
Short Circuit
Hiccup mode, recovers automatically after fault condition
is removed.
Over Loading
≤120% shut down o/p voltage, re-power on to recover
Over temperature
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
Environment
Working TEMP.
-40～+60℃
Working Humidity
20～90%RH,non-condensing
Storage TEM.,Humidity
-40～+80℃，10～95%RH
TEMP.coefficient
±0.03%/℃（0～50℃）
Vibration
10～500Hz，2G 10min./1 cycle，period for 60min.
each along X,Y,Z axes
Safety&EMC
Safety standards
EN61347-1 EN61347-2-13
Withstand voltage
I/P-O/P: 3.75KVAC
Isolation resistance
I/P-O/P：100M Ohms/500VDC/25℃/70%RH
EMC EMISSION
Compliance to EN55015,EN61000-3-2 (≥60%load)
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry
Others
Weight
0.40Kg
Size
330*30*22mm (L*W*H)
packing
50PCS/CTN
Notes
1. All parameters NOT specially mentioned are measured at 110VAC, 220VAC, 277VAC input ,
Rated load and 25℃of ambient temperature.
2. Tolerance:includes set us tolerance,line regulation and load regulation .
3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again.
Label

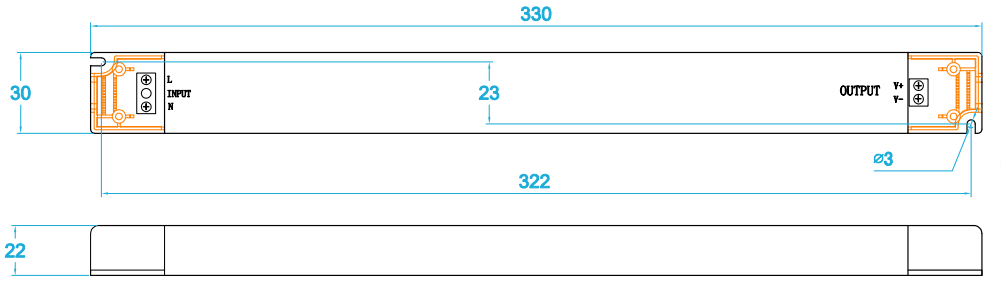

Mechanical Specification
Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
Output: Red is（Possitive +）,Black is（Negative -）
