CE approval 220V 230V ac dc 12V 24V 48V slim power supply

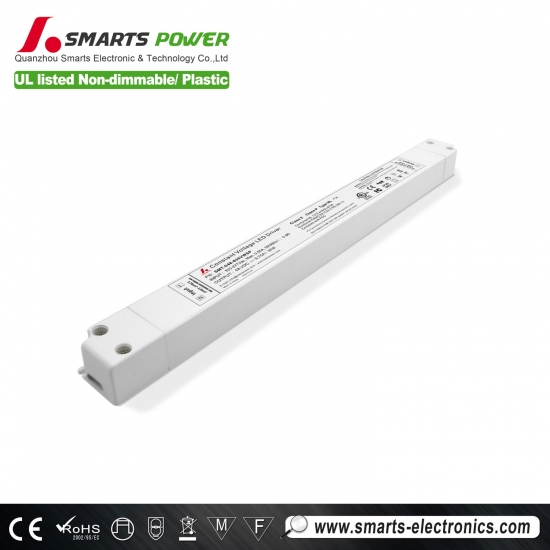

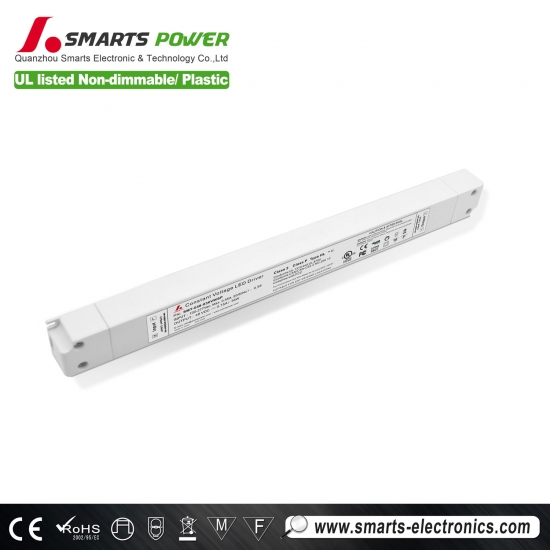

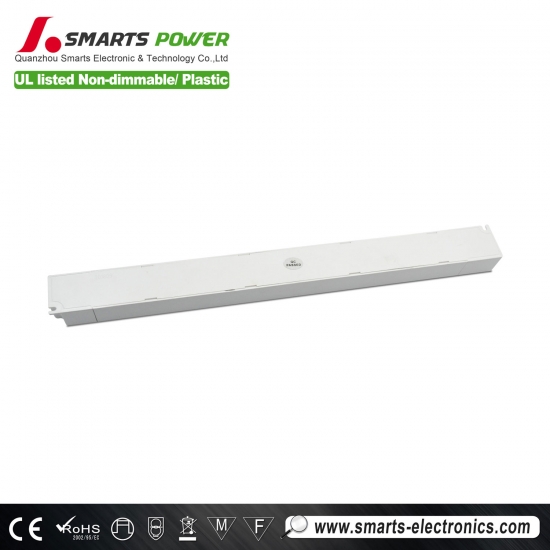

SMT-048-036VWSP is super slim IP20 non-dimmable ac dc power supply for led mirror lighting. It is 48Vdc 36W slim power supply with CE listed 7 years warranty.
Parameter of ac dc power supply
model |
SMT-012-036VWSP |
SMT-024-036VWSP |
|
Output |
DC Voltage |
12VDC |
24VDC |
|
Voltage Accuracy |
±5% |
±5% |
|
Rated current |
3.0Amp |
1.5Amp |
|
Rated power |
36W |
36W |
|
Voltage Tolerance |
±0.5V |
|
|
Voltage Regulation |
±0.5% |
|
|
Load Regulation |
±1% ±1% |
|
Input |
Voltage Range |
200-240 VAC |
|
|
Frequency Range |
47~63HZ |
|
|
Power Factor ( Typ.) |
0.97@230VAC |
|
|
THD(Typ.)@ full load |
<15%@120VAC <20%@230VAC <20%@277VAC |
|
|
Full Load Efficiency(Typ.) |
82%@120VAC ; 83%@230VAC; 84%@ 277VAC |
|
|
AC Current(Typ.) |
7A, 50%, 420us @120VAC ; 30A,50% 90us@230VAC; 12A,50%480us@277VAC
12A,50%480us@277VAC |
|
|
Leakage current |
<0.50mA |
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault condition is removed. |
|
|
Over Loading |
≤120% shut down o/p voltage, re-power on to recover |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling.
|
|
Environment |
Working TEMP. |
-40~+60℃ |
|
|
Working Humidity |
20~90%RH,non-condensing |
|
|
Storage TEM.,Humidity |
-40~+80℃,10~95%RH |
|
|
TEMP.coefficient |
±0.03%/℃(0~50℃) |
|
|
Vibration |
10~500Hz,2G 10min./1 cycle,period for 60min. each along X,Y,Z axes |
|
Safety&EMC |
Safety standards |
EN61347-1 EN61347-2-13 |
|
|
Withstand voltage |
I/P-O/P:3.75KVAC |
|
|
Isolation resistance |
I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|
|
EMC EMISSION |
Compliance to EN55015,EN61000-3-2 (≥60%load) |
|
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,11, EN61547, light industry |
|
Others |
Weight |
0.20Kg |
|
|
Size |
260*32*18mm (L*W*H) |
|
|
packing |
50PCS/CTN
|
|
Notes |
1. All parameters NOT specially mentioned are measured at 110VAC, 277VAC input , Rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . 3. The power supply is considered as a component that will be operated in combination with final Equipment. Since EMC performance will be affected by the complete installation,the final equipment manufactures must be-qualify EMC Directive on the complete installation again. |
||
Label |
|

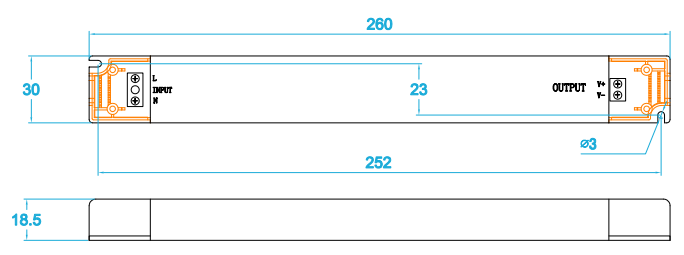

Mechanical Specification
² Input:18AWG Black and White to be connected to AC L and N ,Green wire go ground,
² Output: Red is(Possitive side +),Black is(Negative side -)
