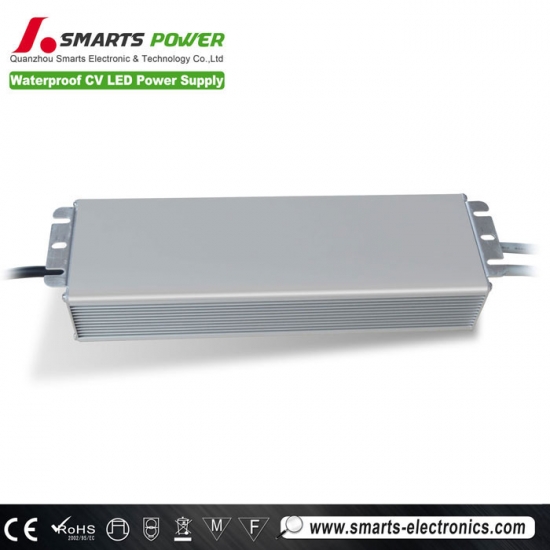

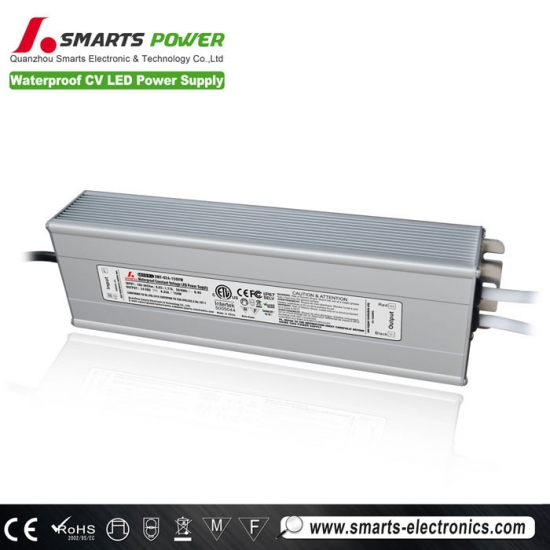

Non-dimmable LED Driver

waterproof material transformer 230v 220V 48v 150w

48v 150w constant voltage transformer
  • item no.:

    SMT-048-150VW
  • lead time:

    about 7 working days for samples
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T Paypal Western Union
  • Input Voltage:

    100-265V
  • Output Voltage:

    48VDC
  • Output Current:

    3.125A
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL CE ROHS
  • Warranty:

    2 years
inquiry now
product details

Product Item:waterproof material transformer 230v 220V 48v 150w



 SPECIFICAION
MODEL SMT-012-150VW SMT-024-150VW SMT-036-150VW
OUTPUT DC VOLTAGE 12V 24V         36V
RATED CURRENT 12.5A 6.25A         4.16A
CURRENT RANGE 0~12.5A 0~6.25A         0~4.16A
RATED POWER 150W 150W         150W
RIPPLE&NOISE(max) 150mV 150mV         150mV
VOLTAGE TOLERANCE ±0.5V ±0.5V         ±0.5V
SETUP RISE TIME 80ms/110VAC, 220VAC
HOLD UP TIME(Typ.) 60ms/110VAC, 220VAC
INPUT VOLTAGE RANGE 90~135VAC / 170~265VAC
FREQUENCY RANGE 50~60Hz
EFFICIENCY(Typ.) >83% >84% >83%
AC CURRENT(Typ.) 1.85A/110VAC, 220VAC
INRUSH CURRENT (Typ.) COLD START 50A/110VAC, 220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+55℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS CE Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver





 NOTE


1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.

2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor.

3.Tolerance:includes set up tolerance,line regulation and load regulation.



 Features


1.IP67 design for indoor or outdoor installations
2.Protections:Short circuit/Overload/Over temperature
3.Cooling by free air convection
4.100% full load burn-in test
5.Suitable for LED lighting
6.Products through CE,RoHS Certification

7.2 years warranty



 What Service we can supply?


All inquiries will be replied within 24 hours

Professional manufacturer,welcom to visit our website

OEM/ODM avaliable:
A.Print logo on our product;

B. Customized specification;


After Sales-Service:
A. All products will have 100% burn-in test and strictly quality test before shipping;

B. Fast Delivery: 3-7days for samples, 15-20 days for bulk production;


High efficiency,long life span,reasonable&competetative price,fast lead time;


We have our engineer team, if you have any question about your LED applications, let us know freely.



 Frequently Asked Questions


Q1. What's the trade terms you can do??
A1: We accept EXW,FOB..(Optional)

Q2. What's shipping mode can we choose?
A2: Express, Ocean and air transportation (optional).

Q3. What's the MOQ?
A3: Our MOQ is 1pcs. better price for large quantity;

Q4. What can you do if the product is broken?
A4: We promise to replace new ones to you if there is any defective happen during the warranty period.

Q5. Can i get products with my own logo??
A5: Sure, you can, MOQ is 500pcs.



Q6. Can i get a sample for testing??
A6: Sure, but sample fees should be charged on your account.

Q7. What's the mormal lead time??
A7: 7 working days for samples, 15 working days for mass production.

Q8. What's the payment conditon?
A8: T/T in advance or 30% deposit and 70% before delivery (optional)

Q9. What's the Payment do you have?
A9: We accept payment be sent via T/T, L/C, Trade Assurance, WESTERN UNION, PAYPAL.
