Non-dimmable LED Driver

electronic high power led light Non-Dimmable Driver

The 150W Electronic 100-265VAC Non-Dimmable led light driver is the perfect solution for any residential or commercial application.
  • item no.:

    SMT-024-150VW
  • lead time:

    about 7 working day
  • product orgin:

    China
  • brand:

    SMARTS
  • shipping port:

    Xiamen
  • payment:

    T/T, Paypal, Western Union, Creadit Card
  • Input Voltage:

    100-265v ac
  • Output Voltage:

    12v & 24v
  • Output Current:

    6.25A
  • Working Mode:

    Constant Voltage
  • Certification:

    ETL/cETL CE Rohs
  • Warranty:

    3 Years
inquiry now download
product details

electronic high power led light Non-Dimmable Driver


The 150W Electronic 100-265VAC Non-Dimmable led light driver is the perfect solution for any residential or commercial application.

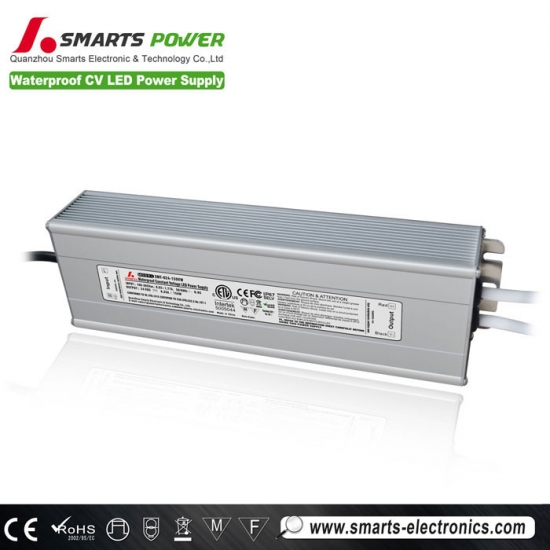

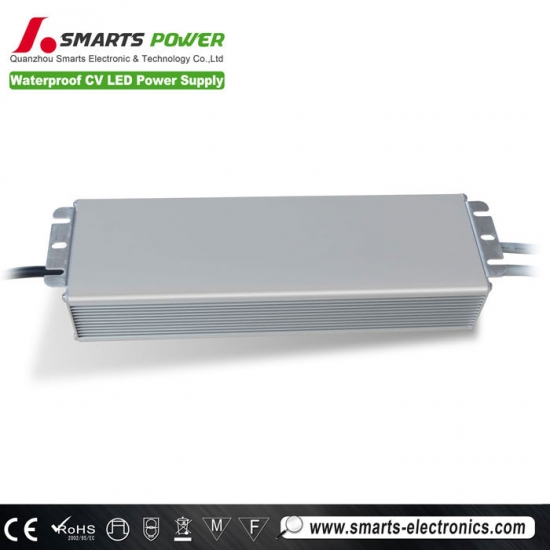

The Smarts Outdoor 24V DC Power Supply 150W (SMT-024-150VW) is robust cover and waterproof connections and cables, it is your best option to power any LED Strip kit that you want to place on your patio, poolside, gazebo, rv, trailer, boat, cottage or anything outside! It also includes two drilling holes to allow screwing it to a wall for a sturdier installation.


 SPECIFICAION
MODEL SMT-012-150VW SMT-024-150VW
OUTPUT DC VOLTAGE 12V 24V
RATED CURRENT 12.5A 6.25A
CURRENT RANGE 0~12.5A 0~6.25A
RATED POWER 150W 150W
RIPPLE&NOISE(max) 150mV 150mV
VOLTAGE TOLERANCE ±0.5V ±0.5V
SETUP RISE TIME 80ms/110VAC, 220VAC
HOLD UP TIME(Typ.) 60ms/110VAC, 220VAC
INPUT VOLTAGE RANGE 100-265VAC
FREQUENCY RANGE 50~60Hz
POWER FACTOR(Typ.) 0.95
EFFICIENCY(Typ.) ﹥87% ﹥87% ﹥87% ﹥87%
AC CURRENT(Typ.) 1.85A/110VAC, 220VAC
INRUSH CURRENT (Typ.) COLD START 50A/110VAC, 220VAC
PROTECTION Short circuit Protection type:recovers automatically after condition is removed
Overload overload protected@145-160% above peak rating
Over temperature Protection type:Shut down o/p voltage,re-power on to removed
ENVIRONMENT WORKING TEMP. -30~+55℃ (Refer to output load derating curve)
WORKING HUMIDITY 20~99% RH non-condensing(Waterproof)
STORAGE TEMP.,HUMIDITY -40~+80℃,10~99%RH
SAFETY&EMC SAFETY STANDARDS CE ETL Mark(EMC,LVD),IP67
WITHSTAND VOLTAGE I/P-O/P:1.5KVAC  IP-GND:1.5KVAC
EMC Test Standards EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006
NOTE 1.All parameters NOT specially mentoned are measured at 110VAC,220VAC input,rated load and 25℃ of ambient temperature.
2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel
    capacitor.
3.Tolerance:includes set up tolerance,line regulation and load regulation.

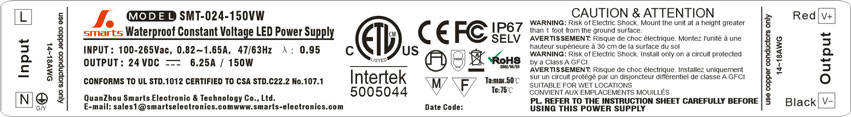

 Label  electronic high power led light Non-Dimmable Driver c140s055dt


Triac dimmable led driver
Dali dimmable led driver
0-10V led power supply
277v led driver


 Specification for led electronic driver


Part Number: SMT-024-150VW
Input Voltage: 90-265V AC (47-63Hz)
Output Voltage: 24V DC
Max Load: 150 Watts
Dimming: Non-Dimming
Max Ambient Temp.: -40°F to 194°F (-40°C to 90°C)

Avg. Efficiency: 93%

Dimensions LxWxH: 240*71*45mm
Ratings: ETL & cETL Recognized, CE, & IP67

Warranty: 3 Year Limited



electronic high power led light Non-Dimmable Driver

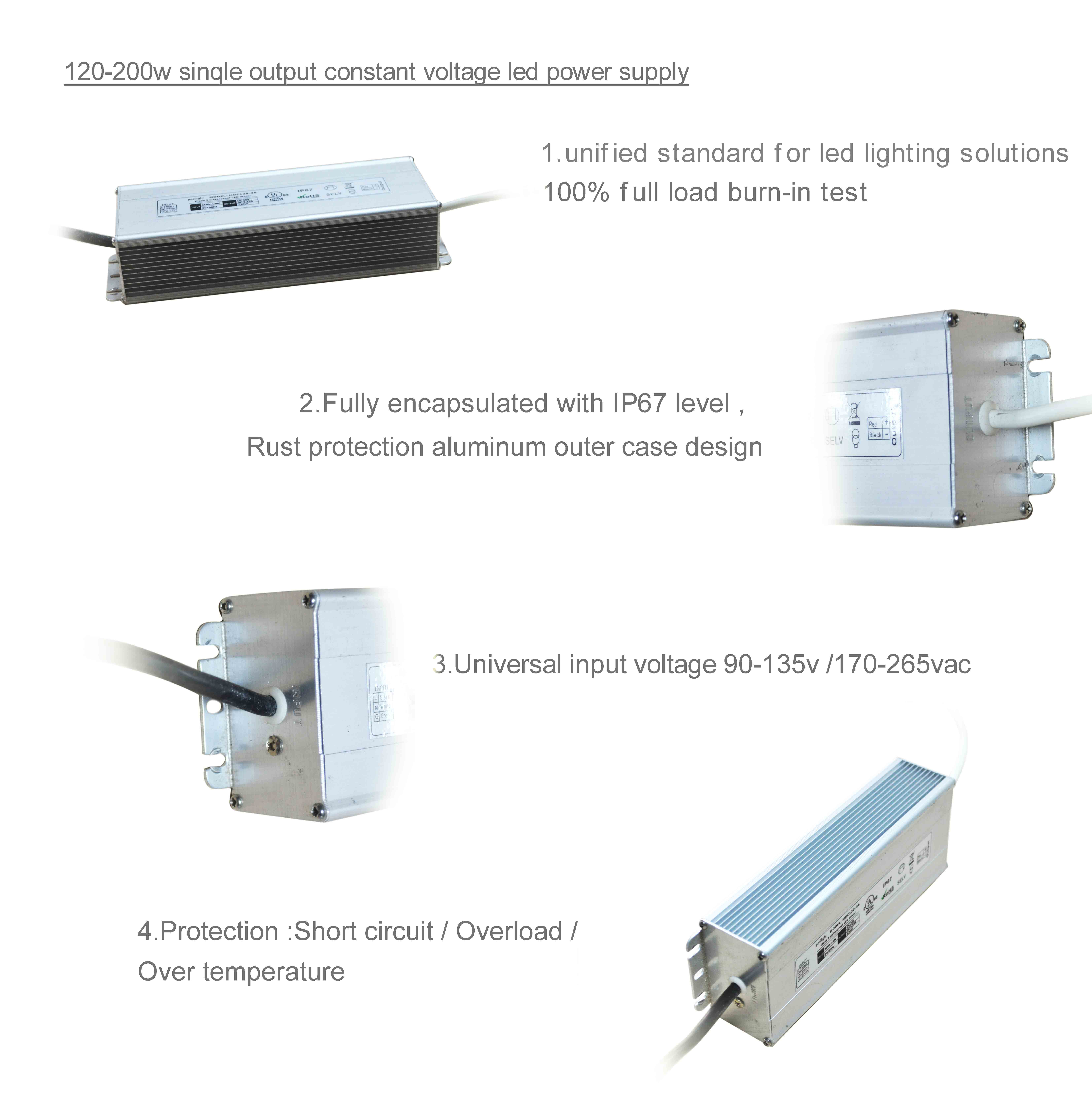

 Mechanical Specification for high power led driver


ETL ul waterproof 110v to 12v 24v dc transformer



 Delivery information for led light driver



Packing

Packing Way: 1 piece with one inner carton, 20 inner carton with one outer carton



Payment
Western Union, Paypal is the first option for samples payment.
T/T is for regular order payment. (30% deposit in advance, 70% before shipment)



Shipping
1. By air
Your order will be delivered by DHL, Fedex, UPS, TNT or EMS, It's up to you to choose your favorite express company. It normally takes 3~7 days to arrive at your destination.



2.By sea
Your regular orders will be shipped by vessel if total volume is large.
Shipments will be operated under FOB, EXW tradeterms
