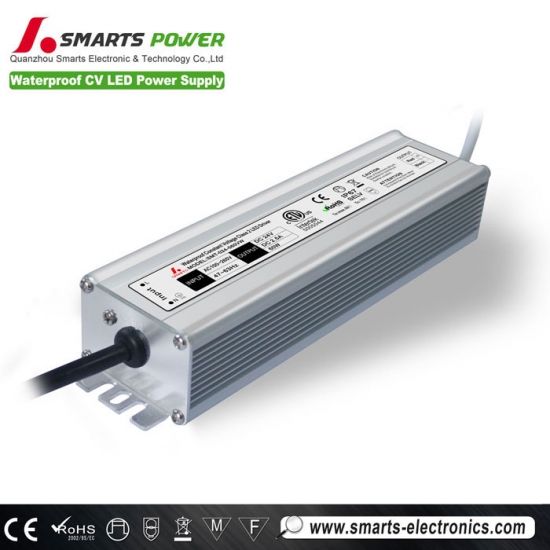

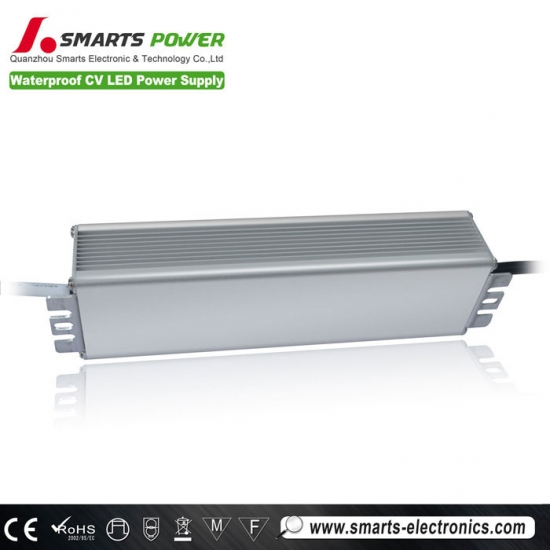

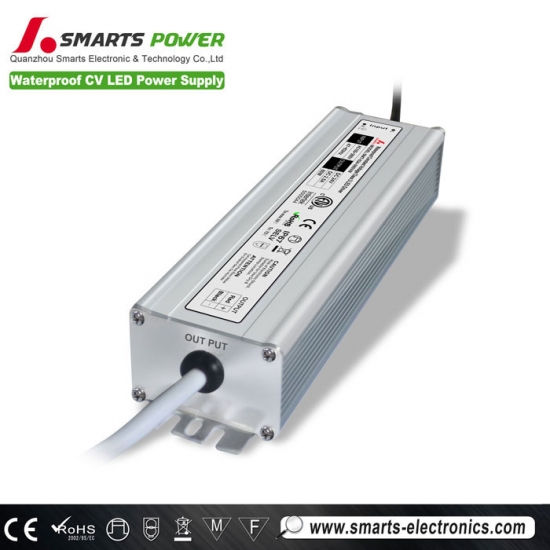

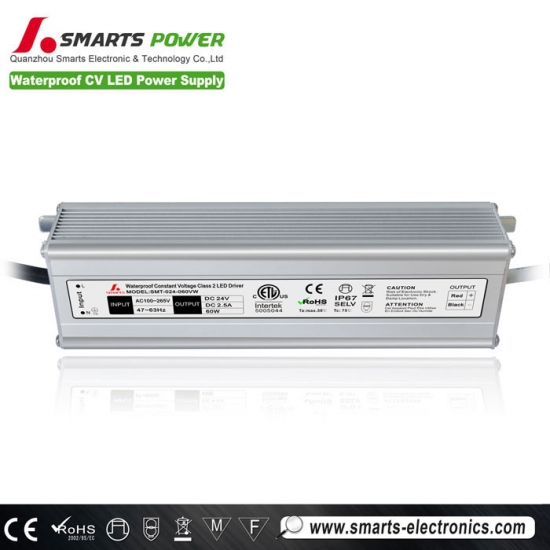

ultra thin constant voltage led power supply 24v 60w
ultra thin constant voltage led power supply 24v 60w is high quality 100-130/170-265V ac dc led driver, our market 70% are North American and European, the products are got ETL, CE, ROHS approval.
| SPECIFICAION | ||||||
| MODEL | SMT-012-060VW | SMT-024-060VW | SMT-036-060VW | |||
| OUTPUT | DC VOLTAGE | 12V | 24V | 36V | ||
| RATED CURRENT | 5.0A | 2.5A | 1.66A | |||
| CURRENT RANGE | 0~5.0A | 0~2.5A | 0~1.66A | |||
| RATED POWER | 60W | 60W | 60W | |||
| RIPPLE&NOISE(max) | 1.2V | 1.2V | 1.2V | |||
| voltage TOLERANCE | 12V±5% | 24V±5% | 36V±5% | |||
| SETUP RISE TIME | 80ms/110,220VAC | 80ms/110,220VAC | 80ms/110,220VAC | |||
| HOLD UP TIME(Typ.) | 60ms/110,220VAC | 60ms/110,220VAC | 60ms/110,220VAC | |||
| INPUT | VOLTAGE RANGE | 90~135/170~265Vac | 90~135/170~265Vac | 90~135/170~265Vac | ||
| FREQUENCY RANGE | 50~60Hz | 50~60Hz | 50~60Hz | |||
| POWER FACTOR(Typ.) | ||||||
| EFFICIENCY(Typ.) | >84% | >84% | >84% | |||
| AC CURRENT(Typ.) | 0.5A/110V,220VAC | 0.5A/110V,220VAC | 0.5A/110V,220VAC | |||
| INRUSH CURRENT (Typ.) | COLD START 30A/110,220VAC | |||||
| PROTECTION | Short circuit | Protection type:recovers automatically after condition is removed | ||||
| Overload | overload protected@145-160% above peak rating | |||||
| Over temperature | Protection type:Shut down o/p voltage,re-power on to removed | |||||
| ENVIRONMENT | WORKING TEMP. | -30~+50℃ (Refer to output load derating curve) | ||||
| WORKING HUMIDITY | 20~99% RH non-condensing(Waterproof) | |||||
| STORAGE TEMP.,HUMIDITY | -40~+80℃,10~99%RH | |||||
| SAFETY&EMC | SAFETY STANDARDS | CE Mark(LVD),IP67 | ||||
|
|
WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC IP-GND:1.5KVAC | ||||
|
|
EMC Test Standards | EN55015:2006;EN61547:1995+2000;EN61000-3-2:2006 | ||||
|
|
EN61000-3-3:1995+A2:2005;EN61346-1:2001;EN61347-2-13:2006 | |||||
|
NOTE |
1.All parameters NOT specially mentoned are measured at 110VAC, 220VAC input, rated load and 25℃ of ambient temperature. 2.Ripple&noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf&10uf parallel capacitor. 3.Tolerance:includes set up tolerance,line regulation and load regulation. |
|||||
| Label |
 |
|||||
 |
 |
 |
 |
 |
|
Features of constant voltage power supply
- High efficiency,save energy ,protected environment.
- High stability and low ripple, increase light efficiency and decrease light attenuation.
- Meet to safety standard and EMC
- Assure LED stability long lift and light efficiency by constant voltage.
- Integrity protection,over loading, over voltage ,over current.
- 8Hrs and 100% full load burn-in test.
Environment of power supply 24v 60w
- Working Temperature : -25 ~ +50°C
- Working Humidity : 20 ~ 90% RH non-condensing
- Storage Temp. , Humidity : -40 ~ +80°C , 10 ~ 95% RH
- TEMP. Coefficient : ±0.03%/°C (0 ~ 50°C)
- Vibration : 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
Safety
- Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529 , IP67 approved
- Withstand Voltage : I/P-O/P: 3000KVAC
- Isolation Resistance : I/P-O/P:100M Ohms/500VDC
