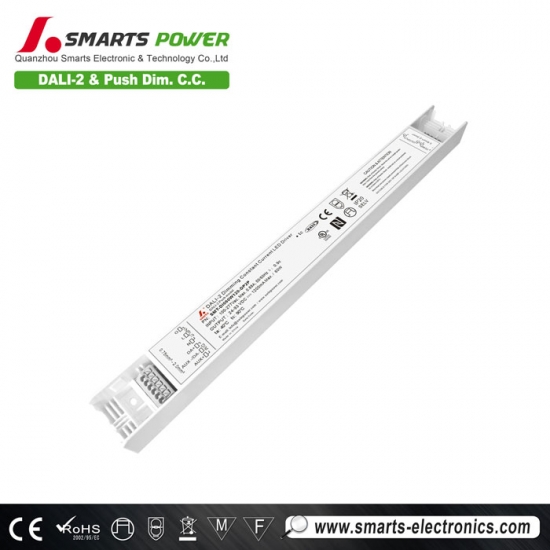

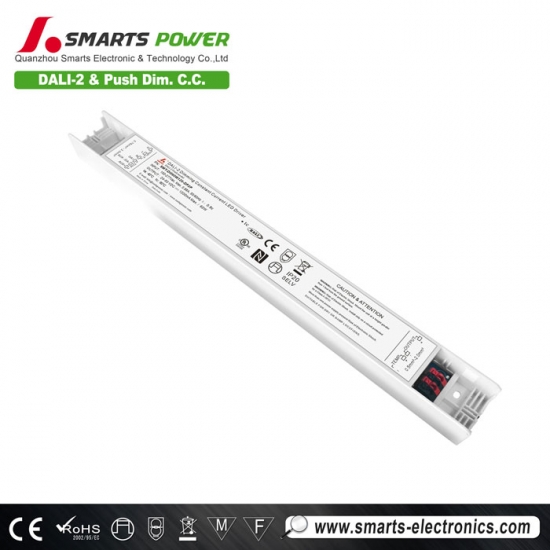

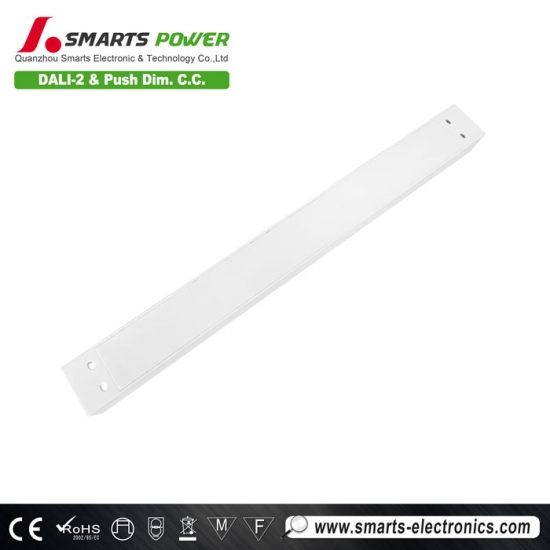

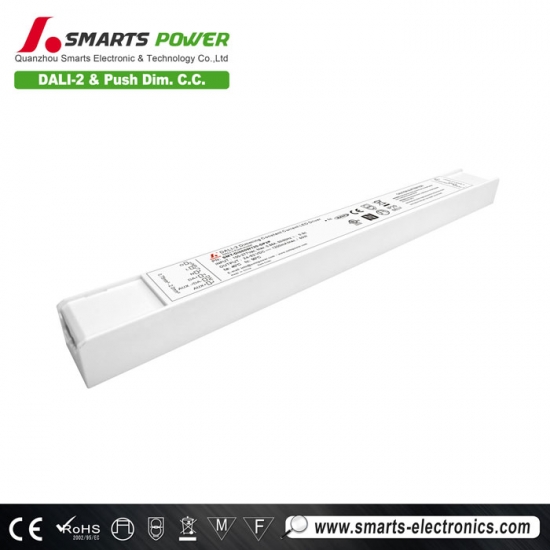

UL listed 120ma-1200ma constant current DALI-2 & PUSH dimmable led driver manufacture
100-277vac input voltage range DALI-2 & PUSH dimmable led driver 60W dimming mode 0.1~100% ultra-deep dimming. With high efficiency, high power factor and high stability performance. 7-year warranty
Specification
| Model | SMT-DI060W120-DP2P | |
| Certificate | UL / FCC / CE / RoHS / Reach / DALI / NFC | |
| Output | Rated current | 120mA-1200mA (multiple current for choice freely by ProNFC) |
| DC Voltage | 24V-93V | |
| No-load voltage | 98Vmax | |
| Voltage Tolerance | Output current ± 10mA for ≤ 300mA, ± 20mA for ≥ 300mA, and ± 30mA for ≥ 1000mA | |
| Rated power | 60Wmax | |
| Line Regulation | <0.5% | |
| Load Regulation | <0.5% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor (Typ.) | PF≥0.94 | |
| No load power (Max) | <1.5W | |
| Standby power (Max) | <0.5W | |
| THD(Typ.) @ full load | ≤15% | |
| Efficiency @ full load | ≥88%@120VAC 60Hz ≥89%@230VAC 50HZ ≥89%@277VAC 60HZ | |
| AC Current (Max.) | 0.75A | |
| Inrush Current (Typ.) | 28.7A, 204us@50%Ipeak@120V 55.2A, 98us@50%Ipeak@230V 66.0A, 220us@50%Ipeak@2770V | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, recovers automatically after fault condition is removed |
| Over voltage | Hiccup or constant power mode, reboots automatically after fault condition is removed | |
| Over temperature |
Ambient temp. over 55 ± 5℃, output current will be reduced to 50%; Ambient temp.Over 45 ± 5℃,recovers automatically. Ambient temp.over 75 ± 5℃, output current will be reduced to 0%; Ambient temp.Over 45 ± 5℃,recovers automatically. |
|
| Environment | Working TEMP | -40~+60℃ (see below derating curve) |
| Working Humidity | 20 -90%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 2G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13(EU) & UL8750 (US) |
| Withstand voltage | I/P-O/P:3.75KVAC (EU) & I/P-O/P:1.8KVAC (US) | |
| Strobe test standard | IEEE 1789 Flicker free | |
| lightning surge | DM:2KV | |
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |
| EMC Emission | EN55015 EN61000-3-2,3(EU) & FCC Part15 Subpart B; ANSI C63.4:2014(US) | |
| Others | Net Weight | 0.38KG |
| Dimension | 314*30*21.7mm (L*W*H) | |
| Packing | ***pcs /CTN | |
| Notes |
1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. 2. To extend the driver's using life, please reduce the loading at lower input voltage . |
|
 |
 |
 |
 |
Mechanical Specification
1. Input cable SJOW 3*18AWG: the Black cable to (L), the White cable to (N), and the Green cable to (G).
2. Output cable SJOW 2*18AWG: Red cable (+) to LED Positive side(+), Black cable (-) to LED Negative side (-).
3. Dimming cable SJOW 3*18AWG: Purple (DA+), Pink (DA-/PUSH/N) and Brown(PUSH/L).
4. Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
5. This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
Dimming operation
