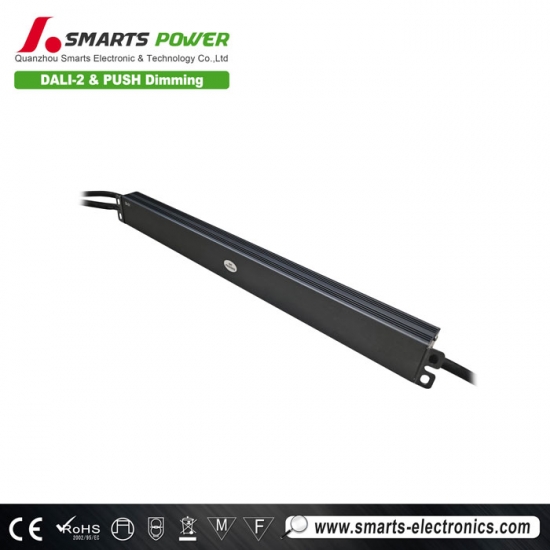

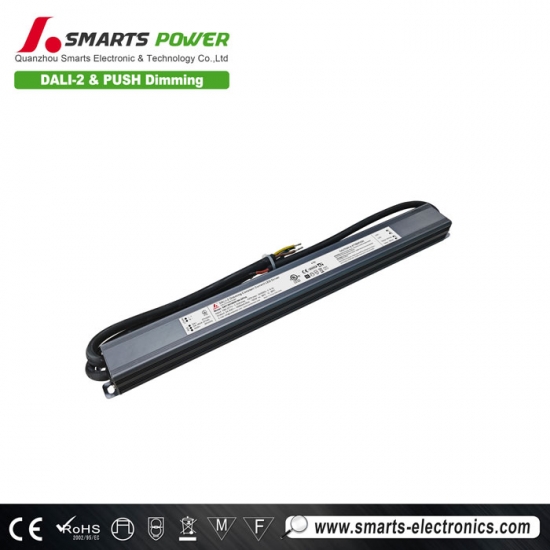

12v-54v dali-2 & push intelligent dimmable constant current 100W led driver power supply
100W DALI-2 & PUSH intelligent dimmable LED driver Universal input voltage range 100-277VAC. NFC smart programming module can realize single lamp single control, group and scene dimming functions. Meet energy-saving standards. Save electricity costs.
Specification
| Model | SMT-DI100W160-DP2A | |
| Certificate | UL / FCC / CE / RoHS / Reach / NFC | |
| Output | Rated current | 160mA-1600mA (multiple current for choice freely by ProNFC) |
| DC Voltage | 24V-93V | |
| Rated power | 100Wmax | |
| Voltage Tolerance | ±30mA | |
| No-load voltage | 98Vmax | |
| Line Regulation | <0.1% | |
| Load Regulation | <0.1% | |
| Input | Voltage Range | 100-277VAC |
| Frequency Range | 47 - 63Hz | |
| Power Factor @ full load | ≤0.95 | |
| THD(Typ.) @ full load | <10% | |
| Efficiency @ full load | >88.5%@120VAC 60Hz >90.5%@230VAC 50HZ >90.5%@277VAC 60HZ | |
| No load power (Max) | <3W | |
| Standby power (max.) | <0.5W | |
| AC Current (Max.) | <1.33A | |
| Inrush Current (Typ.) | 29.6A, 412us@50%Ipeak120V 56.8A, 120us@50%Ipeak230V 68.4A, 580us@50%Ipeak277V | |
| Leakage current | <0.5mA | |
| Protection | Short Circuit | Hiccup mode, restarts automatically after fault condition is removed |
| Over Load | ≤120% Hiccup mode or Constant power mode, recovers automatically after fault condition is removed | |
| Over temperature |
Ambient temp. over 55 ± 5℃, output current will be reduced to 50%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. Ambient temp.over 75 ± 5℃, output current will be reduced to 0%; Ambient temp.Over 45 ± 5℃, recovers automatically after temp. drops. |
|
| Environment | Working TEMP | -40~+60℃ (see below derating curve) |
| Working Humidity | 20 -95%RH non-condensing | |
| Storage TEM.,Humidity | -40 - +80℃,10 - 95% RH | |
| TEMP.coefficient | ±0.03%/℃(0 - 50℃) | |
| Vibration | 10~500Hz, 5G 12min./1 cycle, period for 72min. each along X,Y,Z axes | |
| Safety & EMC | Safety standards | EN61347-1 EN61347-2-13 (EU) & UL8750 (US) |
| Withstand voltage |
I/P-O/P:3.75KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC (EU) I/P-O/P:1.8KVAC I/P-FG:1.8KVAC O/P-FG:1.8KVAC (US) |
|
| Isolation resistance | I/P-O/P:100MΩ / 500VDC / 25℃ / 70%RH | |
| EMC Emission | EN55015 EN61000-3-2,3 (EU) & FCC Part 15, Subpart B; ANSI C63.4:2014 (US) | |
| EMC Immunity | EN61000-4-2,3,4,5,6,11 EN61547 (EU) | |
| Lightning surge | DM:2KV CM:4KV | |
| Strobe test standard | IEEE 1789 flicker-free | |
| Others | Net Weight | 0.6KG |
| Dimension | 365.8*38.5*23.6mm (L*W*H) | |
| Packing | **** pcs /CTN | |
| Notes |
1. All parameters NOT specially mentioned are measured at rated load and 25℃of ambient temperature. 2. To extend the driver's using life , please reduce the loading at lower input voltage . |
|
 |
 |
 |
 |
Mechanical Specification
1. Input cable SJOW 3*18AWG: the Black cable to (L), the White cable to (N), and the Green cable to (G).
2. Output cable SJOW 2*18AWG: Red cable (+) to LED Positive side(+), Black cable (-) to LED Negative side (-).
3. Dimming cable SJOW 3*18AWG: Purple (DA+), Pink (DA-/PUSH/N) and Brown(PUSH/L).
4. Please make sure your connect these correctly otherwise your product will not function correctly and could be damaged.
5. This product is also suitable for temperature control. It is recommended to use NTC for external temperature sensors, and the resistance value when triggering protection is between 1 Ω -20K Ω.
Dimming operation
