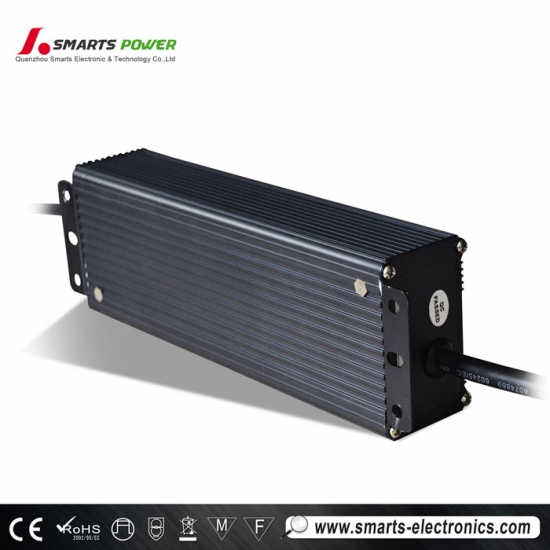

This line of Smarts Electronics’s Outdoor LED Drivers is a highly affordable and reliable hard wired LED Driver Power Supply that you can safely put outdoors! It is your best option to power any LED Lights with its robust cover and waterproof connections and cables! It also includes an installation bracket on each side to allow screwing it to a wall for a sturdier installation.
The iP67 100w led driver provides a constant Voltage of 12V DC and feature two distinct ports for input and output: the 100-277 AC input (black wire) has 3 wire connections: one for the live wire (black), one for the neutral wire (white) and one for the ground (green). The 24V DC output (white wire) features 2 connections: one positive (red) and one negative (black).
Specification for 100w led driver
|
model |
SMT-012-100VWN |
SMT-024-100VWN |
|
|
Output |
DC Voltage |
12V |
24V |
|
Voltage Accuracy |
±0.5V |
±0.5V |
|
|
Rated current |
8.00A |
4.16A |
|
|
Rated power |
100W |
100W |
|
|
Input |
Voltage Range |
100~277V AC |
|
|
Frequency Range |
47～63HZ |
||
|
THD(Typ.) @full load |
<15%@120VAC <20%@230VAC <20%@277VAC |
||
|
Power Factor ( Typ.） |
0.99@120VAC, 0.97@230VAC 0.95@277VAC |
0.99@120VAC, 0.97@230VAC 0.97@277VAC |
|
|
Full Load Efficiency(Typ.) |
83%@120VAC, 85%@230VAC,87%@277VAC |
82%@120VAC, 85%@230VAC 88%@277VAC |
|
|
AC Current（Typ.） |
1.52A/110VAC |
||
|
Inrush Current （Typ.） |
20A, 50%, 1.6ms@120VAC; 30A,50% 200us@230VAC; 25A,50%,1.2ms@277VAC |
||
|
Leakage current |
﹤0.5mA/110V |
||
|
Protection |
Short Circuit |
Hiccup mode, recovers automatically after fault conditionis removed. |
|
|
Over temperature |
100℃±10℃ shut down o/p voltage, automatically recover after cooling. |
||
|
Over Loading |
≤120% constant current limiting, auto-recovery |
||
|
Over voltage |
≦140VAC(90~135V) , ≦270VAC(170~265V) |
||
|
Environment |
Working TEMP. |
-40～+60℃ |
|
|
Working Humidity |
20～90%RH,non-condensing |
||
|
Storage TEM.,Humidity |
-40～+80℃，10～95%RH |
||
|
TEMP.coefficient |
±0.03%/℃（0～50℃） |
||
|
Vibration |
10～500Hz，2G 10min./1 cycle，period for 60min. each along X,Y,Z axes |
||
|
Safety&EMC |
Safety standards |
UL8750 |
|
|
Withstand voltage |
I/P-O/P:1.90KVAC |
||
|
Isolation resistance |
I/P-O/P：100MΩ/500VDC/25℃/70%RH |
||
|
EMC EMISSION |
FCC Part 15 B |
||
|
EMC IMMUNITY |
Compliance to EN55015; EN61000-4-2,3,4,5,6,8,11,EN61547 Alight industry level （surge4KV） |
||
|
Others |
Net Weight |
1.08Kg |
|
|
Size |
230*70*43mm（L*W*H） |
||
|
packing |
329*279*176mm , 10PCS/ctn |
||
|
Notes |
1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature. 2. Tolerance:includes set us tolerance,line regulation and load regulation . |
||
|

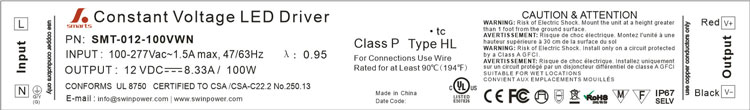

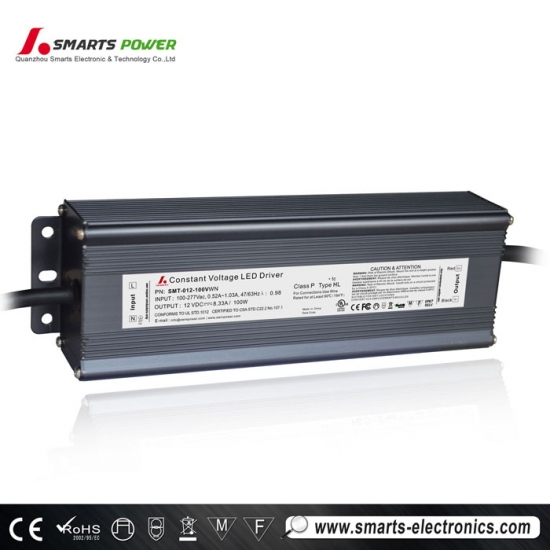

Label |
 |
||
 |
 |
 |
 |

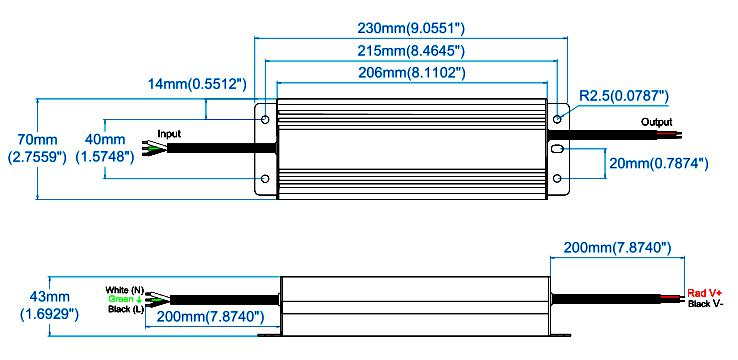

Mechanical Specification for led driver power supply

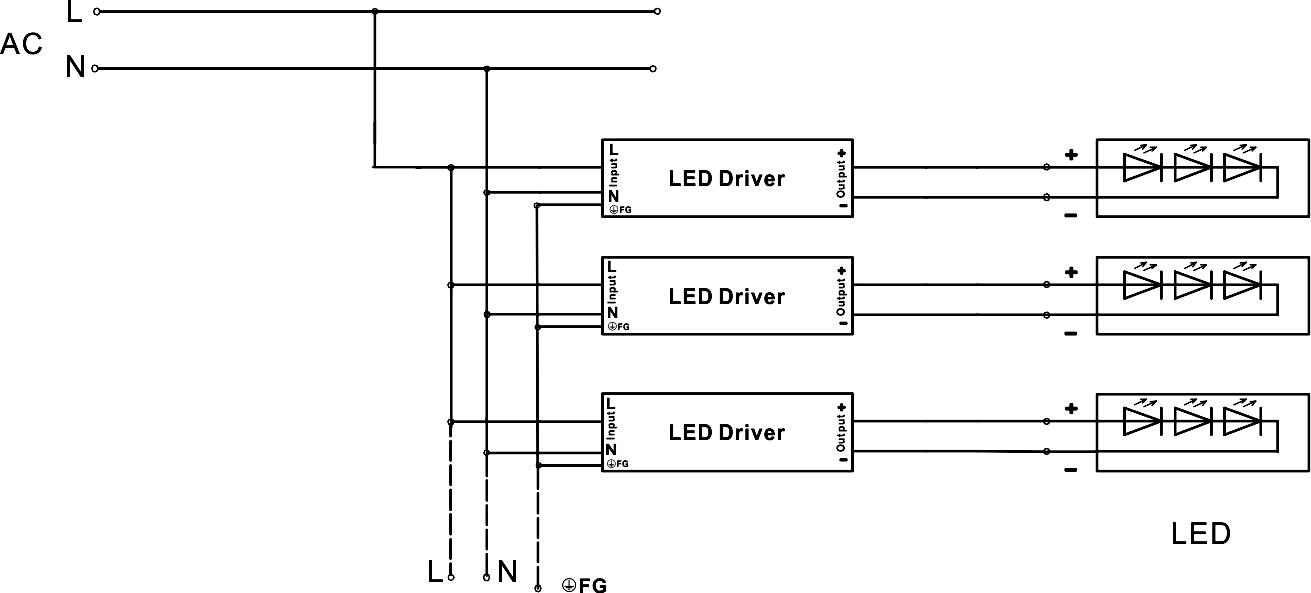

Connecting Diagram for outdoor led driver
