Non-dimmable LED Driver

277v led driver class 2 dc ac dimmable constant voltage power supply 24v 80w

SMT-024-080VDH is a 24v 80W dimming led power supply and is a class 2 type. In addition, its input voltage is as high as 277v.
  • item no.:

    SMT-024-080VDH
  • brand:

    SMARTS
  • Input Voltage:

    100-277VAC
  • Output Voltage:

    24V
  • Output Current:

    3.33A
  • Working Mode:

    CV
  • Certification:

    UL
  • Warranty:

    7
inquiry now
product details

277v led driver class 2 dc ac dimmable constant voltage power supply 24v 80w

SMT-024-080VDH is a 24v 80W dimming led power supply and is a class 2 type. In addition, its input voltage is as high as 277v. At the same time, it is still a seven-year warranty with UL certification.


  Specification


model

SMT-012-080VDH

SMT-024-080VDH

Output

DC Voltage

12V

24V



Voltage Accuracy

±0.5V



Rated current

6.66A

3.33A (class 2 type)



Rated power

80W

80W

Input

Voltage Range

100~277V AC



Frequency Range

4763HZ



Power Factor ( Typ.

PF≧0.95/110V , PF≧0.95/277V



Full Load Efficiency(Typ.)

86%@120VAC   88%@277VAC



AC CurrentTyp.

1.3A @110VAC  0.72A/170VAC  0.530A/220VAC  0.427A/277VAC



Inrush Current Typ.

1.0A/120VAC  0.63A/170VAC  0.50A/220VAC  0.41A/277VAC

1.0A/120VAC  0.63A/170VAC  0.50A/220VAC  0.41A/277VAC



Leakage current

0.40mA/110V,277VAC

Protection

Short Circuit

Hiccup mode, recovers automatically after fault condition is removed.



Over voltage

140VAC(90~135V) , ≦270VAC(170~265V)

Environment

Working TEMP.

-40+60℃



Working Humidity

2090%RH,non-condensing



Storage TEM.,Humidity

-40+80℃1095%RH



TEMP.coefficient

±0.03%/℃050℃



Vibration

10500Hz2G 10min./1 cycleperiod for 60min.

each along X,Y,Z  axes

Safety&EMC

Safety standards

UL8750+UL1310



Withstand voltage

I/P-O/P:3.75KVAC



Isolation resistance

I/P-O/P:100MΩ/500VDC/25℃/70%RH



EMC EMISSION

FCC Part 15 B

Others

Weight

1.3Kg



Size

220*93*41mm (L*W*H)



packing

10PCS/CTN 385*335*200mm     20PCS/CTN

Notes

1. All parameters NOT specially mentioned are measured at 110V/277VAC input , rated load and 25℃of ambient temperature.

2. Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire terminated with a 0.1uf &47uf parallel capacitor.

3.  Tolerance:includes set us tolerance,line regulation and load regulation .

Click Send Email for Details
Click skpye 24 hours Online Reply
Scan to start our communication
Back to top



  Application


Our products are widely used in various industries, such as indoor LED illuminating lights, LED

Neon, LED urban Decoration,LED Lighting Advertising,LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.

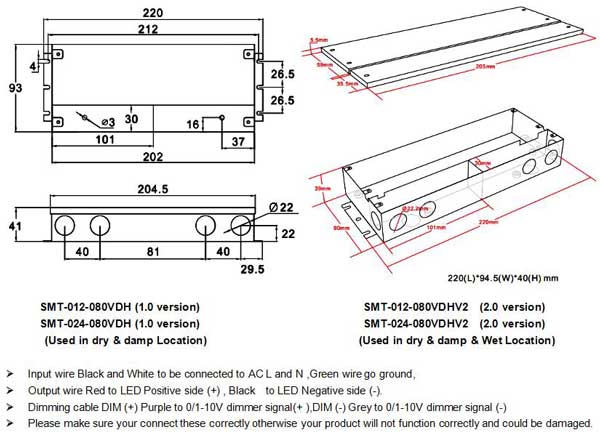

  Mechanical Specification
